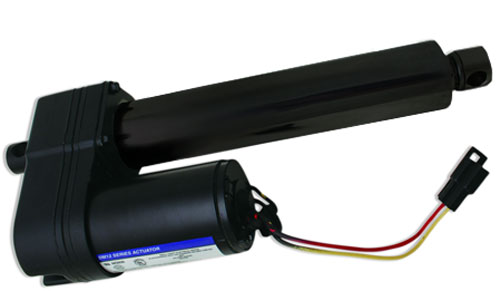

4 Inch Stroke Electric Hatch Actuator

4 Inch Stroke Electric Hatch Actuator

  • 4" Stroke.
  • Overall Length Closed is 11-7/8".
  • Strong eyelet mount allows a wide range of angles for easy installation.
  • Sealed precision die cast housing.
  • Black coating offering a stunning appearance with supreme corrosion resistance.
  • A 12-volt severe duty motor offers excellent load capacity and reliability.
  • 400 LB maximum load capacity.
MSRP: $336.77
Your Price: $318.99
You Save: 5% off MSRP!

Videos On This Product:
Additonal Info On This Product:

4" Electric Hatch Actuator

(Overall Length Closed is 11-7/8")

These Hatch Actuators use a time proven design while blending significantconstruction and performance advantages. These units use severe duty 12V DCmotors to provide a 20% faster actuation than the competitors. With a400 LB maximum load capacity you can be assured your getting the best you canbuy.

Features:

  • Strong eyelet mount allows a wide range of angles for easy installation
  • Sealed precision die cast housing
  • A 12-volt sever duty motor offers excellent load capacity and reliability

Notes:

  • A 30 amp, type AGC fuse must be installed between the power source and actuator switch to protect against overcurrent.
  • Actuator "on time" must not exceed 25%. Example: If "on time" is 25 seconds, then the actuator must remain off for 75 seconds before being operated again. Exceeding a 25% duty cycle can lead to overheating and may result in hazardous conditions.
  • Actuator is factory lubricated for life and no additional lubrication is required for maintenance.
  • The actuator incorporates a slip clutch to protect against overloading. The clutch is preset at the factory to slip if the load exceeds the rated load.
Specifications On This Product:

Dimensions:

Overall Length Closed: 11-7/8"
Mounting Hole Center to Center Closed: 10.32"
Mounting Hole Center to Center Open: 14.32"
Width: 3"
Height (Width of Ram and Motor): 5.80"
