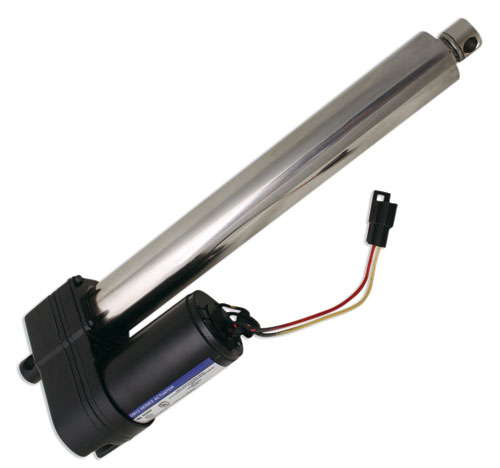

16 Inch Stroke Electric Hatch Actuator

16 Inch Stroke Electric Hatch Actuator

  • 16" Stroke.
  • Overall Length Closed is 22-3/8".
  • Strong eyelet mount allows a wide range of angles for easy installation.
  • Highly polished stainless steel tube offers a beautiful appearance and the very best in corrosion resistance.
  • Sealed precision die cast housing.
  • A 12-volt severe duty motor offers excellent load capacity and reliability.
  • 400 LB maximum load capacity.
MSRP: $450.00
Your Price: $395.99
You Save: 12% off MSRP!

Videos On This Product:
Additonal Info On This Product:

16 Inch Electric Hatch Actuator
(Overall Length Closed is 22-3/8")

TheseHatch Actuators use a time proven design while blending significantconstruction and performance advantages. These units use severe duty 12VDC motors to provide a 20% faster actuation than the competitors. Eachof these units use a beautifully polished stainless (except 4" & 8"Black only) and black coating offering a stunning appearance withsupreme corrosion resistance. With a400 LB maximum load capacity you canbe assured your getting the best you can buy.

Features:

  • Strong eyelet mount allows a wide range of angles for easy installation
  • Highly polished stainless steel tube offers a beautiful appearance and the very best in corrosion resistance.
  • Sealed precision die cast housing
  • A 12-volt sever duty motor offers excellent load capacity and reliability

Notes:

  • A 30 amp, type AGC fuse must be installed between the power source and actuator switch to protect against overcurrent.
  • Actuator "on time" must not exceed 25%. Example: If "on time" is 25 seconds, then the actuator must remain off for 75 seconds before being operated again. Exceeding a 25% duty cycle can lead to overheating and may result in hazardous conditions.
  • Actuator is factory lubricated for life and no additional lubrication is required for maintenance.
  • The actuator incorporates a slip clutch to protect against overloading. The clutch is preset at the factory to slip if the load exceeds the rated load.
Specifications On This Product:

Dimensions:

Overall Length Closed: 22-3/8"
Mounting Hole Center to Center Closed: 22.32"
Mounting Hole Center to Center Open: 38.32"
Width: 3"
Height (Width of Ram and Motor): 5.80"
