This is a standard capacity system design for Mercruiser Chevy based 4.3/5.0L/5.7L (262, 305, and 350 CID) V6 and V8 sterndrive engine for model years 1985 thru 1999, with V-Belts or Serpentine belt with the low Stbd mounted alternator which ran up until about 1999.(see below for exceptions).

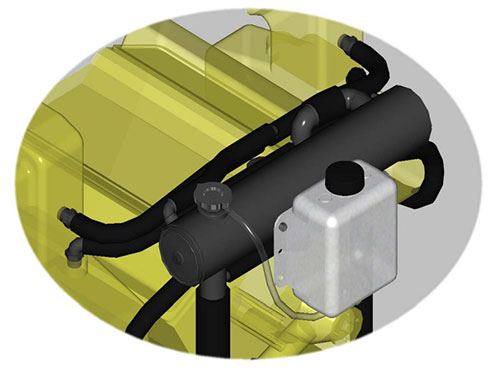

This Heat Exchanger utilizes a copper alloy high performance 6-pass shell and tube design that delivers superior cooling in an efficient and compact package. It has dual removable end covers for easy clean-out. The Installation Kit includes heavy-duty translucent plastic expansion tank, complete instructions, and all other components necessary to convert a raw water cooled engine to Freshwater Cooling. Some existing water hoses and hose clamps are reused. Heat exchanger, thermostat housing and mounting brackets are primed gray. Fasteners are zinc/cadmium plated or stainless steel. All hose clamps are stainless steel.
COOLING SYSTEM TYPE:
This kit is a “full” fresh water cooling [FWC] system; meaning that the engine block and exhaust manifolds are protected by the system. Exhaust elbows remain on the raw water system. System utilizes a unique, high performance heat exchanger. Our FWC systems are specially designed for the low capacity raw water pumps used on sterndrive engines.
MFH-5399 CONVERSION KIT FITS:
MerCruiser Engines:
200 (2BBL.) GM 305 V-8 1985 – 1986 (S/N# 6218462 – 0B525981)
200 (2BBL.) GM 305 V-8 1987 (S/N# 0B525982 – 0B774444)
228 (4BBL.) GM 305 V-8 1982 – 1984 (S/N# 6218462 – 0B525981)
230 (4BBL.) GM 305 V-8 1985 – 1986 (S/N# 6218462 – 0B525981)
230 (4BBL.) GM 305 V-8 1987 (S/N# 0B525982 – 0B773739)
230 MIE (4BBL.) GM 305 V-8 1981 – 1986 (S/N# 5907058 – 0B522505)
230 MIE (4BBL.) GM 305 V-8 1987 – 1995 (S/N# 0B522506 – 0B788151)
260 (2BBL.) GM 350 V-8 1982 – 1986 (S/N# 6218462 – 0B525981)
260 (2BBL.) GM 350 V-8 1987 (S/N# 0B525982 – 0B773304)
260 MIE GM 350 V-8 1981 – 1986 (S/N# 5907058 – 0B522505)
260 MIE GM 350 V-8 1981 – 1987 (S/N# 0B522506 – 0B788196)
350 MAG ALPHA (4BBL.) GM 350 V-8 1996 (S/N# 0F601000 – 0K001526)
350 MAG ALPHA (4BBL.) GM 350 V-8 1997 (S/N# 0K001527 – 0K999999)
350 MAG ALPHA EFI (GEN+) GM 350 V-8 1996 (S/N# 0F800300 – 0K001508)
350 MAG ALPHA EFI (GEN+) GM 350 V-8 1997 (S/N# 0K001509 – UP)
350 MAG ALPHA GM 350 V-8 1986 – 1987 (S/N# 0A635178 – 0B525981)
350 MAG ALPHA GM 350 V-8 1987 – 1995 (S/N# 0B525982 – 0F600999)
5.0L (2BBL.) GM 305 V-8 1988 – 1995 (S/N# 0B774445 – 0F600999)
5.0L (2BBL.) GM 305 V-8 1998 – 2001 (S/N# 0L015751 – 0M599999)
5.0L EFI GM 305 V-8 1998 (S/N# 0L012052 – 0L331630)
5.0L EFI GM 305 V-8 1998 (S/N# 0L331651 – 0L339999)
5.0L EFI GM 305 V-8 1999 – 2001 (S/N# 0L331631 – 0L331650)
5.0L EFI GM 305 V-8 1999 – 2001 (S/N# 0L340000 – 0M299999)
5.0L EFI GM 350 V-8 1999 – 2001 (S/N# 0L325977 – 0L325999)
5.0L EFI GM 350 V-8 1999 – 2001 (S/N# 0L331599 – 0L331991)
5.0L EFI GM 350 V-8 1999 – 2001 (S/N# 0L335716 – 0L335999)
5.0L EFI GM 350 V-8 1999 – 2001 (S/N# 0L340000 – 0M299999)
5.0L MIE (4BBL.)GM 305 V-8 1987 – 1995 (S/N# 0B522506 – 0B788151)
5.0LX (4BBL.) GM 305 V-8 1988 – 1995 (S/N# 0B773740 – 0F600999)
5.7 LX EFI (4BBL. – TBI) GM 350 V-8 1996 (S/N# 0F752400 – 0K001505)
5.7 LX EFI (4BBL. – TBI) GM 350 V-8 1997 (S/N# 0K001506 – 0K999999)
5.7 MIE GM 350 V-8 1997 (S/N# 0K040307 – 0K999999)
5.7L (2BBL.) GM 350 V-8 1988 – 1995 (S/N# 0B525982 – 0F600999)
5.7L (2BBL.) GM 350 V-8 1996 (S/N# 0F601000 – 0K001526)
5.7L (2BBL.) GM 350 V-8 1997 (S/N# 0K001527 – 0K999999)
5.7L (2BBL.) GM 350 V-8 1998 – 2001 (S/N# 0L010037 – 0M599999)
5.7L ALPHA EFI (TBI) GM 350 V-8 1995 (S/N# 0F355305 – 0F752389)
5.7L BRAVO EFI (TBI) GM 350 V-8 1995 (S/N# 0F225560 – 0F752399)
5.7L EFI (2BBL. – TBI) GM 350 V-8 1996 (S/N# 0F752400 – 0K001505)
5.7L EFI (2BBL. – TBI) GM 350 V-8 1997 (S/N# 0K001506 – 0K999999)
5.7L EFI GM 350 V-8 1998 (S/N# 0L010035 – 0L325976)
5.7L EFI GM 350 V-8 1998 (S/N# 0L326000 – 0L331598)
5.7L EFI GM 350 V-8 1998 (S/N# 0L331992 – 0L335715)
5.7L EFI GM 350 V-8 1998 (S/N# 0L336000 – 0L339999)
5.7L EFI MIE GM 350 V-8 1997 (S/N# 0K040300 – 0K261160)
5.7L MIE GM 350 V-8 1988 – 1993 (S/N# 0B788197 – 0F024999)
5.7L MIE GM 350 V-8 1994 – 1995 (S/N# 0F025000 – 0F622099)
5.7L MIE GM 350 V-8 1994 – 1995 (S/N# 0622151 – 0F746099)
5.7L MIE GM 350 V-8 1996 (S/N# 0F622100 – 0F622150)
5.7L MIE GM 350 V-8 1996 (S/N# 0F746100 – 0K040306)
5.7LX (4BBL.) GM 350 V-8 1996 (S/N# 0F601000 – 0K001526)
5.7LX (4BBL.) GM 350 V-8 1997 (S/N# 0K001527 – 0K999999)
5.7LX BRAVO EFI (GEN+) GM 350 V-8 1996 (S/N# 0F800300 – 0K001508)
5.7LX BRAVO EFI (GEN+) GM 350 V-8 1997 (S/N# 0K001509 – UP)
898 (2BBL.) GM 305 V-8 1983 – 1984 (S/N# 6218462 – 0B525981)
COOLING SYSTEM CAPACITY:
Will maintain coolant temperatures in the 160-170 F range using 160 F thermostat included in kit. System has cooling capacity safety margin higher than industry standards.
HEATER SYSTEM HOOKUP:
Heaters such as galley water heaters and cabin heaters are easily supplied by utilizing the cooling system bypass connections.
INSTALLATION TIME:
Average installation time is approximately four to six hours, assuming engine has normal accessibility. Allow additional time for filling and testing. Installation skills are typical of most do-it-yourself boat owners. Complete illustrated installation instructions are included in kit.
WARRANTY:
Two year warranty. For complete details see Limited Warranty for Fresh Water Cooling Kits document enclosed with your kit and located on policies page of our website.
Note: Some engines have fuel line routing and fuel filter location that must be changed slightly.
May also fit custom marine conversions:
With v-belt or multi-belt equipped engines.(will not fit serpentine belt equipped engines)
Sterndrive and Inboard engines only. (will not fit V-drive installations)
Kit fits engines with low mounted alternator
Note: All Monitor Products freshwater cooling kits are primer coated and finish coated in matte black.
