Jet H-Bars & Power Take Off Adapters

Click on the part number to check pricing or place an order.

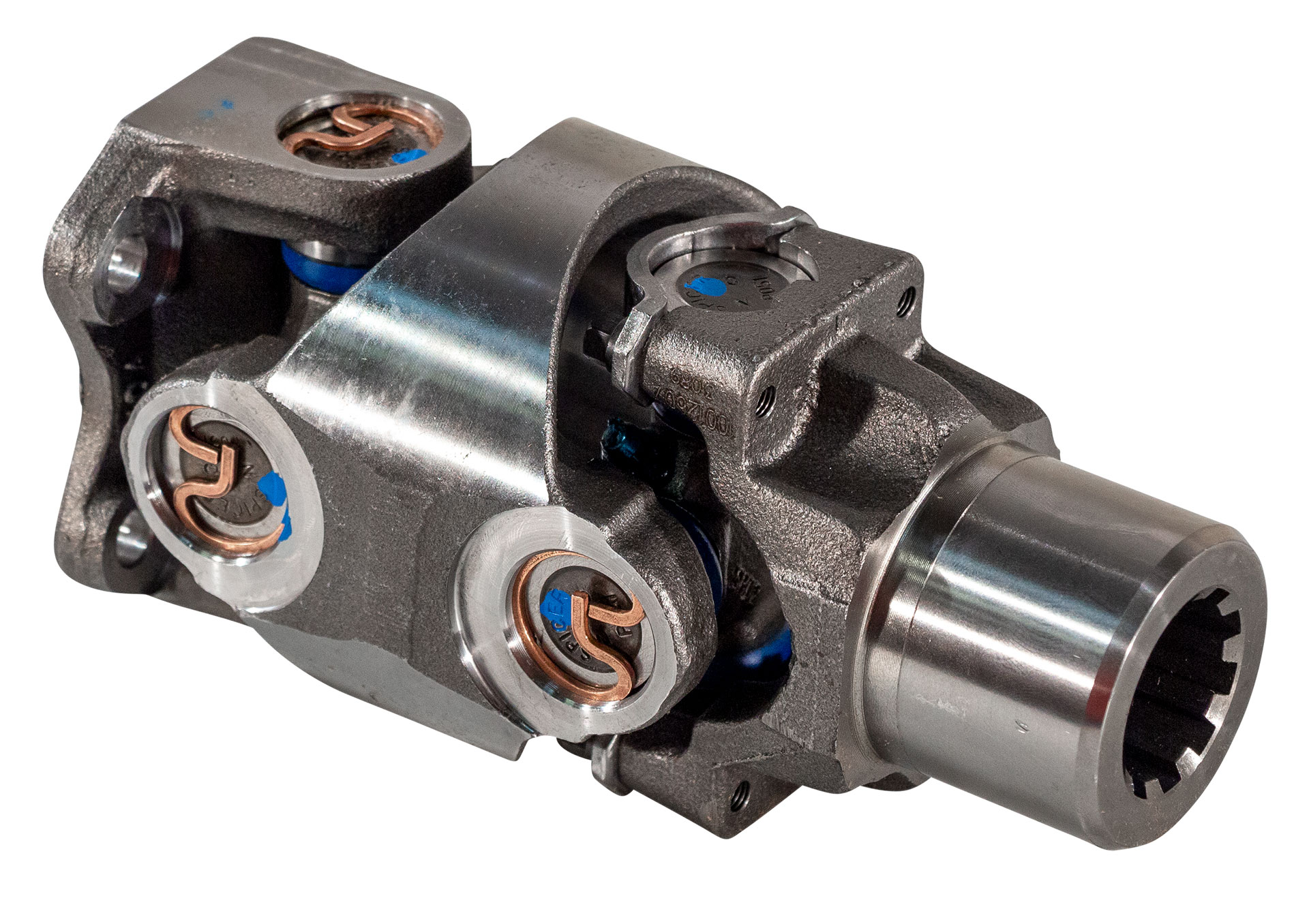

Jet H-Bar 1310 Driveline

1310 Spicer bolt pattern to jet pump spline. This unit bolts to the PTO flange. This is the most standard u-joint assembly found in production style boats.

Part No.	Description
500-0844	Jet H-Bar 1310 Driveline

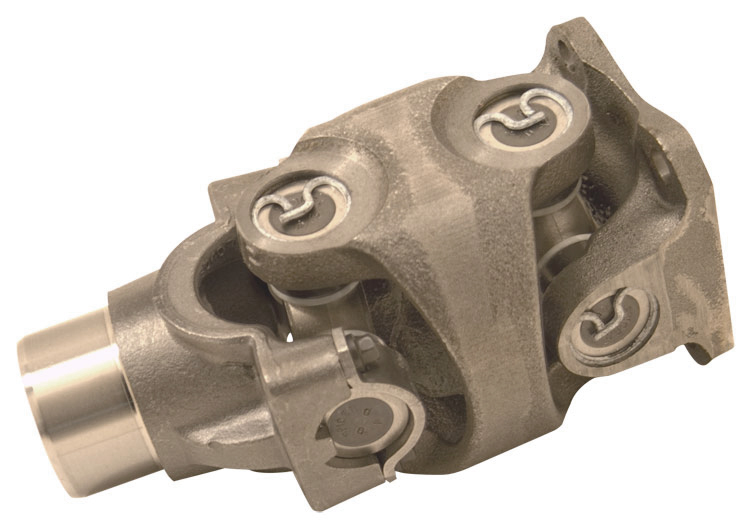

Jet H-Bar 1350 Driveline

Heavy duty jet H-bar for 1-3/8" 10-spline jet pumps. Uses 7/16"-20 bolts. For 600 horsepower and up.

Part No.	Description
500-0845	Jet H-Bar 1350 Driveline

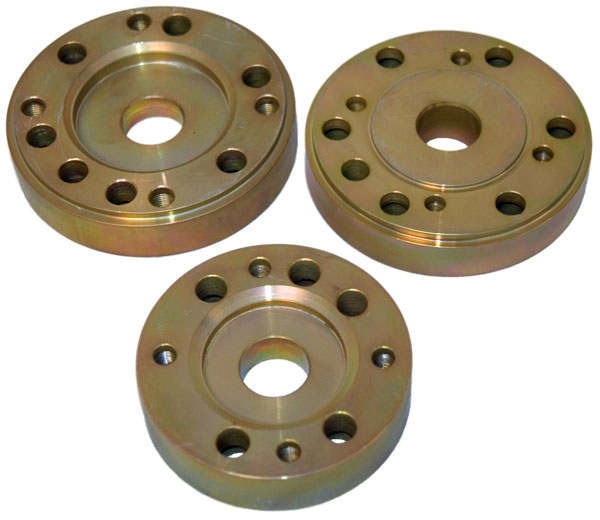

Power Take Off Adapters

These flanges bolt on the flywheel and accept 1310 & 1350 spicer drivelines.

There are many more available, just call us. These power take offs are needed when attaching your drive shaft to your engine.

Part No.	Description
500-0793-E	Chevy 1310 Flexplate
500-0793-F	Chevy 1310 Flywheel
500-0793P	S/B Chevy 1310 Flexplate 1987 and newer with 1 PC rear seal
500-0793Q	S/B Chevy 1310 Flywheel 1987 and newer with 1 PC rear seal
500-0796-E	S/B, B/B Chevy 1350 Flexplate
500-0796-F	S/B, B/B Chevy 1350 Flywheel
500-0793-K	460 Ford 1310 Flexplate
500-0796-K	460 Ford 1350 Flexplate
500-0793-M	455 Olds 1310 Flexplate
500-0796-M	455 Olds 1350 Flexplate

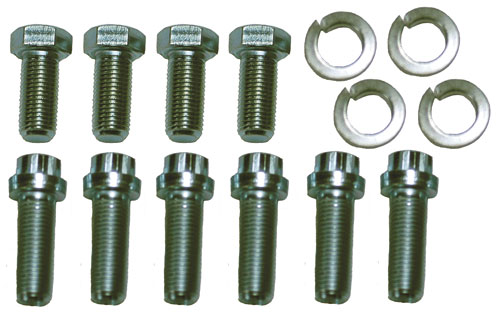

PTO Bolt Kits

Note: To determine U joint flange size (1310 or 1350) refer to the following information.
1310 - uses 3/8-24 bolts on 2" x 2-3/8" centers
1350 - uses 7/16-20 bolts on 2-3/8" x 2-7/8" centers

Part No.	Description
500-0799	For PTO 1310 Adapters Bolts Kits
500-0780	For PTO 1350 Adapters Bolts Kits
