MX 6.2L MPI HORIZON MIE - Serial 0M398395 Thru 0W389999 - Cylinder Head and Rocker Cover

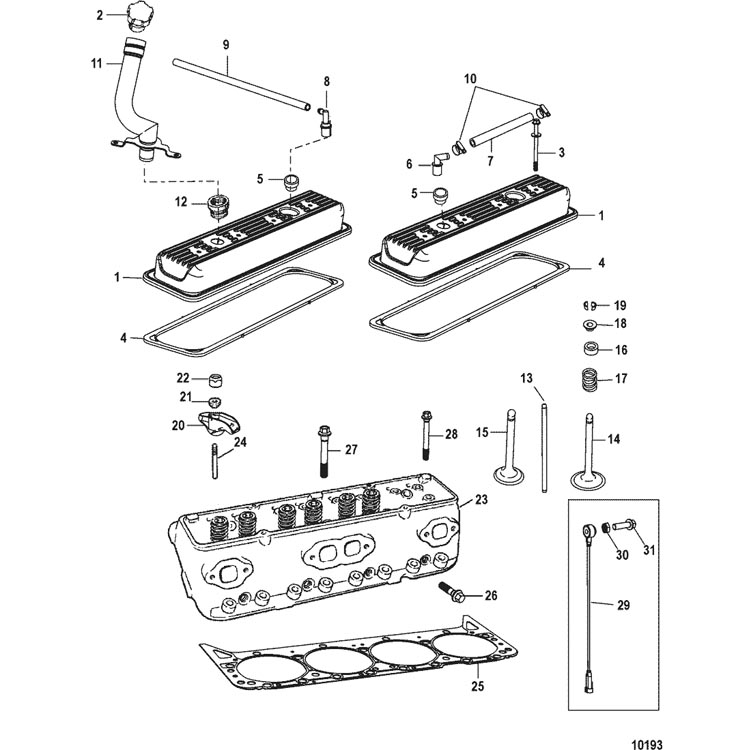

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 809995         COVER, Rocker 1
1 8M0086350         COVER, Rocker 1
2 36-18710002         CAP, Oil Fill 1
3 10-8M0084557         SCREW 8 17344
4 27-17467         GASKET, Rocker Cover 2
5 25-8M0071559         GROMMET 2 52188
6 97850T         ELBOW, 90 Degree, Breather 1 97850
7 32-8M0062321         HOSE, (33.00 Inches Bulk) 1 86197763
8 21-8M2017060         VALVE, PCV 1 861476
9 32-1589424         HOSE, (16.50 Inches Bulk), Breather 1
10 54-815504206         CLAMP, Worm Gear 2
11 806819A3         TUBE, Oil Fill 1
12 26-805622         GROMMET, Oil Fill Tube 1
13 173391         PUSH ROD 16
14 8243171         VALVE, Exhaust 8
14 8243181         VALVE, Exhaust AR
15 809992         VALVE, Intake 8
15 8M2010902         VALVE, Intake 8
16 26-8M0050563         SEAL, Intake Valve 8 976641
16 26-804507         SEAL, Exhaust Valve 8
17 24-483471         SPRING 16
18 483481         CAP 16
19 28-547971         KEY 32
20 35329         ARM KIT, Rocker 16
21 35331         BALL, Rocker Arm 16
22 11-34516         NUT 16
23 938-803860T         CYLINDER HEAD ASSEMBLY 2
23 900-8M0061735         CYLINDER HEAD ASSEMBLY 2   No Longer Available
24 16-34522         STUD AR
24 16-34521         STUD AR   No Longer Available
25 27-75611001         GASKET 2   No Longer Available
26 10-11968         SCREW, (.437-14 x 1.750) 16
27 10-119671         SCREW, (.437-14 x 3.00) 4
28 10-11966         SCREW, (.437-14 x 3.750) 14
29 8M6003194         SENSOR ASSEMBLY, Knock 2 878187
30 10-865982007         SCREW, (.375-16 x 1.25) Hex Flange, Knock Sensor 2
- 27-861246A05         GASKET SET, Engine Overhaul 1
- 27-75611A03         GASKET SET, Cylinder Head 1
