7.4L MPI Bravo (Gen 6) GM 454 V-8 1998-2000 - Serial 0L010003 Thru 0M024330 - Senders and Harness Bracket

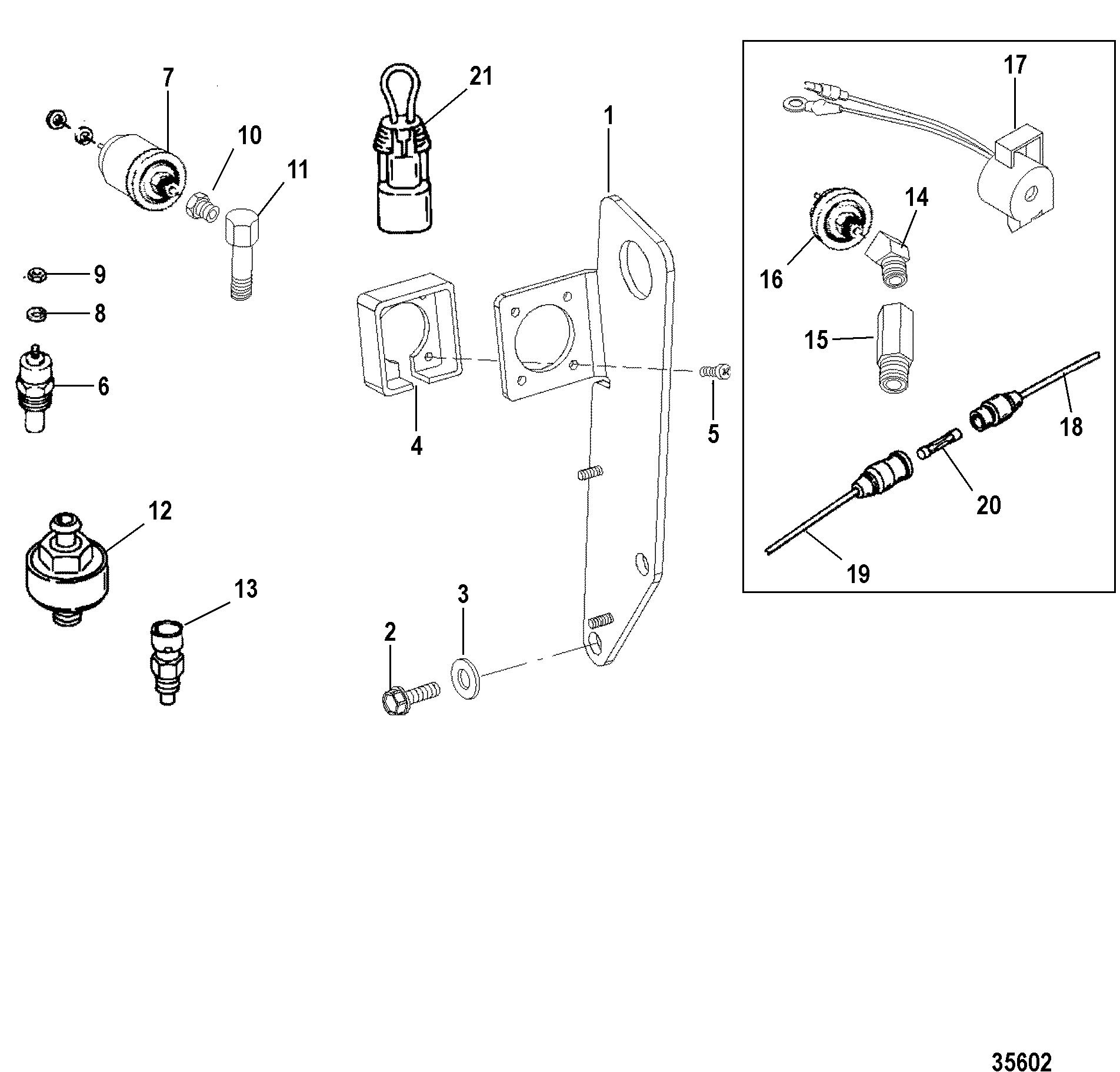

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 861176T



BRACKET/LIFTING EYE (REAR) 1    This Part is NLA from Mercruiser
2 10-47461



SCREW, (.437-14 x 1.00) 2

3 12-22248



WASHER, (.453 x .875 x .060) 2
4 26079A2



PLATE KIT, Wire Harness Mount 1

5 10-15001



SCREW, (#8-16 x .875) 4
6 806490T
676-9-42400

SENDER ASSEMBLY, Water Temperature 1 97257A1
6 49734



SENDER OPT    (DUAL STATION) 5
7 8M0068784



SENDER ASSEMBLY 1 87-815425T
7 37293T



SENDER ASSEMBLY OPT    (DUAL STATION) 5
8 13-26996



LOCKWASHER, (#10) Stainless Steel 2
9 11-68219



NUT, (#10-32) Stainless Steel 2
10 22-64013



FITTING, (.375 Male To .125 Female) 1
11 22-8053281



FITTING, Elbow (90 Degree - .125) 1
12 805544T
676-9-33500

SENSOR ASSEMBLY 1
13 805218T
676-9-42402

SENSOR 1
14 22-29085



FITTING, Elbow (45 Degree) 1
15 22-805059



FITTING 1
16 87-805605A1



SWITCH ASSEMBLY 1
17 816492A6



ALARM KIT 1
18 84-95084A9



CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip (MALE) 1
19 84-95084A10



CABLE ASSEMBLY, (5.00 Inches) Red (FEMALE) 1
20 88-79091



FUSE, 20 Ampere 1
21 805592A1



CONNECTOR ASSEMBLY 1    (WHITE WIRE) 1
21 830796A1



CONNECTOR ASSEMBLY 1    (BLACK WIRE) 1
