7.4L MPI Bravo (Gen 6) GM 454 V-8 1998-2000 - Serial 0L010003 Thru 0M024330 - Sea Water Pump

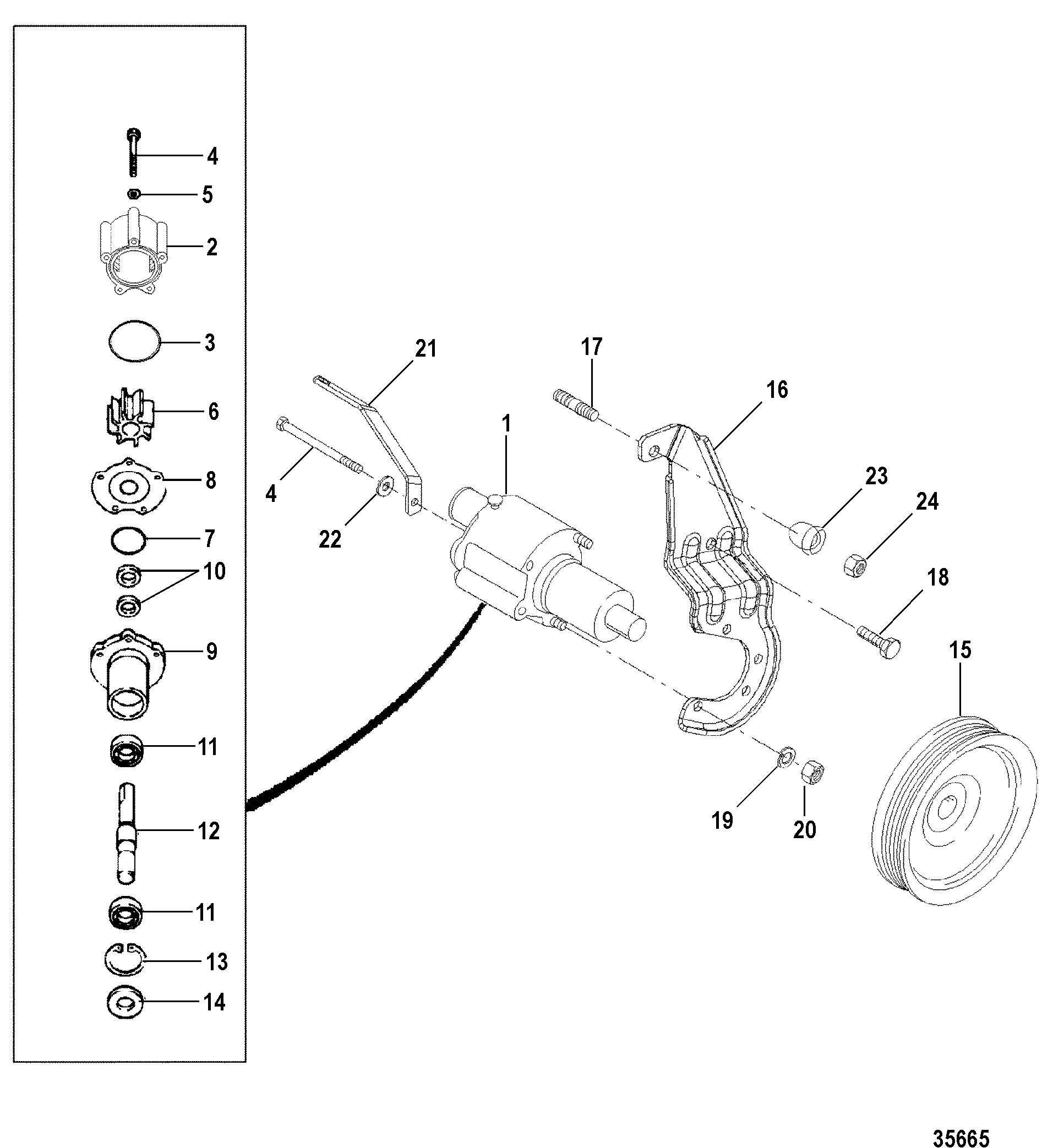

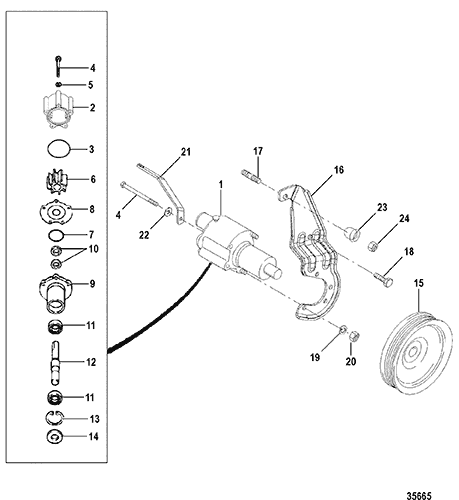

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 46-807151A9

700-12097
PUMP ASSEMBLY, Sea Water 1
2 46-807151A14
676-9-48350

BODY/IMPELLER KIT 1

3 25-33465
676-9-76516 700-81430 525-25-33465 O-RING 1
4 10-74191



SCREW, (.312-18 x 3.250) 5

5 12-814806

700-21662
WASHER, (.344 x .688 x .065) Stainless Steel 5
6 47-59362T1 625-4011 676-9-45375 700-89740
IMPELLER 1
7 25-94288


525-94288 QUAD RING 1
8 94576

700-12501 525-94576 WEAR PLATE (INNER) 1
9 46-94913A5



HOUSING ASSEMBLY, Pump 1
10 26-90562
676-9-76107 700-85080
SEAL, (1.254 x .312) 2
11 30-72961
676-9-43220

BEARING, Ball 2
12 59501A1



SHAFT 1
13 53-23720



RING, Retaining 1
14 26-72785



SEAL 1
15 861579



PULLEY 1
16 861087T



BRACKET 1    This Part is NLA from Mercruiser
17 16-806591



STUD, (7/16-14) 1
18 10-17965



SCREW, (.437-14 x .70) 1
19 13-400247



LOCKWASHER, (M8) 4
20 11-21908



NUT, (.312-18) Cad Plated 4
21 861530



BRACE 1
22 12-814806

700-21662
WASHER, (.344 x .688 x .065) Stainless Steel 2
23 12-74758



WASHER 1 12-27345
24 11-22024



NUT, (.437-14) 1
