MX 6.2L MPI HORIZON MIE - Serial 0M310000 Thru 0M316999 - Throttle Body

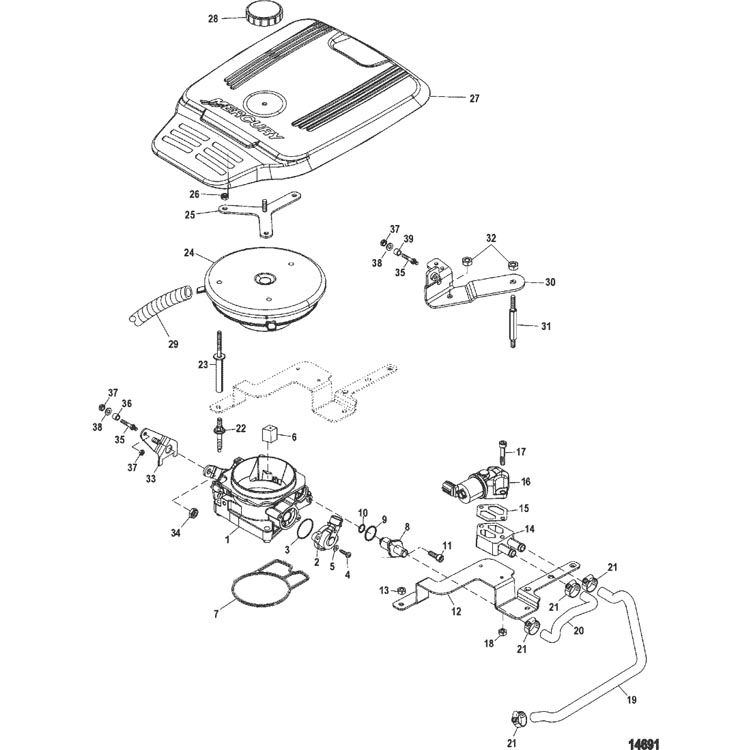

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Boost Pump, 350 Magnum SN-0M311444 MX6.2L SN-0M311053 And Up
- Closed Cooling System
- Cylinder Block, Camshaft And Crankshaft
- Cylinder Block, Flywheel Housing
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Exhaust Manifold And Elbow
- Front Cover And Circulating Pump
- Fuel Filter, 350 Mag SN-0M311443 MX6.2L SN-0M311052 - Below
- Fuel Pump And Fuel Cooler
- Intake Manifold and Fuel Rail
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Remote Oil Filter
- Sea Water Pump Assembly
- Standard Cooling System
- Starter Motor
- Thermostat And Housing
- Throttle Body
- Transmission And Engine Mounting(Borg-Warner 5000)
- Transmission And Engine Mounting(Borg-Warner 71C And 72C)
- Transmission And Engine Mounting(Hurth 630)
- Transmission And Related Parts(Borg-Warner 5000)
- Transmission And Related Parts(Borg-Warner 71C And 72C)
- Transmission And Related Parts(Hurth 630)
- Transmission(Walter V-Drive)
- Water Distribution Housing
- Water Drain-Manifold and Air Pump
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M0096994 | THROTTLE BODY ASSEMBLY | 1 | 888770T | |||||
| 2 | 8M0097035 | SENSOR, TPS | 1 | 853678T | |||||
| 3 | NSS | NOT SOLD SEPARATE, O-Ring | 1 | ||||||
| 4 | 10-853680 | SCREW KIT | 2 | No Longer Available | |||||
| 5 | NSS | NOT SOLD SEPARATE, Washer | 2 | ||||||
| 6 | 35-863829 | MUFFLER, Intake Air Control | 1 | ||||||
| 7 | 27-8M4502066 | GASKET, Throttle Body | 1 | 885172 | |||||
| 8 | 862999A5 | PLUG KIT | 1 | 862999A3 | |||||
| 9 | 25-863006 | O-RING | 1 | ||||||
| 10 | 25-808547 | O-RING | 1 | ||||||
| 11 | 10-4008612 | SCREW, (M4 x 12) | 2 | ||||||
| 12 | 863647T | BRACKET | 1 | ||||||
| 13 | 11-401366 | NUT, (M6) Stainless Steel | 1 | ||||||
| 14 | 863419A1 | VALVE ASSEMBLY, Air | 1 | ||||||
| 15 | 27-863112 | GASKET, Air Valve | 1 | ||||||
| 16 | 862998 | VALVE, Idle Air | 1 | ||||||
| 17 | 10-F2192 | SCREW, (.250-20 x 1.750) | 2 | ||||||
| 18 | 11-401366 | NUT, (M6) Stainless Steel | 2 | ||||||
| 19 | 32-863429 | HOSE | 1 | ||||||
| 20 | 32-863428 | HOSE | 1 | ||||||
| 21 | 54-815504210 | CLAMP, Worm Gear, Hose | 4 | ||||||
| NS | 19-8M0074364 | COVER, Hose Clamp End | 4 | 8079923 | |||||
| 22 | 16-8M0088142 | STUD | 3 | 885171 | |||||
| 23 | 16-864338 | STUD, Special | 3 | ||||||
| 24 | 863416T | FLAME ARRESTOR | 1 | ||||||
| 25 | 863423 | BRACKET, Cover Mount | 1 | ||||||
| 26 | 11-401386 | NUT, (M6) Stainless Steel | 3 | ||||||
| 27 | 879288T66 | COVER, Black, Engine | 1 | No Longer Available | |||||
| 28 | 11-863701 | KNOB, Engine Cover | 1 | ||||||
| 29 | 32-1589424 | HOSE, (16.50 Inches Bulk), Breather | 1 | ||||||
| 30 | 863420T | BRACKET, Throttle Anchor | 1 | ||||||
| 31 | 16-863439 | STUD | 1 | ||||||
| 32 | 11-401366 | NUT, (M6) Stainless Steel | 2 | ||||||
| 33 | 863417 | BRACKET, Throttle | 1 | ||||||
| 34 | 11-8267138 | NUT, (.25-20) | 1 | ||||||
| 35 | 16-97477A3 | STUD KIT, Throttle Anchor | 2 | ||||||
| 36 | NSS | NOT SOLD SEPARATE, Spacer | 1 | ||||||
| 37 | 11-8267139 | NUT, (.250-28) | 3 | ||||||
| 38 | 12-20533 | WASHER | 2 | ||||||
| 39 | 23-31866 | SPACER, (.256 x .313 x .625) | 2 | ||||||
| 39 | 23-11284 | SPACER, (.62 Diameter) | 1 |
