MX 6.2L MPI HORIZON MIE - Serial 0M310000 Thru 0M316999 - Starter Motor

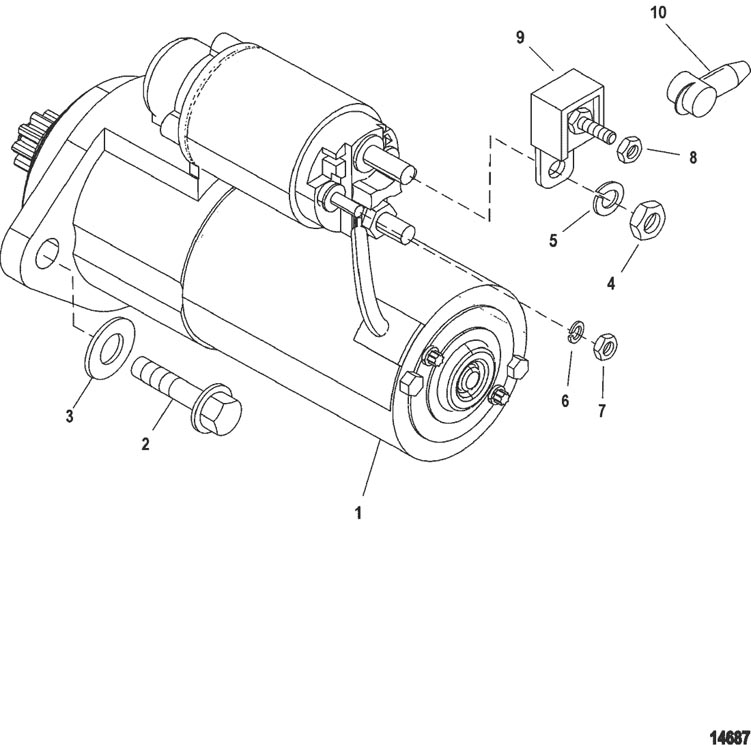

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 50-808011A05         STARTER MOTOR ASSEMBLY 1 808011A4
2 10-47462         SCREW, (.437-14 x 1.250) 2
3 13-32993         LOCKWASHER, (.437) 2
4 11-806949         NUT, (M8-1.5) 1
5 13-400247         LOCKWASHER, (M8) 1
6 13-26996         LOCKWASHER, (#10) Stainless Steel 1
7 11-400211         NUT, (M5) Stainless Steel 1
8 11-8267119         NUT, (.250-28) 1
9 88-79023A91         FUSE ASSEMBLY, 90 Ampere 1
10 85-79695T         BOOT, Insulator - Black 1 79695
