MX 6.2L MPI HORIZON MIE - Serial 0M310000 Thru 0M316999 - Standard Cooling System

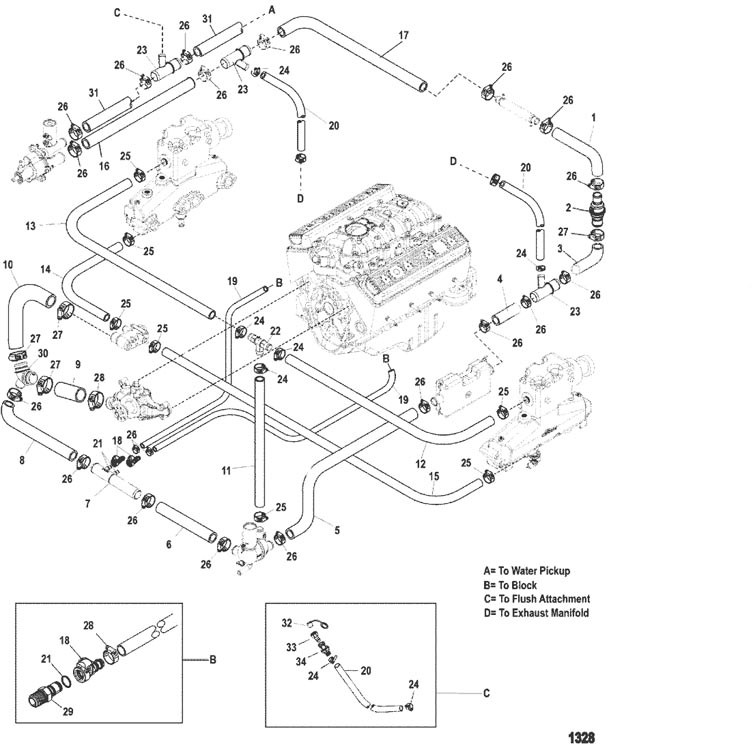

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Boost Pump, 350 Magnum SN-0M311444 MX6.2L SN-0M311053 And Up
- Closed Cooling System
- Cylinder Block, Camshaft And Crankshaft
- Cylinder Block, Flywheel Housing
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Exhaust Manifold And Elbow
- Front Cover And Circulating Pump
- Fuel Filter, 350 Mag SN-0M311443 MX6.2L SN-0M311052 - Below
- Fuel Pump And Fuel Cooler
- Intake Manifold and Fuel Rail
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Remote Oil Filter
- Sea Water Pump Assembly
- Standard Cooling System
- Starter Motor
- Thermostat And Housing
- Throttle Body
- Transmission And Engine Mounting(Borg-Warner 5000)
- Transmission And Engine Mounting(Borg-Warner 71C And 72C)
- Transmission And Engine Mounting(Hurth 630)
- Transmission And Related Parts(Borg-Warner 5000)
- Transmission And Related Parts(Borg-Warner 71C And 72C)
- Transmission And Related Parts(Hurth 630)
- Transmission(Walter V-Drive)
- Water Distribution Housing
- Water Drain-Manifold and Air Pump
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 32-863489 | HOSE, Transmission Cooler To Check Valve | 1 | ||||||
| 2 | 21-864206A1 | CHECK VALVE ASSEMBLY | 1 | ||||||
| 3 | 32-864480 | HOSE, Check Valve To Tee Fitting | 1 | ||||||
| 4 | 32-864481 | HOSE, T Fitting To Fuel Cooler | 1 | ||||||
| 5 | 32-863670 | HOSE, Fuel Cooler To Water Distribution Housing | 1 | ||||||
| 6 | 32-863490 | HOSE, Water Drain Accumulator To Distribution Fitting | 1 | ||||||
| 7 | 22-864989A01 | FITTING, Lower Distribution | 1 | No Longer Available | |||||
| 8 | 32-863491 | HOSE, Distribution Fitting To "Y" Fitting | 1 | ||||||
| 9 | 32-862274 | HOSE, Lower Circulation Pump | 1 | No Longer Available | |||||
| 10 | 32-863456A1 | HOSE, Y Fitting To Circulating Pump | 1 | 863453 | |||||
| 11 | 32-863465 | HOSE, Drain Accumulator To Tee Fitting | 1 | ||||||
| 12 | 32-863496 | HOSE, T Fitting To Port Elbow | 1 | No Longer Available | |||||
| 13 | 32-863828 | HOSE, T Fitting To Starboard Elbow | 1 | No Longer Available | |||||
| 14 | 32-863459 | HOSE, Thermosat Housing To Starboard Manifold | 1 | ||||||
| 15 | 32-864393 | HOSE, Thermosat Housing To Port Manifold | 1 | ||||||
| 16 | 32-864477 | HOSE, Sea Water Pump To "T" Fitting | 1 | ||||||
| 17 | 32-864478 | HOSE, T Fitting To Trans Cooler | 1 | ||||||
| 18 | 22-862225 | FITTING, Pushlock | 4 | ||||||
| 19 | 32-8M0062590 | HOSE, Cylinder Block Drain To Distributor Fitting | 2 | 8623174 | |||||
| 20 | 32-8M0062634 | HOSE, (44.00 Inches Bulk) | 1 | 4285069 | |||||
| 21 | 25-627021 | O-RING, (.301 x .070) | 2 | ||||||
| 22 | 22-863464 | FITTING | 1 | ||||||
| 23 | 22-862993 | FITTING, Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb | 3 | ||||||
| 24 | 54-815504212 | CLAMP, Worm Gear, Hose | 2 | 54-8M2004076 | |||||
| 25 | 54-815504216 | CLAMP, Worm Gear (1.56 Diameter), Hose | AR | 54-8M2001487 | |||||
| 26 | 54-815504222 | CLAMP, Worm Gear (1.98 DIameter), Hose | 2 | ||||||
| 27 | 54-815504228 | CLAMP, Worm Gear, Hose | 1 | 54-32781 54-853232 54-853432 |
|||||
| 28 | 54-815504232 | CLAMP, Worm Gear (2.50 Diameter), Hose | AR | ||||||
| 29 | 22-862603 | FITTING, Male Quick Connector (Threaded) | 2 | ||||||
| 30 | 32-863456A1 | FITTING, Y | 1 | 863455 | |||||
| 31 | 32-8M0062666 | HOSE, Sea Water Pump To Water Pick Up | 1 | 86334364 | |||||
| 32 | 858240 | CAP | 1 | 861427 | |||||
| 33 | 22-857175 | FITTING | 1 | 861405 | |||||
| 34 | 22-861406 | SOCKET | 1 | ||||||
| NS | 19-8M0074364 | COVER, Hose Clamp End | AR | 8079923 |
