MX 6.2L MPI HORIZON MIE - Serial 0M310000 Thru 0M316999 - Pistons And Connecting Rods

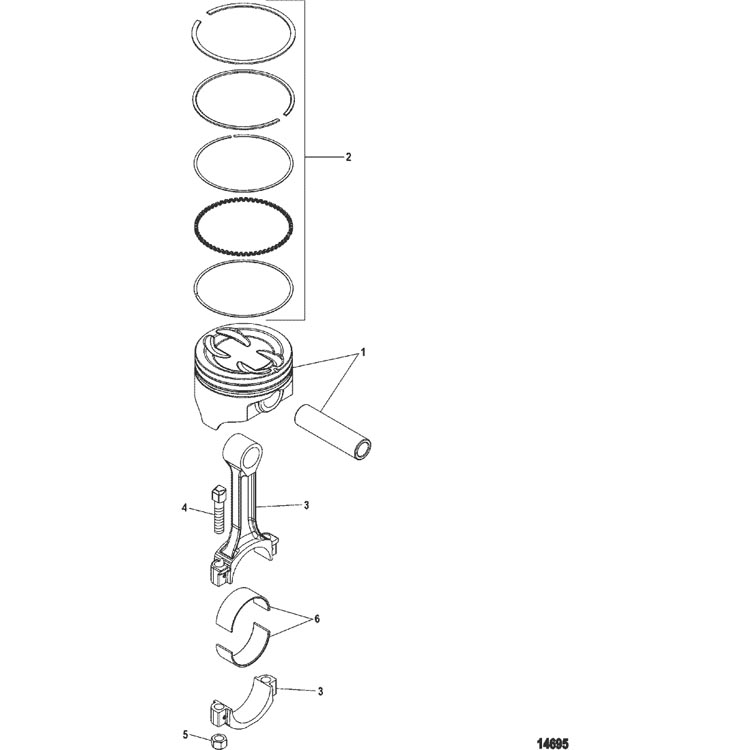

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 735-835001T         PISTON ASSEMBLY 8
1 735-835002T         PISTON ASSEMBLY AR
1 735-879345T91         PISTON ASSEMBLY 8   No Longer Available
2 39-8018611         RING SET, Piston 8 801861T1
2 39-835000         RING SET, Piston AR
2 39-864176A1         RING SET, Piston 8
3 614-8164T         CONNECTING ROD ASSEMBLY 8
3 614-862587A3         CONNECTING ROD ASSEMBLY 8
4 10-85802         SCREW, (.375-24 x Special), Connecting Rod 16   No Longer Available
5 11-37493         NUT, (.375-24) (350 Magnum) 16
5 11-862573         NUT (MX-6.2L) 16
6 23-85701         BEARING 8
6 23-85702         BEARING AR
6 23-85703         BEARING AR
6 23-85704         BEARING AR
6 23-85705         BEARING AR
6 31-849391T         BEARING SET, Standard - 8 Pair 1 849391
6 31-8M0050745         BEARING SET, (.001 Oversize) 8 Pair 1 849392
6 31-8M0053548         BEARING SET, (.001 Undersize) 8 Pair 1 849393
