MX 6.2L MPI MIE - Serial 0L302200 Thru 0M299999 - Oil Filter and Adaptor

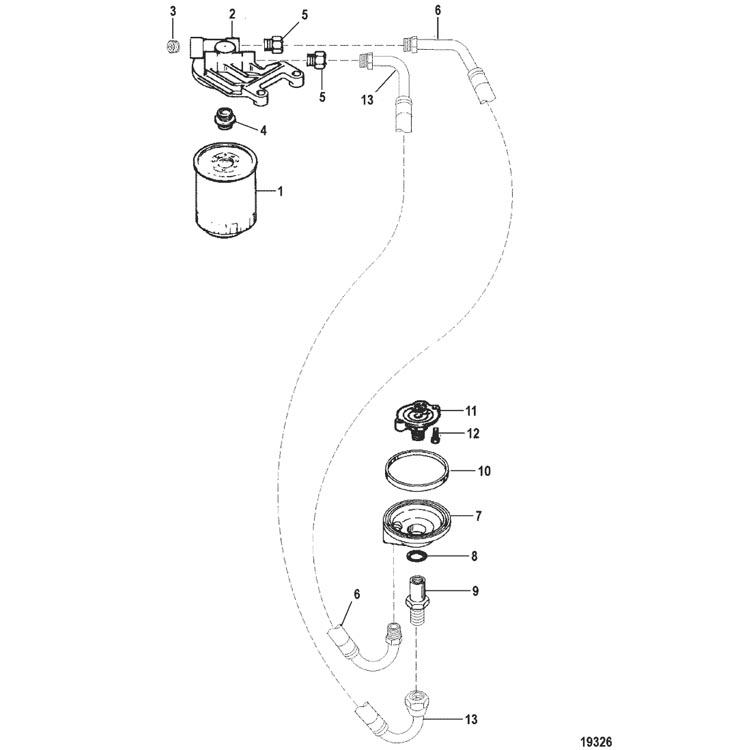

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 35-866340Q03         FILTER, Oil 1 802885Q
2 814420A5         BRACKET 1
2 817403A4         BRACKET ASSEMBLY 1   No Longer Available
3 22-384071         FITTING, (1/2-14) (1/2-14) 2
4 22-814822         FITTING 1
5 22-805563         CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare) 2
6 32-8062621         HOSE 1
6 32-806634T         HOSE 1
6 32-8061783         HOSE 1
7 35-818400A1         ADAPTOR 1 807080T
8 26-42077         SEAL 1
9 22-806121         FITTING 1
10 27-91892         GASKET 1
11 71920         VALVE ASSEMBLY, Filter 1 53338
12 10-54786         SCREW, (.312-18 x 1.250) 2
13 32-861618T         HOSE 1
13 32-8062613         HOSE 1
- 27-75611A98         GASKET SET, Engine Overhaul 1
