Alpha One (Gen. II) 1998 and Up - Serial 0L100040 and Up - Special Tools-Gear Housing (Counter Rotation)

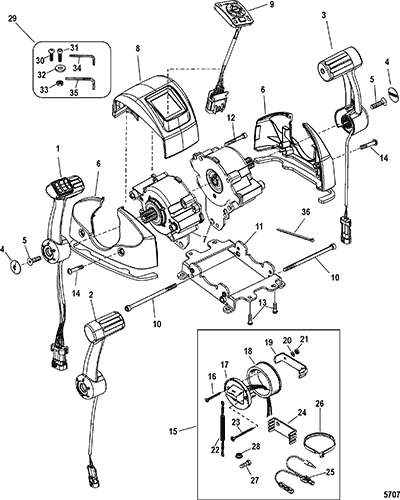

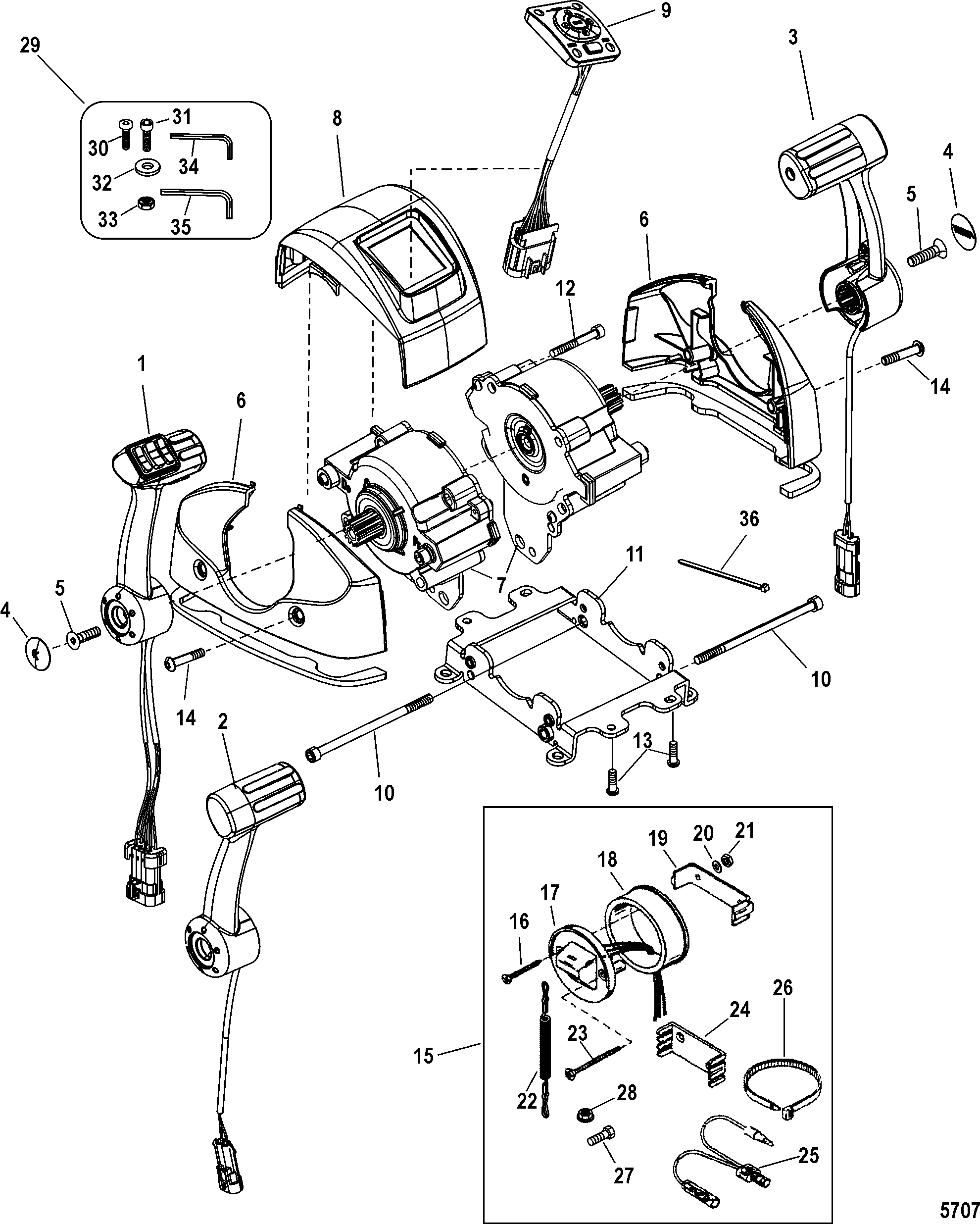

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Compact Hydralic Steering Actuator
- Continuity Kit
- Driveshaft Housing And Drive Gears
- Driveshaft Housing And Driveshaft
- Driveshaft Housing Chart
- Gear Housing (Driveshaft)(Standard Rotation)
- Gear Housing (Prop Shaft)(Counter Rotation)
- Gear Housing (Prop Shaft)(Standard Rotation)
- Gear Housing Chart(Counter Rotation)
- Gear Housing Chart(Standard Rotation)
- Gear Housing(Driveshaft)(Counter Rotation)
- Gimbal Housing
- Gimbal Housing Chart
- Gimbal Housing Cover
- Gimbal Ring And Steering Lever
- Hydraulic Pump And Bracket
- Mercathode Components
- Oil Reservoir Components
- Power Steering
- Power Trim Cylinder Repair Kits
- Pump-Motor (Bottom Mt Reservoir)(Design I-14336A8)
- Pump-Motor (Top Mt Reservoir) (Design III - 14336A31)
- Pump-Motor (Top Mt Reservoir)(Design I-14336A20)
- Pump-Motor (Top Mt Reservoir)(Design II-14336A25)
- Special Tools-Driveshaft Housing
- Special Tools-Gear Housing (Counter Rotation)
- Special Tools-Gear Housing (Standard Rotation)
- Special Tools-Transom
- Stern Drive Unit Chart
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 91-53459 | ROD TOOL, Backlash Indicator Flag | 1 | (ALL GEARS EXCEPT 14:28) | |||||
| - | 91-8M0053505 | INDICATOR TOOL, Backlash | 1 | 91-78473 | (14:28 GEARS) | ||||
| - | 91-18605A2 | INSTALLATION TOOL, Bearing Adaptor | 1 | ||||||
| - | 91-61069T | WRENCH, Bearing Carrier Retainer | 1 | 91-61069 | |||||
| - | 91-816244 | DRIVER TOOL, Bearing | 1 | ||||||
| - | 91-14311A04 | PRE LOAD TOOL, Bearing | 1 | 91-14311A2 | |||||
| - | 91-816245 | REMOVAL TOOL, Bearing | 1 | ||||||
| - | 12-54048 | WASHER | 1 | ||||||
| - | 91-58222A1 | DIAL INDICATOR TOOL | 1 | ||||||
| - | 91-89897 | HOLDING TOOL, Dial Indicator | 1 | ||||||
| - | 91-56775T | HOLDING TOOL, Driveshaft | 1 | 91-56775 | |||||
| - | 91-43506T | WRENCH, Bearing Retainer | 1 | 91-43506 | |||||
| - | 91-816243 | GUIDE PLATE | 1 | ||||||
| - | 91-15755T | MANDREL | 1 | 91-15755 | |||||
| - | 91-31108T | DRIVER TOOL, Oil Seal | 1 | 91-31108 | |||||
| - | 91-817569T | DRIVER TOOL, Oil Seal | 1 | 91-817569 | |||||
| - | 91-56048001 | SHIMMING TOOL, Pinion Gear | 1 | 91-56048 | |||||
| - | 91-61067A04 | ADAPTOR TOOL, Pinion Nut | 1 | 91-61067A3 | |||||
| - | 91-61077T | ADAPTOR TOOL, Driveshaft | 1 | 91-61077 | |||||
| - | 91-85716 | PULLER TOOL | 1 | ||||||
| - | 91-31229 | SHAFT | 1 | ||||||
| - | 91-46086A1 | PULLER JAW ASSEMBLY | 1 | ||||||
| - | 91-816242 | PULLER JAWS | 1 | ||||||
| - | 91-807944T | INSTALLER TOOL, Bearing | 1 | 91-807944 | |||||
| - | 91-34569A1 | PULLER ASSEMBLY, Slide Hammer | 1 | ||||||
| - | 91-815850 | FOWARD GEAR INSTALLATION TOOL | 1 | ||||||
| - | 91-66274 | TORQUE WRENCH, (0-150 lb-in) (Inch Pounds) | 1 | ||||||
| - | 91-37241 | 700-90150 | PULLER PLATE | 1 | |||||
| - | 91-821571A1 | GUIDE TOOL, Water Pump Alignment Pins | 1 | ||||||
| - | 91-31229A7 | PULLER KIT, Bearing | 1 | ||||||
| - | 91-36569T | DRIVE HEAD TOOL | 1 | 91-36569 | |||||
| - | 91-37323 | DRIVER ROD TOOL, Needle Bearings | 1 | ||||||
| - | 11-24156 | NUT, (.625-18) | 1 | ||||||
| - | 91-36571T | PILOT WASHER | 1 | 91-36571 | |||||
| - | 91-29310 | PLATE | 1 | ||||||
| - | 91-38628T | INSTALLATION TOOL, Bearing | 1 | 91-38628 |
