Alpha One (Gen. II) 1998 and Up - Serial 0L100040 and Up - Power Trim Cylinder Repair Kits

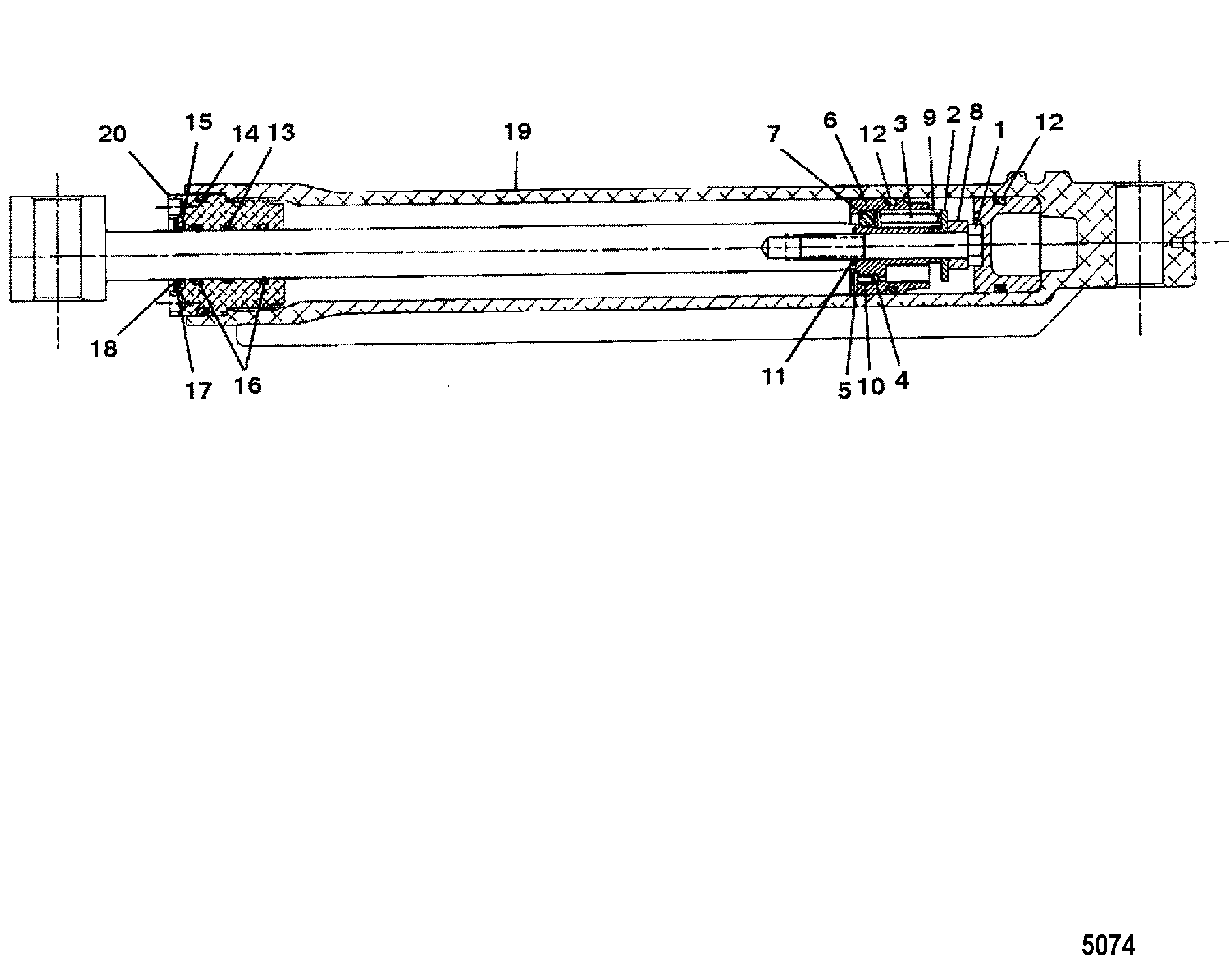

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Compact Hydralic Steering Actuator
- Continuity Kit
- Driveshaft Housing And Drive Gears
- Driveshaft Housing And Driveshaft
- Driveshaft Housing Chart
- Gear Housing (Driveshaft)(Standard Rotation)
- Gear Housing (Prop Shaft)(Counter Rotation)
- Gear Housing (Prop Shaft)(Standard Rotation)
- Gear Housing Chart(Counter Rotation)
- Gear Housing Chart(Standard Rotation)
- Gear Housing(Driveshaft)(Counter Rotation)
- Gimbal Housing
- Gimbal Housing Chart
- Gimbal Housing Cover
- Gimbal Ring And Steering Lever
- Hydraulic Pump And Bracket
- Mercathode Components
- Oil Reservoir Components
- Power Steering
- Power Trim Cylinder Repair Kits
- Pump-Motor (Bottom Mt Reservoir)(Design I-14336A8)
- Pump-Motor (Top Mt Reservoir) (Design III - 14336A31)
- Pump-Motor (Top Mt Reservoir)(Design I-14336A20)
- Pump-Motor (Top Mt Reservoir)(Design II-14336A25)
- Special Tools-Driveshaft Housing
- Special Tools-Gear Housing (Counter Rotation)
- Special Tools-Gear Housing (Standard Rotation)
- Special Tools-Transom
- Stern Drive Unit Chart
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
| Note: DO NOT SUBSTITUTE O RINGS AS THESE ARE OF SPECIAL MANUFACTURED MATERIAL | |||||||||
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 87399A3 | 700-26580 | OVERHAUL KIT | 1 | |||||
| 1 | NSS | NOT SOLD SEPARATE, SCREW | 1 | This Part is not sold separately | |||||
| 2 | NSS | NOT SOLD SEPARATE, SPRING SEAT | 1 | This Part is not sold separately | |||||
| 3 | NSS | NOT SOLD SEPARATE, VALVE SEAT | 3 | This Part is not sold separately | |||||
| 4 | NSS | NOT SOLD SEPARATE, STEEL BALL (.109 DIA.) | 1 | This Part is not sold separately | |||||
| 5 | NSS | NOT SOLD SEPARATE, SPRING PIN | 1 | This Part is not sold separately | |||||
| 6 | NSS | NOT SOLD SEPARATE, SHOCK PISTON | 1 | This Part is not sold separately | |||||
| 7 | NSS | NOT SOLD SEPARATE, STEEL BALL (.250 DIA.) | 3 | This Part is not sold separately | |||||
| 8 | NSS | NOT SOLD SEPARATE, SPACER | 1 | This Part is not sold separately | |||||
| 9 | NSS | NOT SOLD SEPARATE, COMPRESSION SPRING | 3 | This Part is not sold separately | |||||
| 10 | NSS | NOT SOLD SEPARATE, SPRING | 1 | This Part is not sold separately | |||||
| - | 25-87400A2 | 700-87400 | SEAL KIT | 1 | |||||
| 11 | NSS | NOT SOLD SEPARATE, O-RING | 1 | This Part is not sold separately | |||||
| 12 | NSS | NOT SOLD SEPARATE, O-RING | 2 | This Part is not sold separately | |||||
| 13 | NSS | NOT SOLD SEPARATE, SPRING | 2 | This Part is not sold separately | |||||
| 14 | NSS | NOT SOLD SEPARATE, O-RING | 1 | This Part is not sold separately | |||||
| 15 | NSS | NOT SOLD SEPARATE, SCRAPER ROD | 1 | This Part is not sold separately | |||||
| 16 | NSS | NOT SOLD SEPARATE, O-RING | 2 | This Part is not sold separately | |||||
| 17 | NSS | NOT SOLD SEPARATE, WASHER | 1 | This Part is not sold separately | |||||
| 18 | NSS | NOT SOLD SEPARATE, RETAINING RING | 1 | This Part is not sold separately | |||||
| 19 | 815935T | 700-26531 | TUBE | 1 | (PORT CYLINDER) | ||||
| 19 | 815954T | 700-26521 | TUBE | 1 | (STARBOARD CYLINDER) | ||||
| 20 | 806191T | 700-11610 | CAP | 2 | |||||
