Alpha One (Gen. II) 1996-1997 - Serial 0F680000 Thru 0K999999 - Driveshaft Housing And Drive Gears

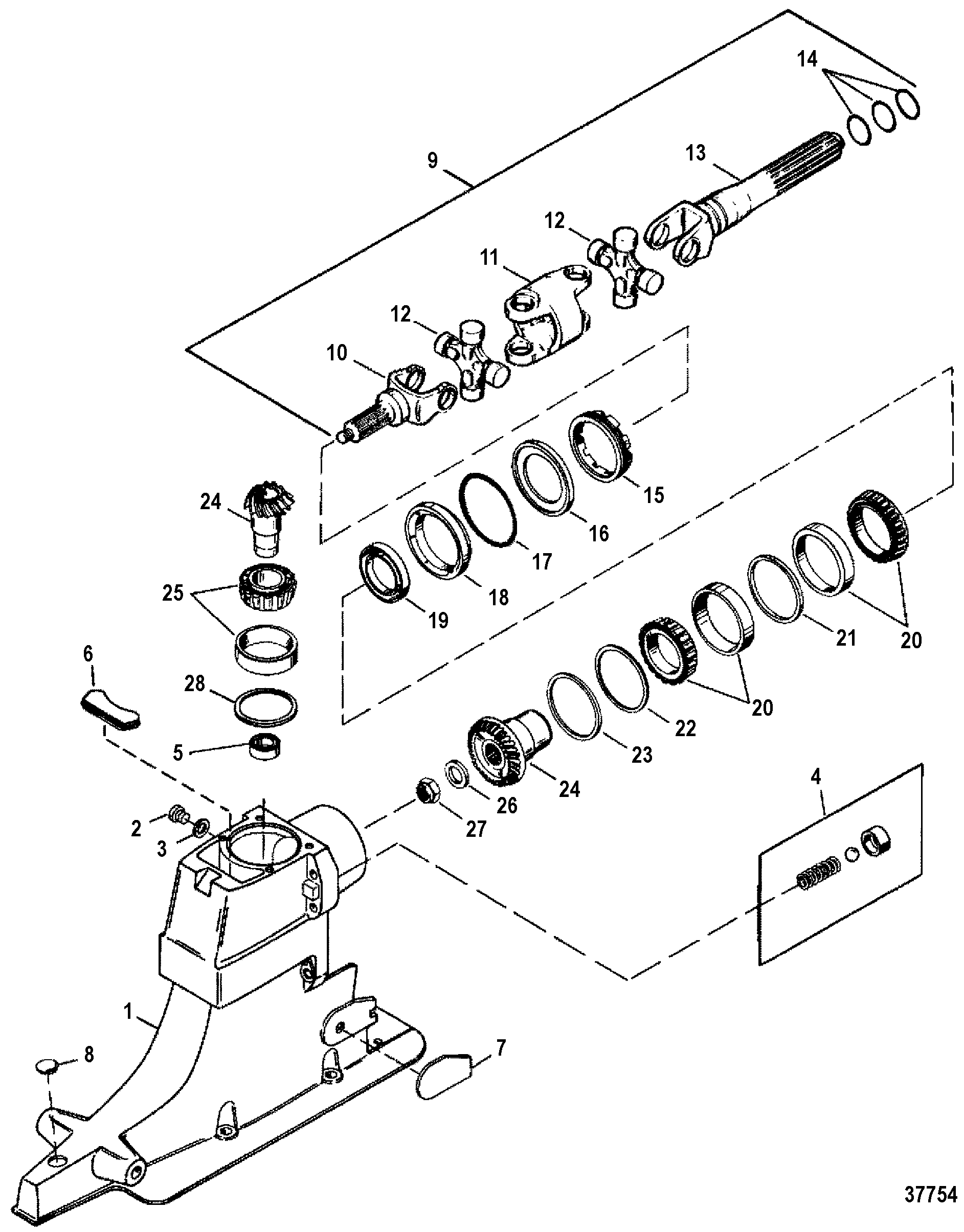

Section Drawing: (Hover or click to view larger)

Untitled Document
Note: For Continuity Circuit Components, see the 'Continuity Kit' Section
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 1547-815930A7



HOUSING ASSEMBLY, Driveshaft 1

2 10-79953Q04



SCREW KIT, (.375-16 x .250) 1 10-79953A2
3 12-191833


525-12-191833 WASHER, Fiber 1 12-19183 4
4 24-17997A1

700-12930
SPRING KIT 1

5 26-66302

700-85011
SEAL, Oil 2
SN# 0M400411 & Below
5 26-864319



SEAL, Oil 1
SN# 0M400412 & Up 4
6 861738



PLUG 1 821564 No longer made, limited availability
7 8M2015937



WEAR PAD 1 814386 (PORT)
7 879346T30



WEAR PAD 1 814387 (STARBOARD)
8 19-824928001


525-19-824928001 PLUG 1 19-32297
9 814819A2
676-9-72409 700-28050
UNIVERSAL JOINT 1

10 46020T02



YOKE, Gear End 1 46020T
11 393831



SOCKET, Center 1 39383T
12 805536A2
676-9-72406

CROSS AND BEARING 2

13 814819A3
676-9-72401

YOKE, Coupler End 1

14 25-29845


525-25-29845 O-RING, (.924 x .103) 2
4
14 25-35027
676-9-76507 700-81180 525-25-35027 O-RING, (1.046) 1
4
15 8168112
676-9-72154

RETAINER 1 8168111
16 35983
676-9-78105 700-28390
RING 1

17 25-70937
676-9-76551 700-82380
O-RING 1
4
18 66081A2

700-28370
CARRIER ASSEMBLY 1

19 26-823894
676-9-76102

SEAL, Oil 1
4
20 31-35988A12
676-9-75123 700-21520
BEARING KIT, Roller 1

21 23-35985



SPACER 1

22 15-35980A1

700-23280
SHIM SET AR
3
23 15-71013

700-28380
SHIM, Spacer 1

24 43-55778A3

700-11240
GEAR KIT 1
(2.40:1 AND 1.94:1 RATIO) (20-24 GEARS)
24 43-75325A3

700-11230
GEAR KIT 1
(1.81:1 RATIO) (17-19 GEARS)
24 43-45814A5

700-11220
GEAR KIT 1
(1.62:1 RATIO) (24-24 GEARS)
24 43-18411A2

700-11210
GEAR KIT 1
(1.47:1 RATIO) (20-22 GEARS)
25 31-35990A1
676-9-75122

BEARING ASSEMBLY, Roller 1

25 31-32573A1

700-21560
BEARING ASSEMBLY, Roller 1
(1.47:1 RATIO ONLY)
26 12-45810
676-9-78107 700-28330
WASHER 1

27 11-22339

700-28360 525-11-22339 NUT, (.625-18) 1

28 15-36178A02



SHIM SET AR 15-36178A1 3
- 26-88397A1

700-87501
SEAL KIT, Driveshaft Housing -
