Alpha One (Gen. II) 1991-1995 - Serial 0D469859 Thru 0F679999 - Mercthode Kit

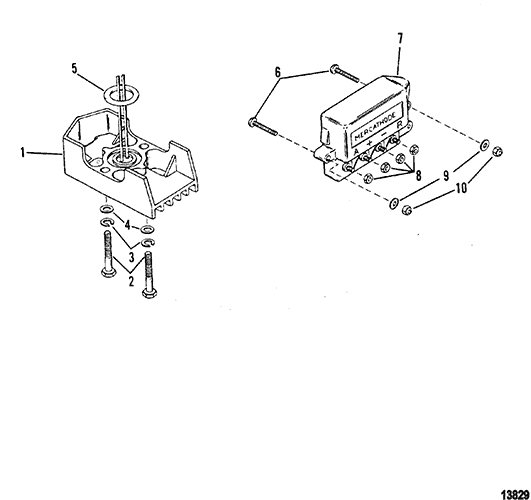

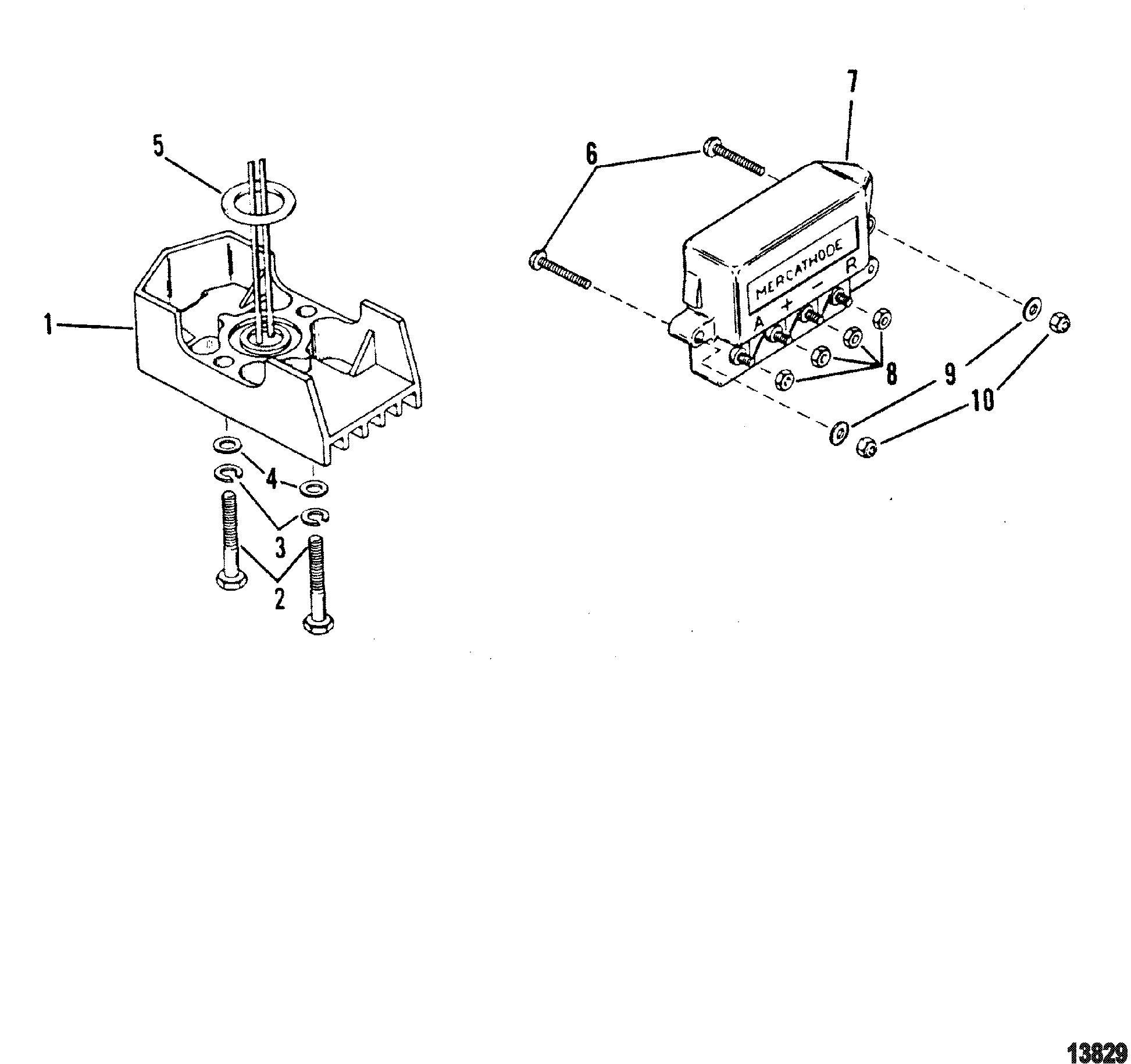

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Continuity Kit
- Drive Shaft Housing And Drive Gears
- Drive Shaft Housing And Drive Shaft
- Drive Unit Chart
- Gear Housing, Driveshaft - Counter Rotation
- Gear Housing, Driveshaft - Standard Rotation
- Gear Housing, Propeller Shaft - Counter Rotation
- Gear Housing, Propeller Shaft - Standard Rotation
- Gimbal Housing
- Gimbal Housing Cover
- Gimbal Ring And Steering Lever
- Hydraulic Pump
- Hydraulic Pump And Bracket
- Mercthode Kit
- Oil Reservoir Components (Round Oil Bottle)
- Oil Reservoir Components (Square Oil Bottle)
- Power Steering Components
- Power Trim Cylinder Repair Kits
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 98869A17 | NOT SOLD SEPARATELY, ELECTRODE ASSEMBLY | 1 | 98869A11 | This part is Not Sold Separately | ||||
| 2 | 10-69067 | SCREW, (.250-20 x 1.375) | 2 | Component Of Drive Shaft Housing Seal Kit [26- 88397A 1] | |||||
| 3 | 13-26992 | LOCKWASHER, (.250) Stainless Steel | 2 | As Required | |||||
| 4 | 12-29245 | 700-21490 | WASHER, (.281 x .500 x .060) Stainless Steel | 2 | Component Of Water Pump Rebuild Kit [817275A 4] | ||||
| 5 | 25-88388 | O-RING | 1 | Component Of Seal Kit [26-816575A 3] | |||||
| 6 | 10-72202 | 700-22312 | SCREW, (#10-32 x 1.25) | 1 | Optional | ||||
| 6 | 10-45862 | SCREW, (#10-32 x .875) | 1 | Replacement Gimbal Housing Assy, Complete- Includes Bell Housing, Gimbal Ring, Trim Cylinder, Etc. | |||||
| 7 | 42600A09 | CONTROLLER ASSEMBLY | 1 | 42600A3 | |||||
| 8 | 11-68219 | NUT, (#10-32) Stainless Steel | 4 | ||||||
| 9 | 12-21273 | WASHER | 2 | ||||||
| 10 | 11-46438 | NUT, (#10-32) | 2 |
