Alpha One (Gen. II) 1991-1995 - Serial 0D469859 Thru 0F679999 - Gear Housing, Driveshaft - Counter Rotation

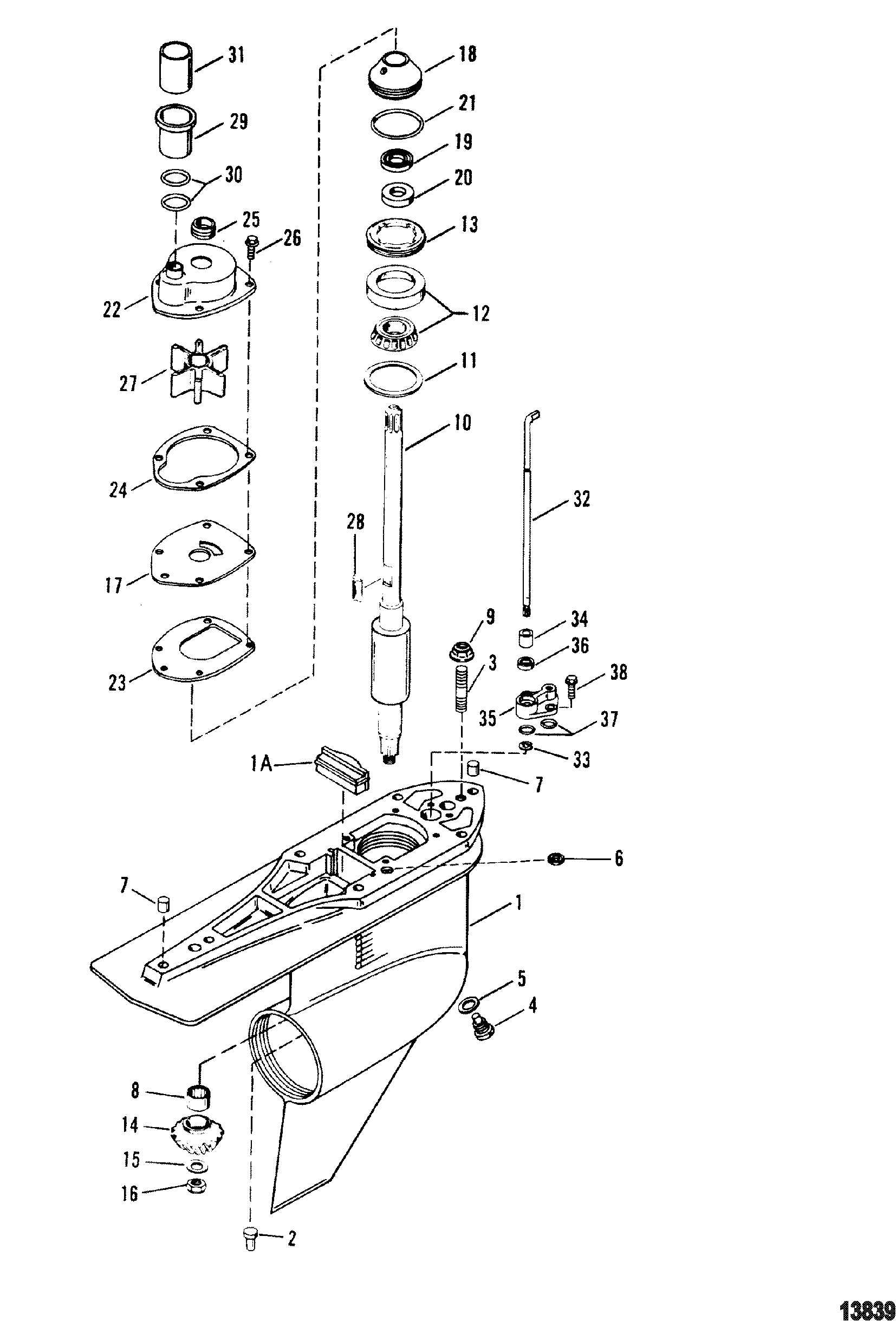

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 1623-815822A47



GEAR HOUSING ASSEMBLY, Complete 1 1623-815822A7
1 1623-815822A28



GEAR HOUSING ASSEMBLY 1

1A 821526001



FILLER BLOCK 1 821526
2 17-379721



PIN 1

3 16-57984



STUD, (.437-14/.437-20 x 2.380) 1

4 22-8M0058389

700-21731 525-22-8M0058389 SCREW 1 10-14834A1
5 12-191833


525-12-191833 WASHER, Fiber, Optional 1 12-19183 (Fiber) 4,5,6
5 25-805726
676-9-76578

O-RING, Rubber, Optional 1
(Rubber) 4,5,6
6 26-455771


525-26-455771 SEAL 1 26-45577 4,5
7 17-43044



PIN, Dowel - Without Hole (.375 x .625) 2

8 31-42647A1
676-9-75121 700-21610
BEARING ASSEMBLY, Roller 1

9 11-859135
676-9-78116

NUT, (.437-20) 1 11-817618
10 45-816919
676-9-78112 700-11140
DRIVESHAFT 1

11 15-8M0063267



SHIM SET AR 15-42637A1 3
12 31-36387A1
676-9-75107 700-21580
BEARING, Roller 1

13 8245191
676-9-78126

RETAINER 1 824519
14 43-828071A1



GEAR SET, Includes Pinion/Forward Gears 1 43-812975A5
15 12-92721
676-9-78108 700-32800
WASHER 1

16 11-35921
676-9-78103 700-11190
NUT, (.625-18) 1

17 8172761



FACEPLATE 1 817276 4
18 807929A1
676-9-72642 700-12341
CARRIER ASSEMBLY 1 821759A2 4
19 26-16977
676-9-76108 700-85040
SEAL, Oil 1
4,5
20 26-89238
676-9-76109 700-85070
SEAL, Oil 1
4,5
21 25-896523

700-81395
O-RING, (2.175 x .175) 1 25-90011 4,5
22 817275A1
676-9-48314 700-12415
PUMP ASSEMBLY, Water 1
impeller not included 4
23 27-430331



GASKET 1
4
24 27-8172771



GASKET 1 27-817277 4
25 26-816575A2
676-9-43628 700-85590
SEAL KIT 1
seal tool not included 4,5
26 10-816928
676-9-78128 700-12834
SCREW, (M6 x 16) 4

27 47-43026T2
676-9-45307 700-89630
IMPELLER 1 47-430262 4
28 28-8M0032833



KEY 1 28-43037 7
29 816597A1
676-9-78110 700-12824
COUPLING ASSEMBLY 1

30 25-21836
676-9-76565

O-RING, (.796 x .139) 2
4,5
31 23-816583

700-12825
SLEEVE 1

32 815919A1
676-9-72477 700-21031
SHIFT SHAFT, Lower 1

33 53-29641
676-9-78109 700-21136
E RING 1

34 23-67370
676-9-78134

SLEEVE 1

35 23-815921A21

700-21015
BUSHING ASSEMBLY 1 23-815921A8
36 26-8164641



SEAL, Oil 1
5
37 25-36318
676-9-76574

O-RING, (.799) 2
5
38 10-816928
676-9-78128 700-12834
SCREW, (M6 x 16) 2

- 817275Q05



REBUILD KIT, Water Pump 1 817275A4
- 26-816575A3
676-9-74206 700-87511
SEAL KIT, Gear Housing 1
