5.7LX EFI (4 BBL-TBI) GM 350 V-8 1996 - Serial 0F752400 Thru 0K001505 - Pistons And Connecting Rods

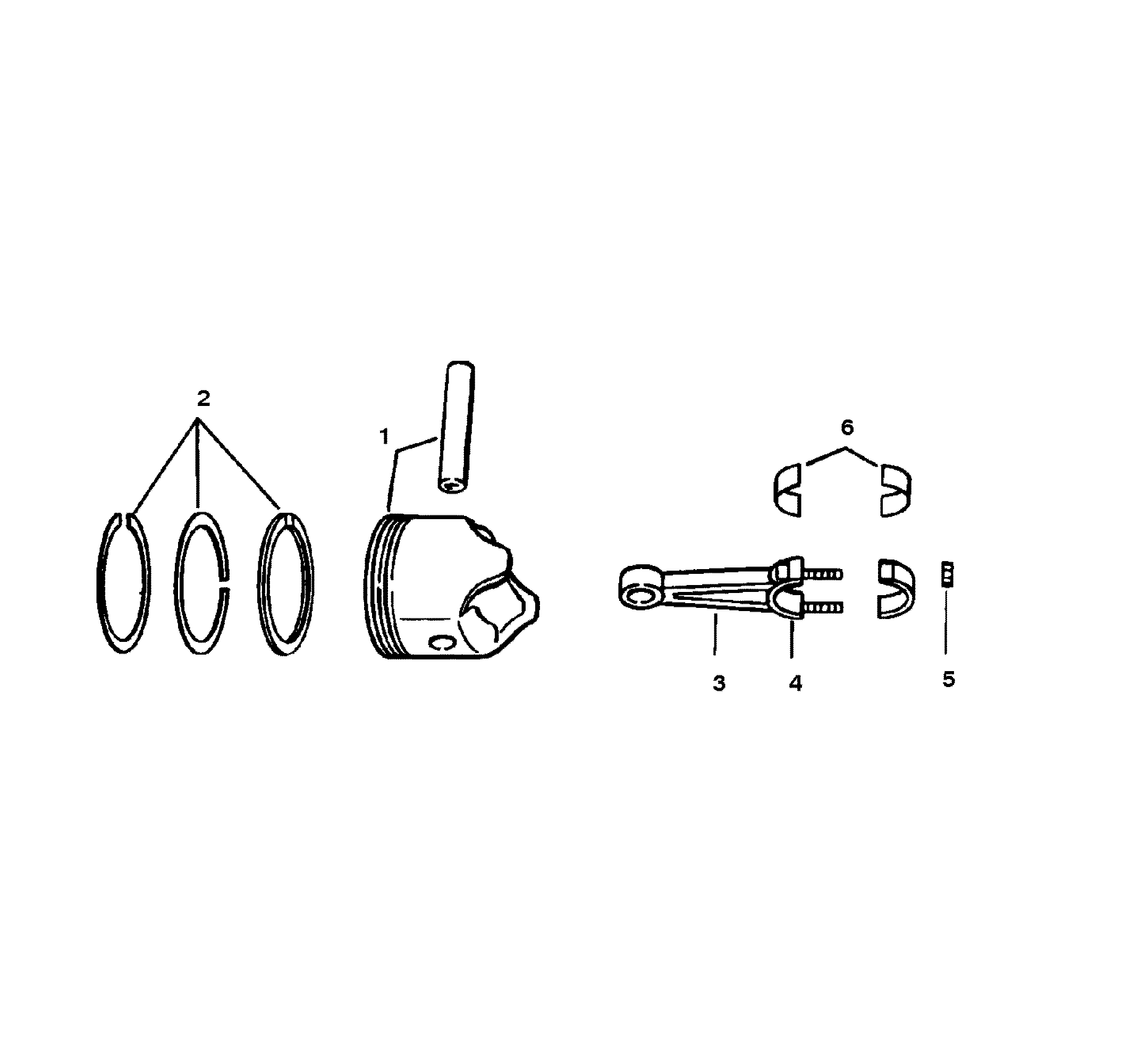

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 735-850097         PISTON/PISTON PIN 8
(STANDARD)
1 735-850098         PISTON/PISTON PIN AR
(.030 O.S.) 6
2 39-17464         PISTON RING 8
(STANDARD)
2 39-17465         PISTON RING AR
(.030 O.S.) 6
3 614-8164T         CONNECTING ROD 8 614-8164
4 10-85802         BOLT 16   This Part is No Longer Available
5 11-37493         NUT 16

6 23-85701         BEARING UNIT 8
(PAIR - STANDARD)
6 23-85702         BEARING UNIT AR
(PAIR - .001 U.S.) 6
6 23-85703         BEARING UNIT AR
(PAIR - .002 U.S.) 6
6 23-85704         BEARING UNIT AR
(PAIR - .010 U.S.) 6
6 23-85705         BEARING UNIT AR
(PAIR - .020 U.S.) 6
