5.7LX EFI (4 BBL-TBI) GM 350 V-8 1996 - Serial 0F752400 Thru 0K001505 - Cylinder Head And Rocker Cover

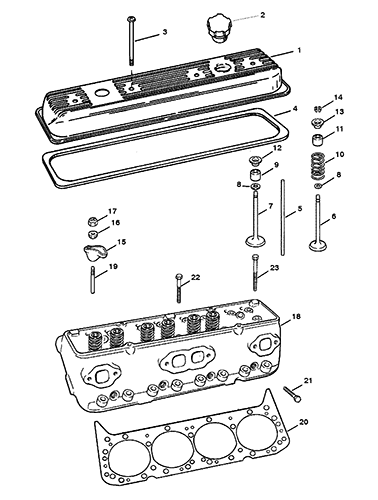

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 809995         ROCKER COVER 2

2 36-18710002         CAP 2 36-187101
3 10-17344         SCREW 8

4 27-17467   676-9-61305 700-30357   GASKET 2
5
5 99948         PUSH ROD 16
(USE WITH FLAT LIFTER)
5 173391         PUSH ROD 16
(USE WITH ROLLER LIFTER)
6 850095         EXHAUST VALVE 8
(STANDARD)
6 850095         EXHAUST VALVE AR
(.015 O.S.) 6
7 97661         INLET VALVE 8
(STANDARD)
7 97662         INLET VALVE AR   This Part is No Longer Available (.015 O.S.) 6
8 26-34217         SEAL 16
5
9 8M0050563         SEAL 8 26-97664 (INTAKE) 5
9 26-852936         SEAL 8   This Part is No Longer Available (EXHAUST) No longer made, limited availability
10 24-48347         SPRING 16

11 34518001         SHIELD 16 34518
12 48348         CAP 8   This Part is No Longer Available (INTAKE)
13 11965         ROTATOR 8   This Part is No Longer Available (EXHAUST)
14 28-547971         KEY 32

15 35329         ROCKER ARM 16

16 35331         BALL UNIT 16

17 11-34516         NUT 16

18 938-883490R1         CYLINDER HEAD ASSEMBLY 2 938-9718
19 16-34522         STUD AR
(.003 O.S.) 6
19 16-34521         STUD AR   This Part is No Longer Available (.013 O.S.) 6
20 75611001         GASKET 2 27-75611 5
21 10-11968         BOLT (1-3/4") 16

22 10-119671         BOLT (3") 4

23 10-11966         BOLT (3-3/4") 14

- 27-806871A96         GASKET SET-OVERHAUL 1
CONTENTS INDICATED BY FOOTNOTE 20.
