5.7LX EFI (4 BBL-TBI) GM 350 V-8 1996 - Serial 0F752400 Thru 0K001505 - Crankshaft And Flywheel

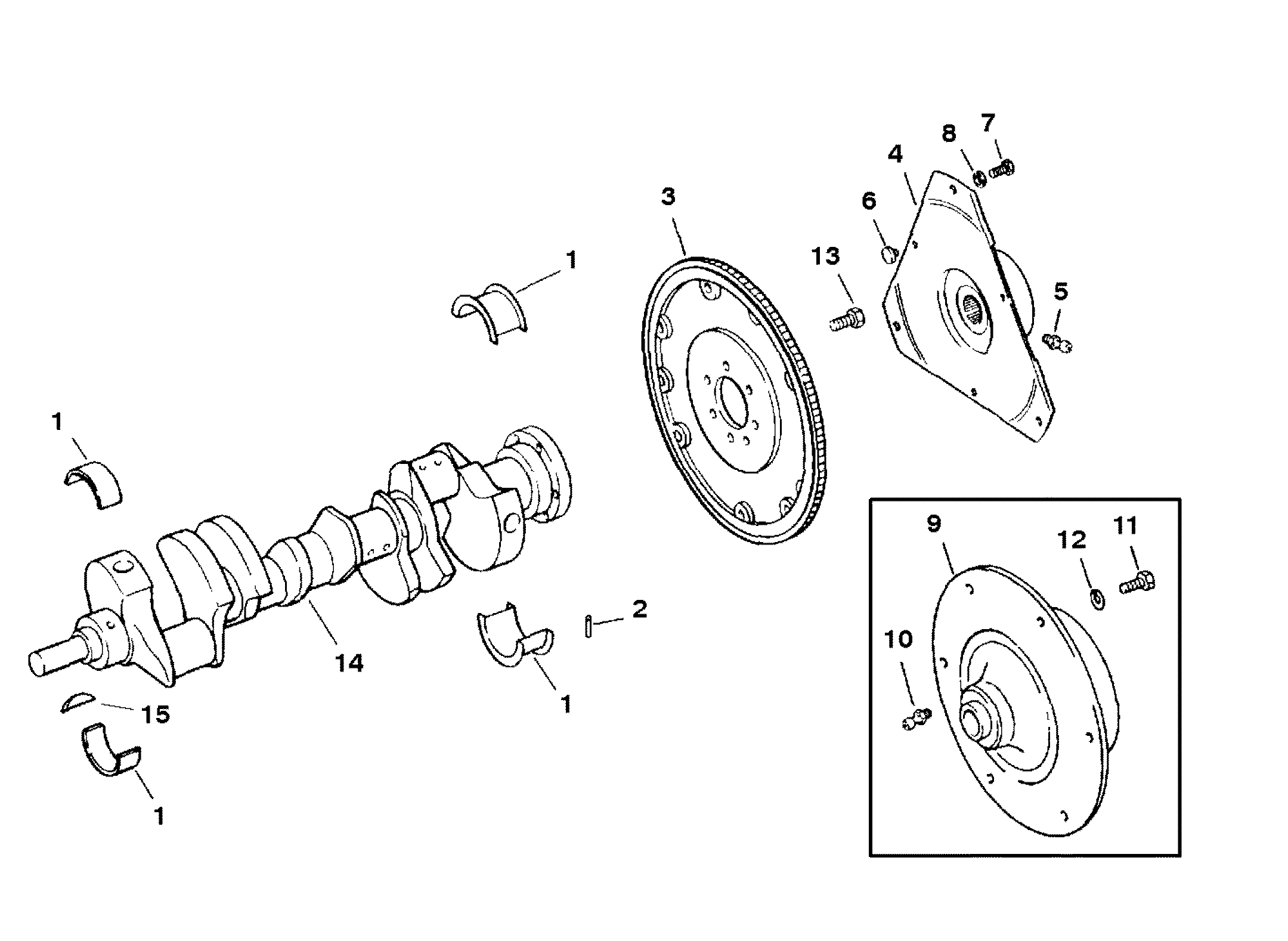

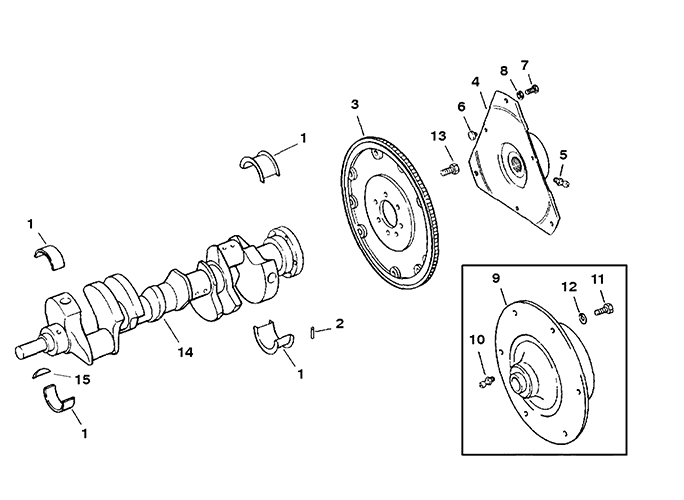

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 23-818465         BEARING SET 1
(STANDARD)
1 23-818466         BEARING SET AR
(.001 U.S.) 6
1 23-818467         BEARING SET AR
(.010 U.S.) 6
1 23-818468         BEARING SET AR
(.020 U.S.) 6
2 17-43504         DOWEL PIN 2 FI1100096 (1/4 IN. DIA.)
3 8M0047213         FLYWHEEL 1 222-9520
4 18643A5         COUPLING 1
5.7L/LX ALPHA AND 5.7L BRAVO
5 22-74036         FITTING 1
5.7L/LX ALPHA AND 5.7L BRAVO
6 18644         RUBBER BUMPER 3
5.7L/LX ALPHA AND 5.7L BRAVO
7 10-14883         SCREW 3
5.7L/LX ALPHA AND 5.7L BRAVO
8 12-13510         WASHER 3
5.7L/LX ALPHA AND 5.7L BRAVO
9 861523A9         COUPLING ASSEMBLY 1 18311A17 5.7LX BRAVO
10 22-49099         GREASE FITTING 2
5.7LX BRAVO
11 10-14883         SCREW 6
5.7LX BRAVO
12 12-20572         WASHER 6
5.7LX BRAVO
13 10-845757         SCREW 6 10-49845
14 429-9521T         CRANKSHAFT 1 429-9521 This Part is No Longer Available
15 28-34466         KEY 2
