5.7L EFI GM 350 V-8 1999-2001 - Serial 0L325977 Thru 0M299999 - Starter Motor (PG260-F1)

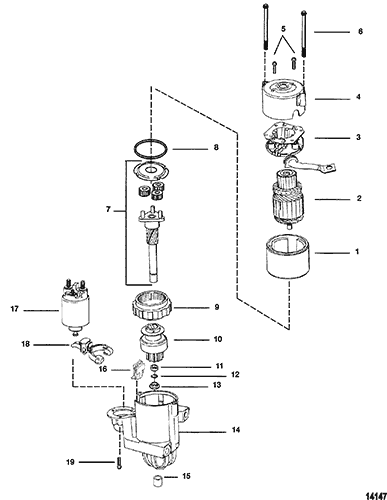

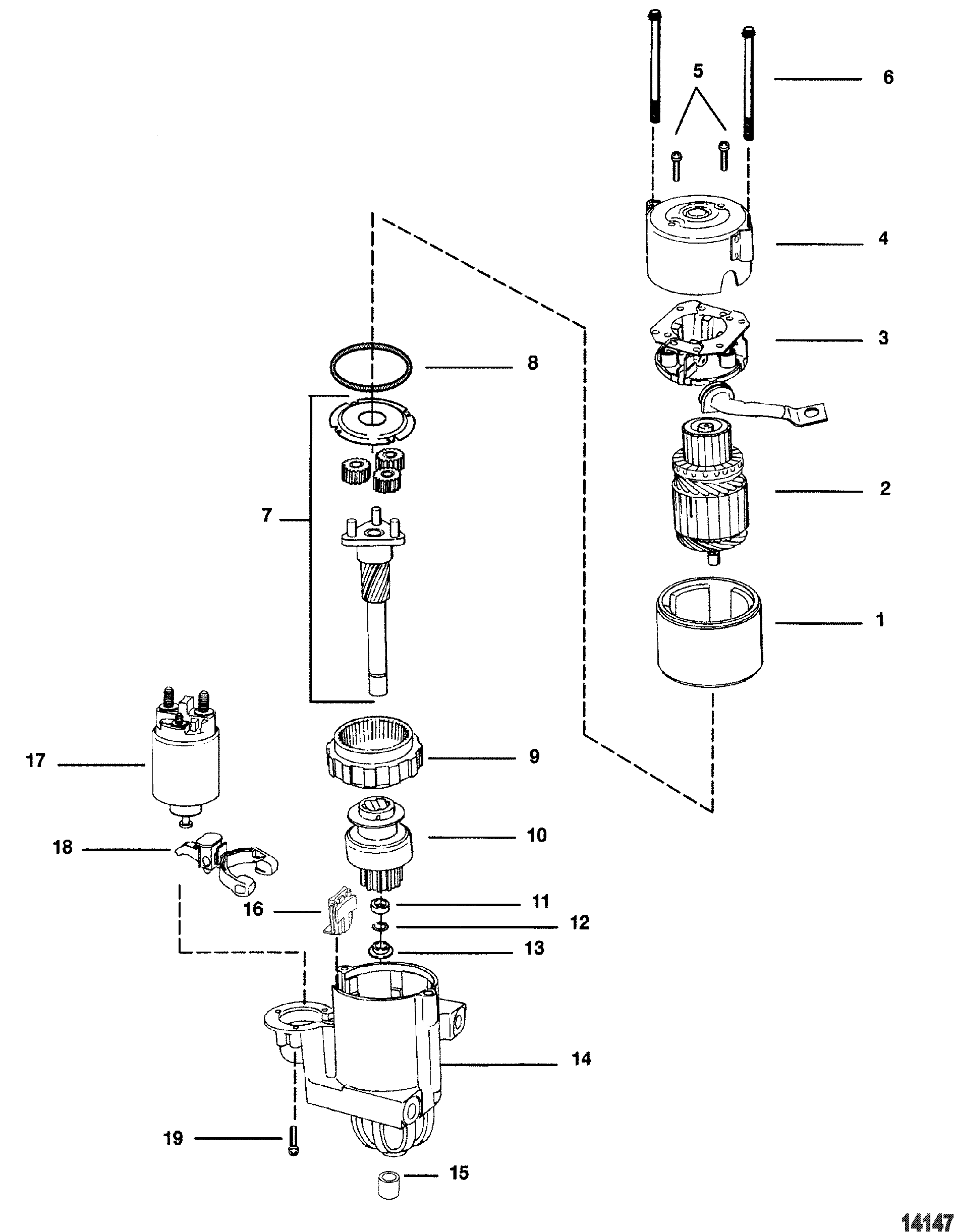

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 50-863007A1 620-5399M 676-9-15907   602-10099MD STARTER MOTOR ASSEMBLY 1

2 NSS         NOT SOLD SEPARATE, Armature 1
This Part is not sold separately
3 NSS         NOT SOLD SEPARATE, Brush Holder And Spring 1
This Part is not sold separately
4 NSS         NOT SOLD SEPARATE, Frame 1
This Part is not sold separately
5 NSS         NOT SOLD SEPARATE, Screw 2
This Part is not sold separately
6 16-803004         THRU BOLT, Add Size 1

6 10-803005         THRU BOLT, Add Size 1   This Part is No Longer Available
7 NSS         NOT SOLD SEPARATE, Shaft And Gear 1
This Part is not sold separately
8 NSS         NOT SOLD SEPARATE, Gasket 1
This Part is not sold separately
9 NSS         NOT SOLD SEPARATE, Gear 1
This Part is not sold separately
10 803003         DRIVE 1   This Part is No Longer Available
11 33291         COLLAR 1

12 53-33290         RING, Retaining 1

13 NSS         NOT SOLD SEPARATE, Collar Thrust 1
This Part is not sold separately
14 803001T         HOUSING, Drive 1   This Part is No Longer Available
15 23-814476         BUSHING 1   This Part is No Longer Available
16 NSS         NOT SOLD SEPARATE, Grommet 1
This Part is not sold separately
17 809463A1   676-9-15125 700-72450   SOLENOID KIT 1

18 NSS         NOT SOLD SEPARATE, Lever 1
This Part is not sold separately
19 NSS         NOT SOLD SEPARATE, Screw 3
This Part is not sold separately
