5.7L EFI GM 350 V-8 1999-2001 - Serial 0L325977 Thru 0M299999 - Fuel Filter

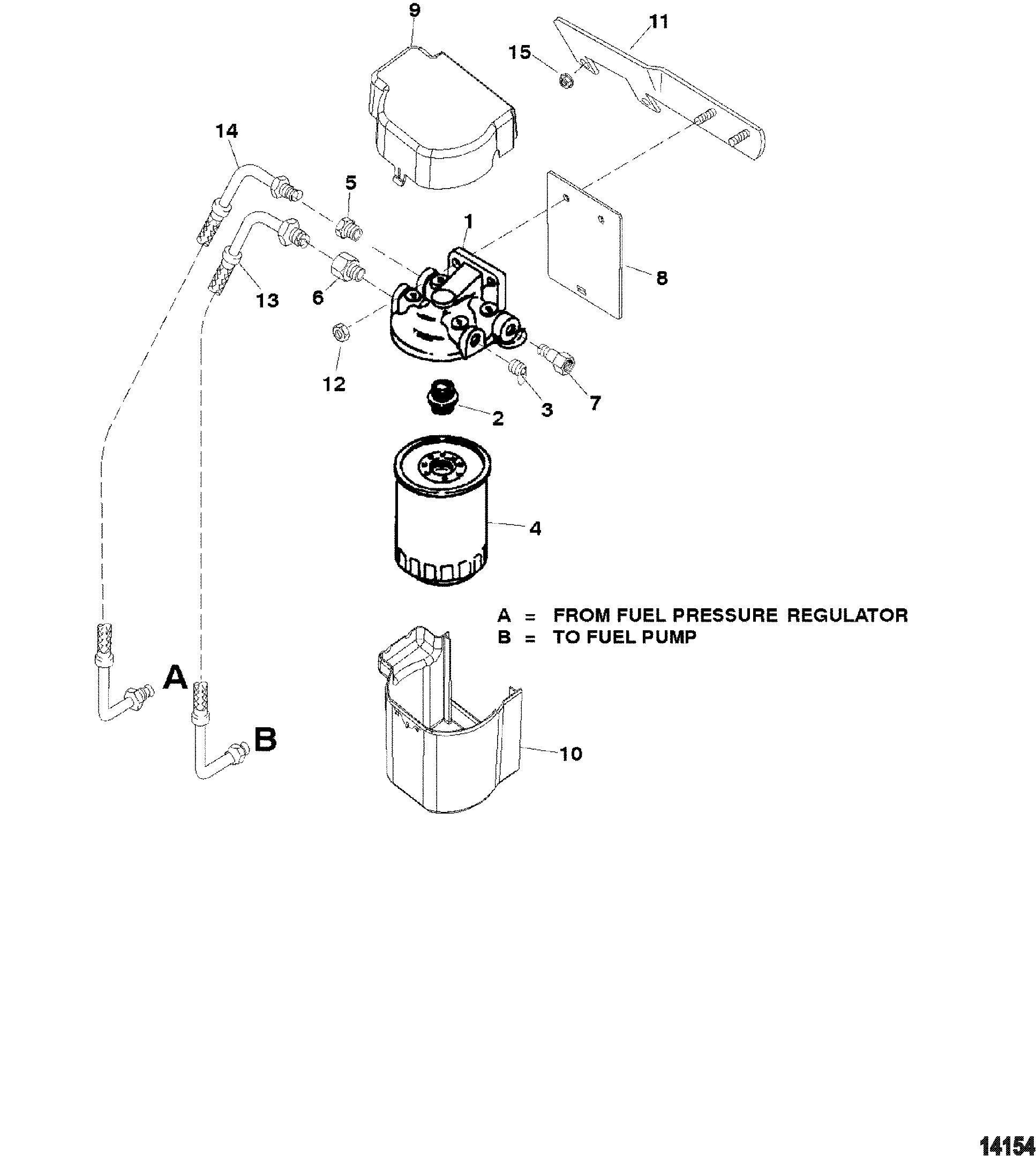

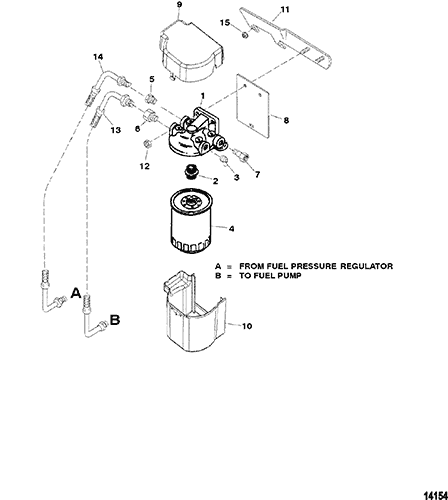

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 89876A3



BASE ASSEMBLY, Fuel Filter/Water Seperator 1

2 22-816133



FITTING 1

3 22-32561



PLUG, Pipe - Allen Head (.250-18) 1

4 35-802893Q01



FILTER, Fuel/Water Separating - Quicksilver Brand 1 35-802893Q
5 22-33821



CONNECTOR 1

6 22-808003



CONNECTOR 1

7 22-807958



FITTING, (1/4-18) 1

8 807956T



INSULATOR, Back 1

9 807806T         INSULATOR, Cap 1   This Part is No Longer Available
10 807807T         INSULATOR, Base 1   This Part is No Longer Available
11 807918T



BRACKET, Fuel Filter Base 1

12 11-826709111

700-21190
NUT, (.312-24) 2 11-45592
13 32-807953



LINE ASSEMBLY, Fuel 1

14 32-8M0045997



HOSE ASSEMBLY, Fuel Regulator to Filter 1 32-807954T
15 11-860069



NUT, (.375-16) 2
