5.7L Alpha EFI (TBI) GM 350 V-8 1995 - Serial 0F355305 Thru 0F752389 - Flywheel Housing

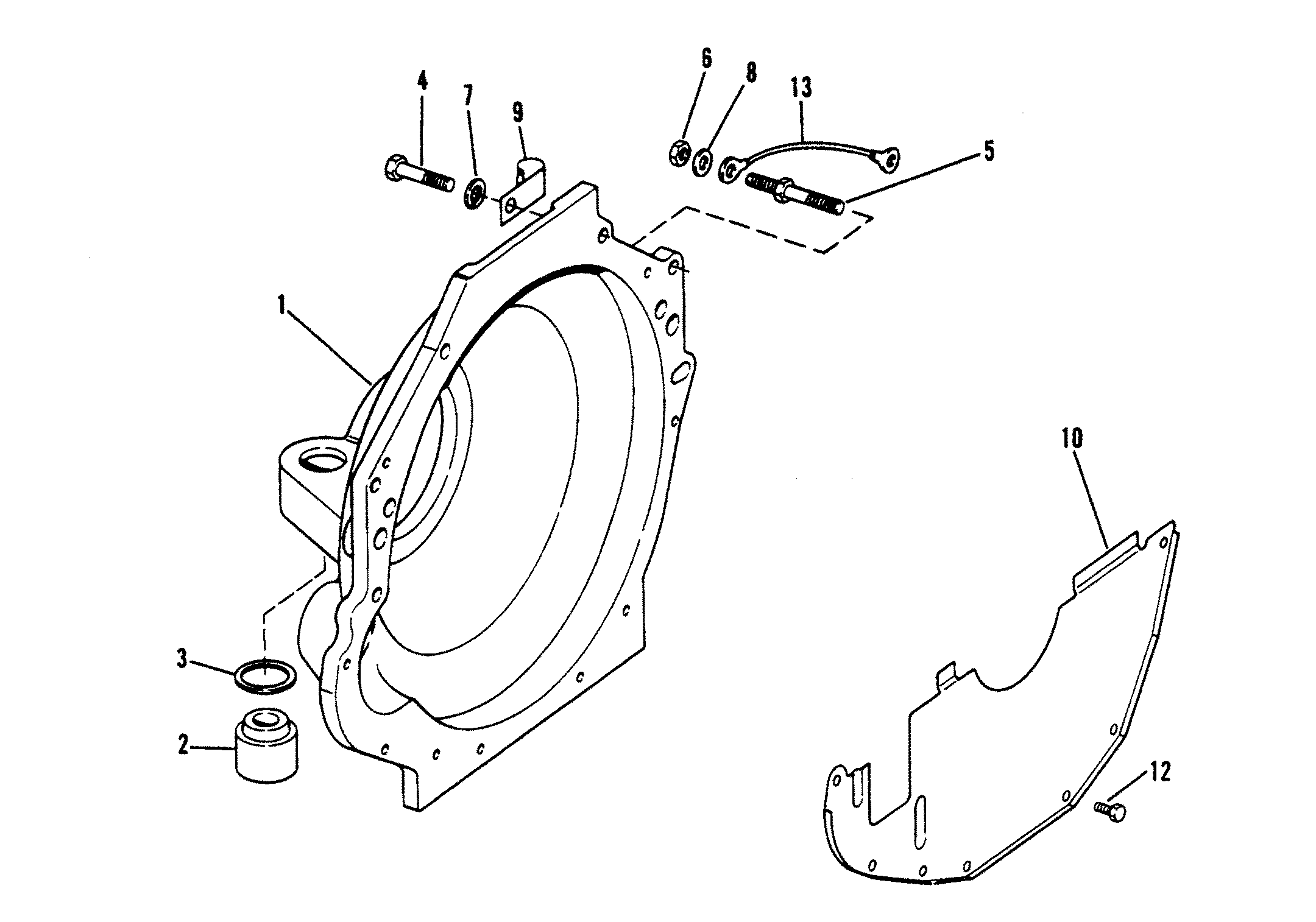

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 865657A04



FLYWHEEL HOUSING 1 99297A1
2 865329A02 620-91200


525-57621
RUBBER MOUNT 2

3 23-99322

700-21040

SPACER 2

4 10-37612



SCREW (1-1/4") 4

4 10-358701



SCREW (2") 2

5 16-64066



STUD 2

6 11-32219



NUT 2

7 13-35048

700-21495
or
700-21493
LOCKWASHER 7

8 12-20572



WASHER 1

9 54-78945



J-CLAMP 1

9 54-92850



CLAMP 2 818719A1
10 807260A2



COVER 1

12 10-32773



SCREW 7

13 84-62826A6



WIRE 1
