5.7L Alpha EFI (TBI) GM 350 V-8 1995 - Serial 0F355305 Thru 0F752389 - Cylinder Block And Camshaft

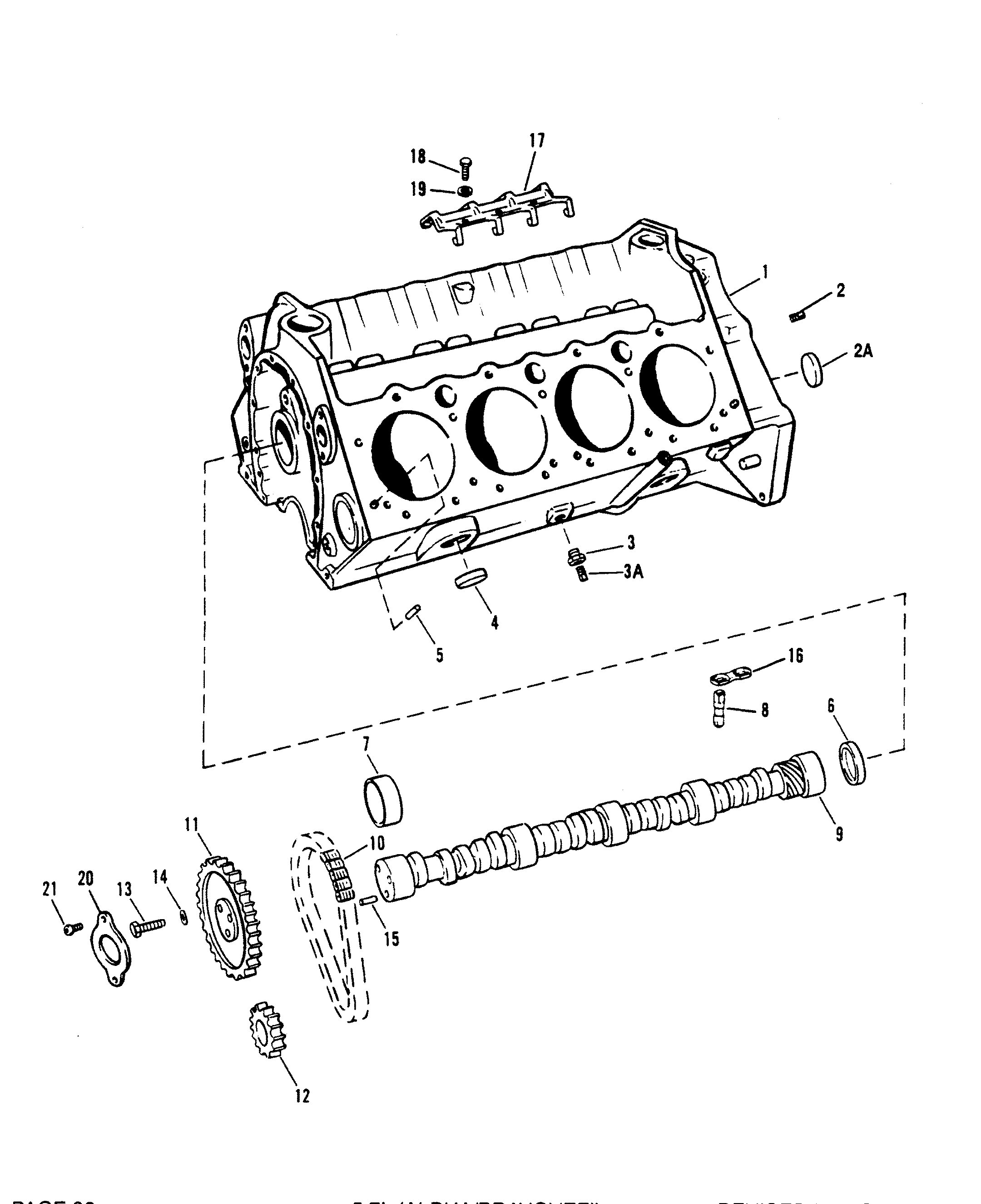

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 841-9717



CYLINDER BLOCK ASSEMBLY 1
This Part is No Longer Available (Includes only standard pistons, piston rings, crankshaft bearings and camshaft bearings)
2 22-48340



PIPE PLUG (1/4") 3

2A 19-816565



EXPANSION PLUG (15/32") 5

3 22-48556



BUSHING 2

3A 22-328022



PIPE PLUG 2 22-32802
4 19-34270



EXPANSION PLUG (1-5/8" DIA.) 8

5 17-35465



DOWEL PIN (5/16" DIA.) 4

6 22-72640



PLUG 1

7 23-85674



BEARING UNIT (SET) 1

8 17340T



LIFTER 16 17340
9 431-811658



CAMSHAFT 1

10 11985



TIMING CHAIN 1
This Part is No Longer Available
11 43-811659



SPROCKET 1
This Part is No Longer Available
12 43-42755T



SPROCKET 1 43-42755 This Part is No Longer Available
13 10-34505



BOLT (3/4") 3

14 12-848136



WASHER 3

15 17-843378



PIN 1 17-35312
16 17341T



RESTRICTOR 8 17341
17 811662



RETAINER 1

18 10-34500



SCREW 3

19 12-811664



LOCKWASHER 3
This Part is No Longer Available
20 845941



RETAINER 1 811663
21 10-17343



SCREW 2
No longer made, limited availability
- 27-75611A88

700-39017

GASKET SET-ENGINE OVERHAUL 1

- 92-809826



SEALER-RED RTV (WHERE APPLICABLE) 1 92-916011
- 34227Q02



PERFECT SEAL (WHERE APPLICABLE) 1 92-342271
- 807447R5



MARINE LONG BLOCK ENGINE 1 821151A1 (Inlcudes Internal Parts and Cylinder Heads)
