5.7L (2 BBL) GM 350 V-8 1996 - Serial 0F601000 Thru 0K001526 - Carburetor (Mercarb - 2 Barrel)

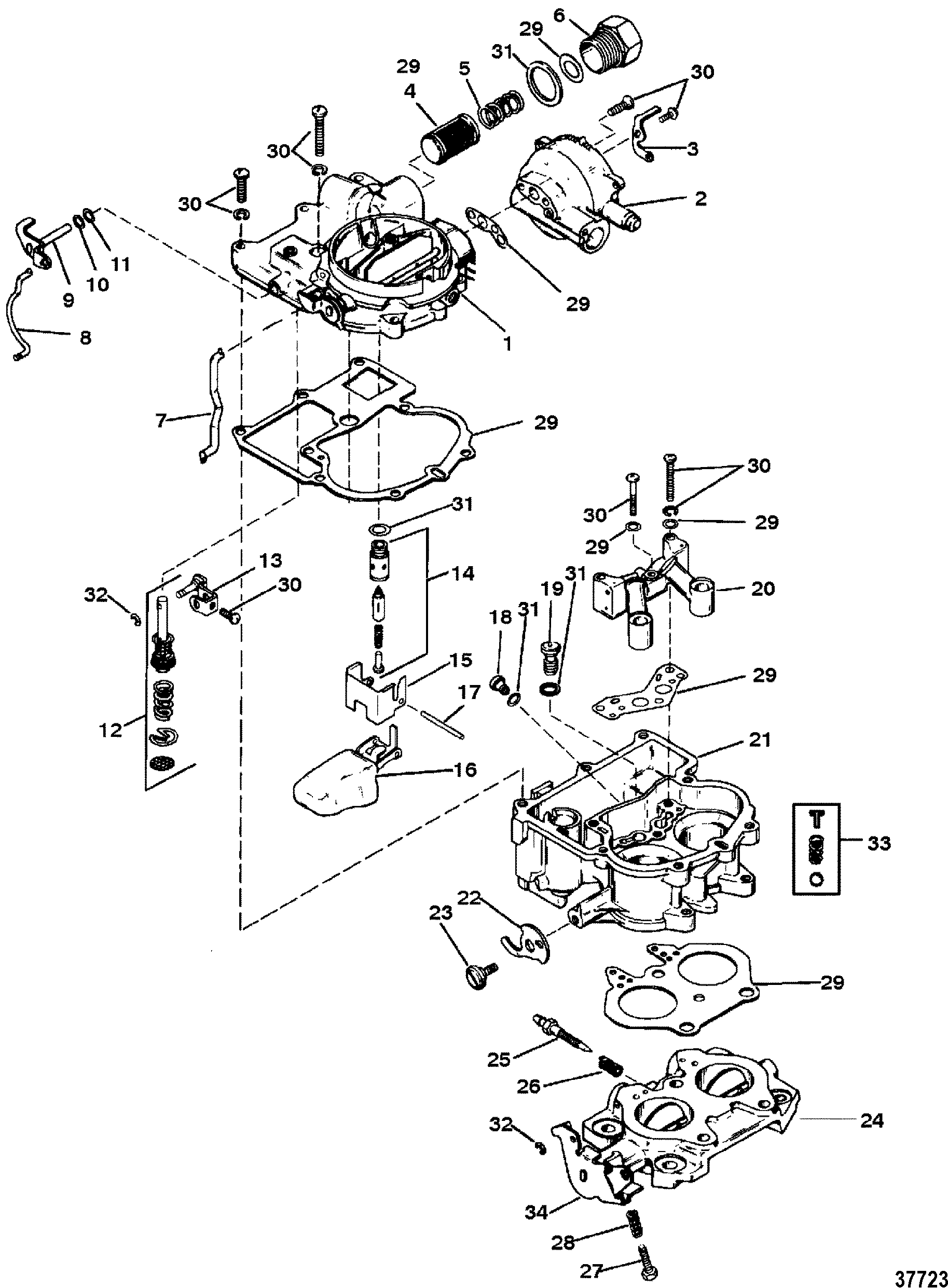

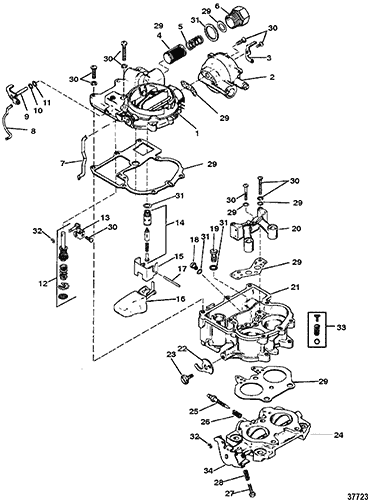

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 3310-807312A1         CARBURETOR ASSEMBLY 1

1 NSS         NOT SOLD SEPARATE, AIR HORN 1
This Part is not sold separately 1
2 NSS         NOT SOLD SEPARATE, CHOKE HOUSING 1
This Part is not sold separately 1
3 3302-9037         ARM, Choke 1

4 35-53336Q         STRAINER 1 35-53336
5 3302-9032         SPRING 1

6 3302-90341         CONNECTOR 1   This Part is No Longer Available
7 3302-9042         ROD, Choke 1

8 3302-8109201         ROD 1

9 3302-8237251         LEVER 1   This Part is No Longer Available
10 3302-9039         WASHER 2

11 3302-810919         WASHER 1

12 3302-96551         PUMP KIT, Accelerator 1

13 3302-810916         ARM 1

14 3302-804689         SEAT KIT, Inlet 1 3302-9029
15 3302-803854         PLATE, Baffle 1 3302-90381
16 3302-9031         FLOAT 1

17 3302-90301         PIN, Float 1

18 3302-9058         JET, Main 2

19 3302-9059         JET POWER 1

20 3302-9436T2         VENTURI 1 3302-94362 This Part is No Longer Available
21 NSS         NOT SOLD SEPARATE, CARBURETOR BODY 1
This Part is not sold separately 1
22 3302-9048         CAM 1

23 3302-9049         SHAFT 1

24 NSS         NOT SOLD SEPARATE, FLANGE ASSEMBLY 1
This Part is not sold separately 1
25 3302-9052         SCREW 1

26 3302-9053         SPRING 1

27 3302-9060         SCREW 1

28 3302-9054         SPRING 1

29 3310-810929004         GASKET SET 1 3302-90611
30 3302-8109301         SCREW KIT 1

31 3302-9044         PACKING SET 1 3302-90441
32 3302-808675         CLIP, Spring 2

33 3302-809520         CHECK BALL KIT 1

34 3302-834989         LEVER/SHAFT ASSEMBLY, Throttle 1   This Part is No Longer Available
