5.7L (2 BBL) GM 350 V-8 1997 - Serial 0K001527 Thru 0K999999 - Remote Oil Filter

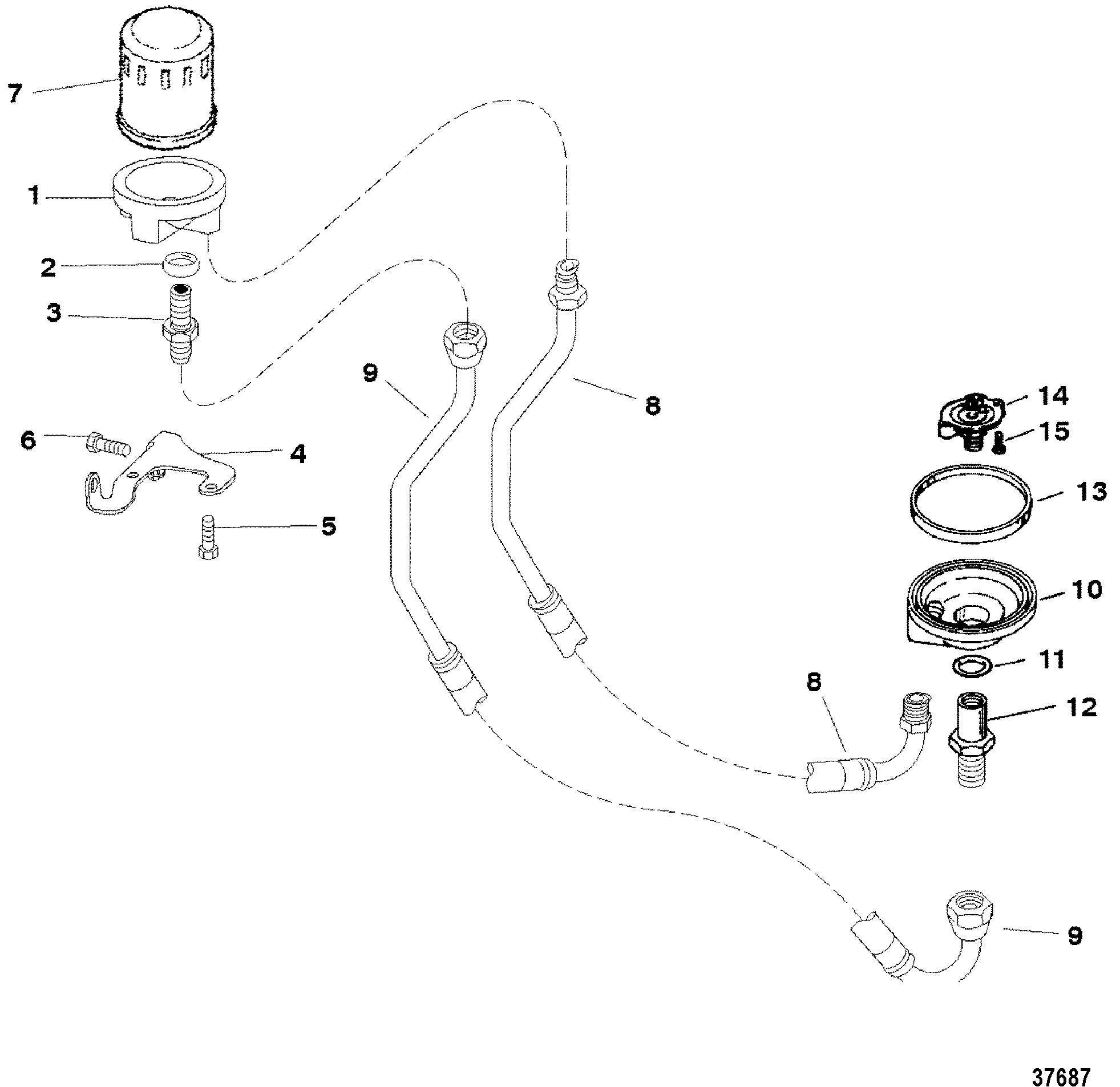

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 35-806329T



ADAPTOR, Oil Filter 1

2 26-42077



SEAL 1

3 22-806328



FITTING 1

4 807459T



BRACKET 1

5 10-98257



SCREW, (.312-18 x .500) 2

6 10-98261



SCREW, (.375-16 x .750) 1

7 35-866340Q03
676-9-57825


FILTER, Oil 1 14957
8 32-860207A1



HOSE, Oil 1 32-860207
9 32-860208



HOSE ASSEMBLY, Oil 1

10 35-818400A1



ADAPTOR 1
OIL HOSE (REF. #8) ENTERS IN THE BOTTOM
10 35-818400A1



ADAPTOR 1 35-860451T OIL HOSE (REF. #8) ENTERS IN THE SIDE
11 26-42077



SEAL 1
3
12 22-806121



FITTING 1

13 27-91892

700-32390

GASKET 1

14 71920



VALVE ASSEMBLY, Filter 1 53338
15 10-54786



SCREW, (.312-18 x 1.250) 2

- 27-806871A96

700-39018

GASKET SET, Overhaul 1
