5.0L (2 BBL) GM 305 V-8 1998-2001 - Serial 0L015751 Thru 0M599999 - Carburetor And Throttle Linkage (Two Barrel)

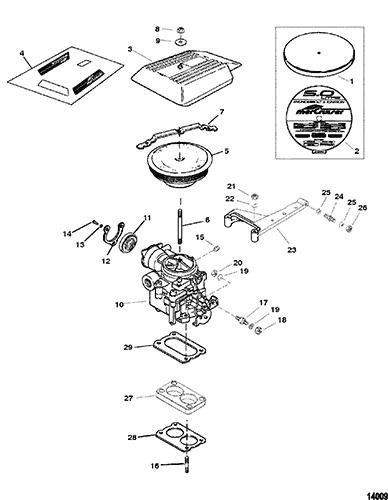

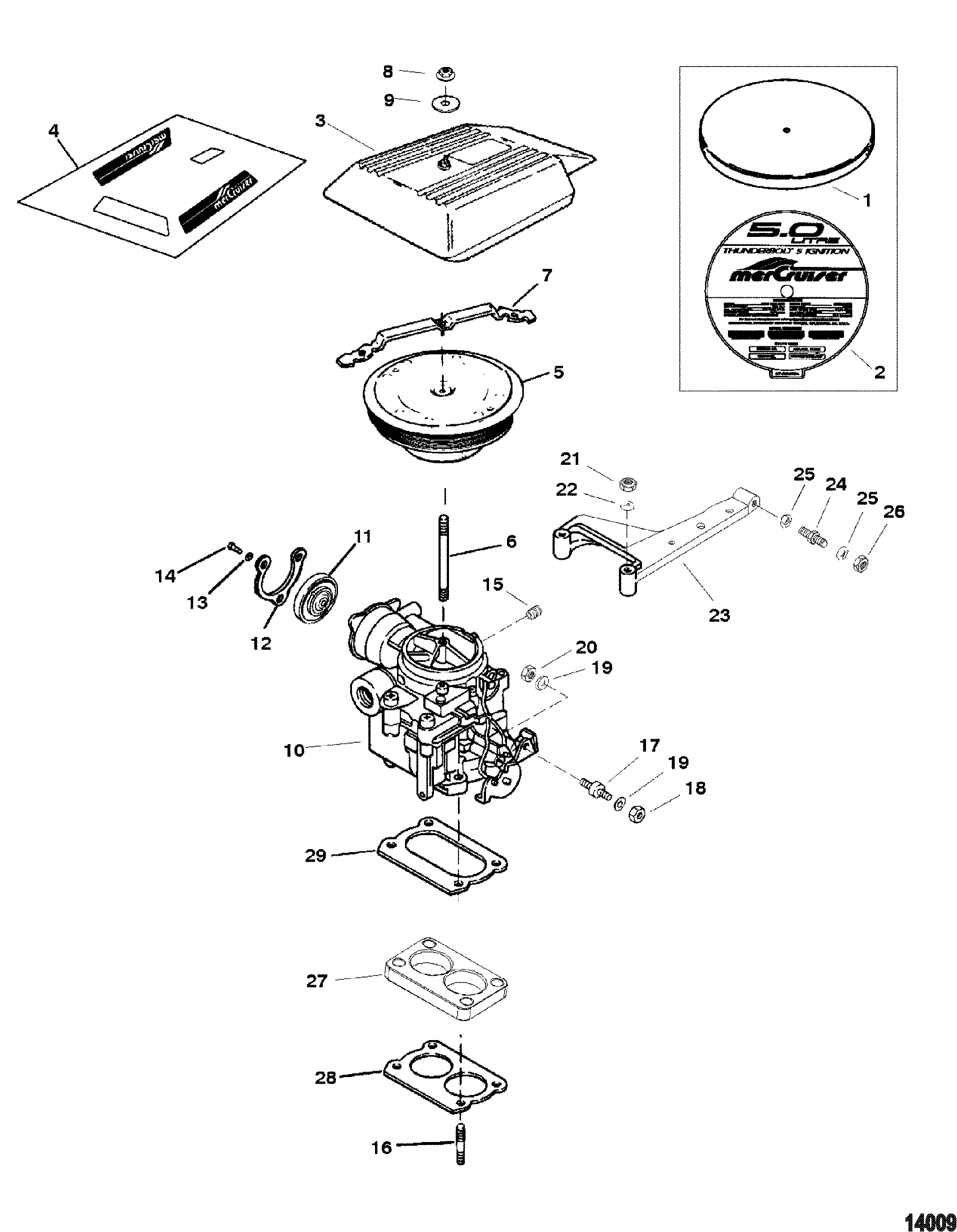

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 14605T1         COVER, Carburetor 1   This Part is No Longer Available (5.0L Alpha)
2 37-8615081         DECAL SET 1
(5.0L Alpha)
3 18484A3         COVER 1
(5.0L Bravo And 5.7L Alpha/Bravo)
4 37-861314A10         DECAL SET 1   This Part is No Longer Available (5.0L Bravo)
4 37-861314A12         DECAL SET 1
(5.7L Alpha/Bravo)
5 805016A1   676-9-31101     FLAME ARRESTOR 1
(With Out Molded Hose Retainer)
5 863200         FLAME ARRESTOR 1
(With Molded Hose Retainer)
6 16-805295         STUD, (.250-20/.250-28 x Special) 1

7 805313         RETAINER 1   This Part is No Longer Available
8 11-8267139         NUT, (.250-28) 1

9 12-86400         WASHER 1

10 3310-864942A01         CARBURETOR ASSEMBLY 1 3310-861448A1 (5.0L Alpha/Bravo) (See " Carburetor (Mercarb)" For Breakdown)
10 3310-864943A01         CARBURETOR ASSEMBLY 1 3310-861245A1 (5.7L Alpha/Bravo) (See "Carburetor (Mercarb)" For Breakdown)
11 70125A02         COVER, Choke 1 70125A1
12 10-33047         SCREW 3   This Part is No Longer Available
13 13-26995         LOCKWASHER, (#8) Stainless Steel 3

14 53-805140         PLATE 1

15 22-56800         PLUG, Pipe (.0625-27) 1

16 16-65868         STUD, (.312-18/.312-24 x 2.120) 2

16 16-807849         STUD, (.312-18/.312-24 x 3.380) 2

17 16-96112         STUD, (.250-28 x 2.00), Throttle Cable Anchor 1

18 11-8267089         NUT, (.250-28) 1

19 12-29245     700-21490   WASHER, (.281 x .500 x .060) Stainless Steel 2

20 11-8267139         NUT, (.250-28) 1

21 11-862902     700-19354   NUT, (.312-24) 4

22 12-20084     700-21664   WASHER, (.328 x .562 x .062) 4

23 805489T         BRACKET 1

24 16-38525         STUD 1

25 12-24664         WASHER, (M4 x 20) 2

26 11-8267139         NUT, (.250-28) 1

27 807726A2         ADAPTOR 1

28 27-8079821   676-9-61011     GASKET 1
3
29 27-861246     700-39016   GASKET 1
3
- 11-863001         NUT, (.250-28) 1

- 27-861246A05     700-39016   GASKET SET 1 27-861246A98
