350 Mag MPI Alpha-Bravo - Serial 0M300000 Thru 0M599999 - Standard Cooling System (Multi Point Drain)

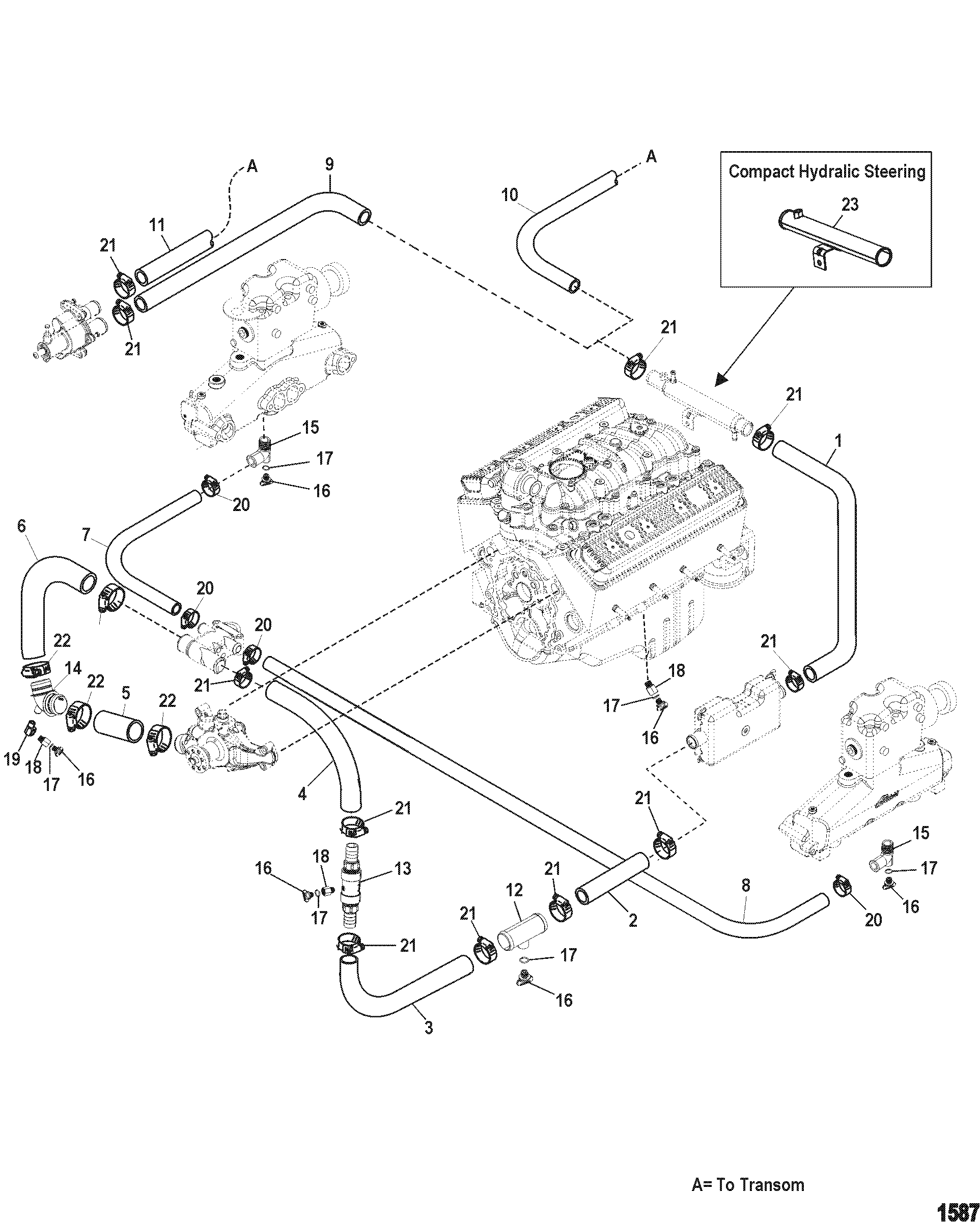

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 32-8600891         HOSE, Molded 1

2 32-866331         HOSE, (4.00 Inches), Fuel Cooler To Drain Fitting 1 32-80769440 (Cut To Length)
3 32-864578         HOSE, Drain Fitting To Check Valve 1

4 32-864579         HOSE, Check Valve To Thermostat Housing 1

5 32-842413         HOSE, Circulating Pump To Drain Elbow 1   This Part is No Longer Available
6 32-864703         HOSE, Drain Elbow To Thermostat Housing 1

7 32-863459         HOSE, Thermostat Housing To Starboard Manifold 1

8 32-863458         HOSE, Thermostat Housing To Port Manifold 1

9 32-8080441         HOSE, Molded, Sea Pump To Power Steering Cooler 1
(Bravo)
10 32-807661         HOSE, Transom To Power Steering Cooler 1
(Alpha)
11 32-865672079         HOSE, (96.00 Inches Bulk), Sea Water Pump To Drive 1 32-1743579 (Bravo)
12 861505         FITTING, Drain Tee 1

13 21-862271A1         CHECK VALVE 1

14 8615871         ELBOW, Drain 1

15 22-862210A01   676-9-41206 700-13991   ELBOW KIT, Drain 2 22-806926A1
16 22-806608A02     700-13992   PLUG KIT, (.500-13) Royal Blue, Fitting 9 22-806608A1
17 25-32509         O-RING, (.489 x .070) 9

18 22-860088         BUSHING 4

19 22-46982         FITTING, (90 Degree) 1

20 54-815504216         CLAMP, Worm Gear (1.56 Diameter), Hose 4

21 54-815504222         CLAMP, Worm Gear (1.98 DIameter), Hose 11

22 54-815504228         CLAMP, Worm Gear, Hose 4

23 863841T         TUBE, Water, Brass 1
(Compact Hydralic Steering)
