350 Mag MPI Alpha-Bravo - Serial 0M300000 Thru 0M599999 - Standard Cooling System (Easy Drain)

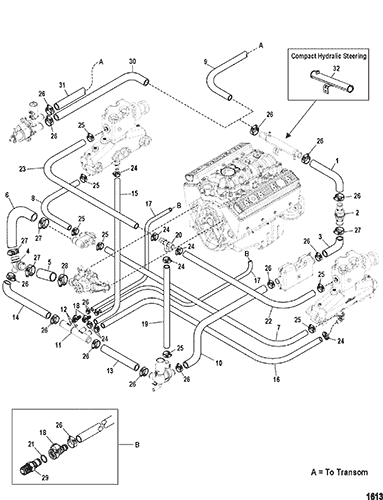

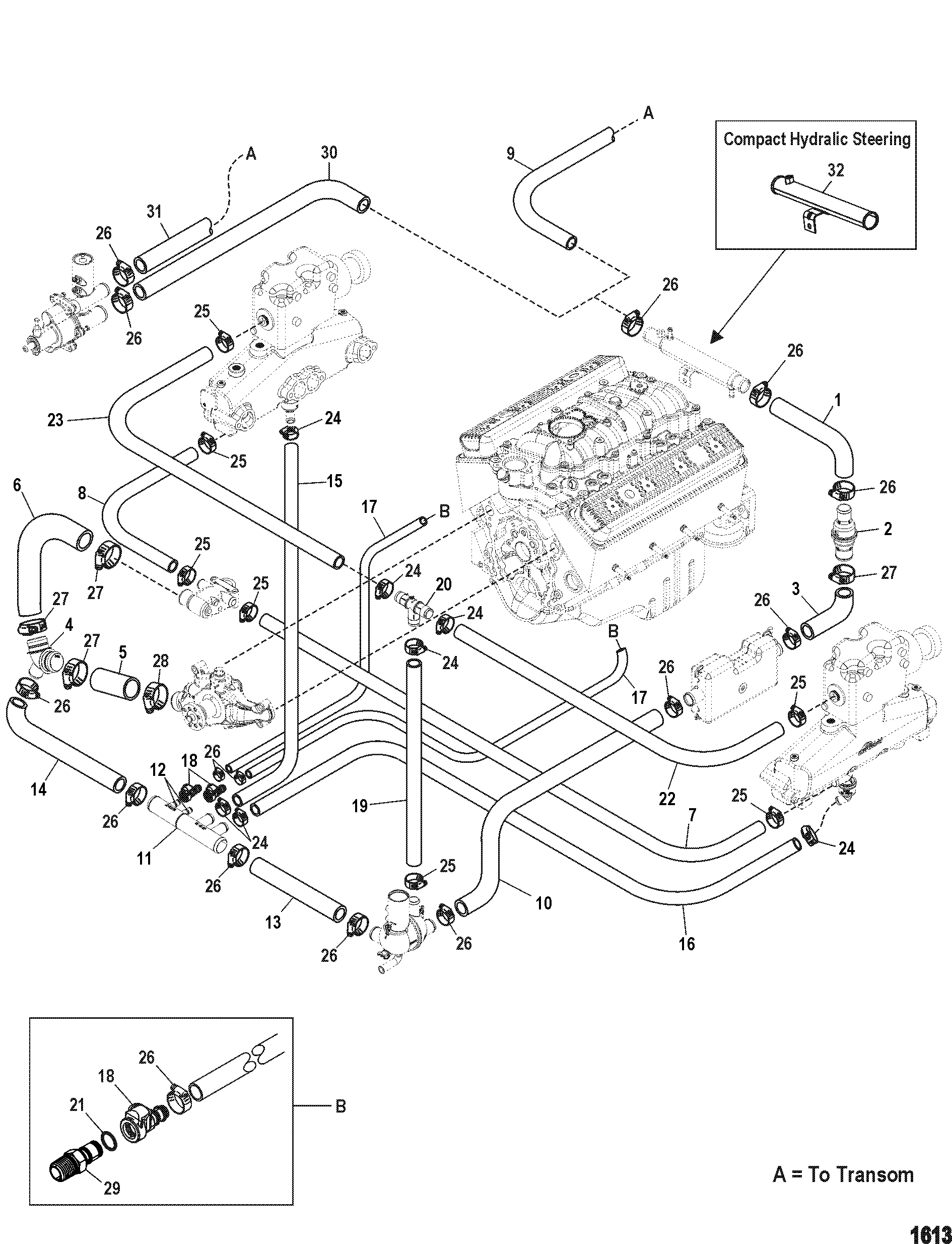

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 32-863489         HOSE, Power Steering Cooler To Check Valve 1

2 21-864206A1         CHECK VALVE ASSEMBLY 1

3 32-863623         HOSE, Check Valve To Fuel Cooler 1

4 32-863456A1         FITTING, Y 1 863455 1
5 32-862274         HOSE, Lower Circulation Pump 1   This Part is No Longer Available 1
6 32-863456A1         HOSE, Y Fitting To Circulating Pump 1 32-863453 1
7 32-863458         HOSE, Thermostat Housing To Port Manifold 1
1
8 32-863459         HOSE, Thermostat Housing To Starboard Manifold 1

9 32-807661         HOSE, Transom To Power Steering Cooler 1
1
10 32-863670         HOSE, Fuel Cooler To Water Distribution Housing 1
(With Power Steering) 1
10 32-863937         HOSE, Fuel Cooler To Water Distribution Housing 1
(With Out Power Steering) 1
11 22-864621A1         FITTING, Lower Distribution 1 22-863760 1
12 25-627021         O-RING, (.301 x .070) 2

13 32-863490         HOSE, Water Drain Accumulator To Distribution Fitting 1
1
14 32-863491         HOSE, Distribution Fitting To "Y" Fitting 1
1
15 32-4285069         HOSE, (44.00 Inches Bulk), Starboard Manifold To Distribution Fitting 1
(Cut To 22.00 Inch Length) 1
16 32-864599         HOSE, Port Manifold To Distribution Fitting 1 32-864258 1
17 32-8M0062590         HOSE, Cylinder Block Drain To Distribution Fitting 2 32-8623174 (Port-23 Inch) (Starboard-17.00 Inch) 1
18 22-862225         FITTING, Pushlock 4
1
19 32-863465         HOSE, Drain Accumulator To Tee Fitting 1
1
20 22-863464         FITTING, Tee 1
(Bravo Only)
20 22-8M0065823         FITTING ASSEMBLY 1 22-863464A1 (Alpha Only) 1
NS 23-864327         BUSHING, Orifice 1
(Alpha Only) 1
NS 25-864353         O-RING 1
(Alpha Only) 1
21 25-627021         O-RING, (.301 x .070) 2

22 32-863496         HOSE, T Fitting To Port Elbow 1
1
23 32-863828         HOSE, T Fitting To Starboard Elbow 1

24 54-815504212         CLAMP, Worm Gear, Hose 2

25 54-815504216         CLAMP, Worm Gear (1.56 Diameter), Hose AR

26 54-815504222         CLAMP, Worm Gear (1.98 DIameter), Hose 2

27 54-815504228         CLAMP, Worm Gear, Hose 1

28 54-815504232         CLAMP, Worm Gear (2.50 Diameter), Hose AR

29 22-862603         FITTING, Male Quick Connector (Threaded) 2

30 32-863611         HOSE, Sea Water Pump To Power Steering Cooler 1
1
31 32-865672079         HOSE, Sea Water Pump To Water Pick Up 1 32-86334364
32 863841T         TUBE, Water, Brass 1
(Compact Hydraulic Steering)
