350 Mag MPI Alpha-Bravo - Serial 0M300000 Thru 0M599999 - Pistons And Connecting Rods

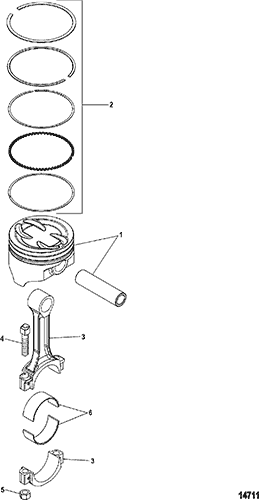

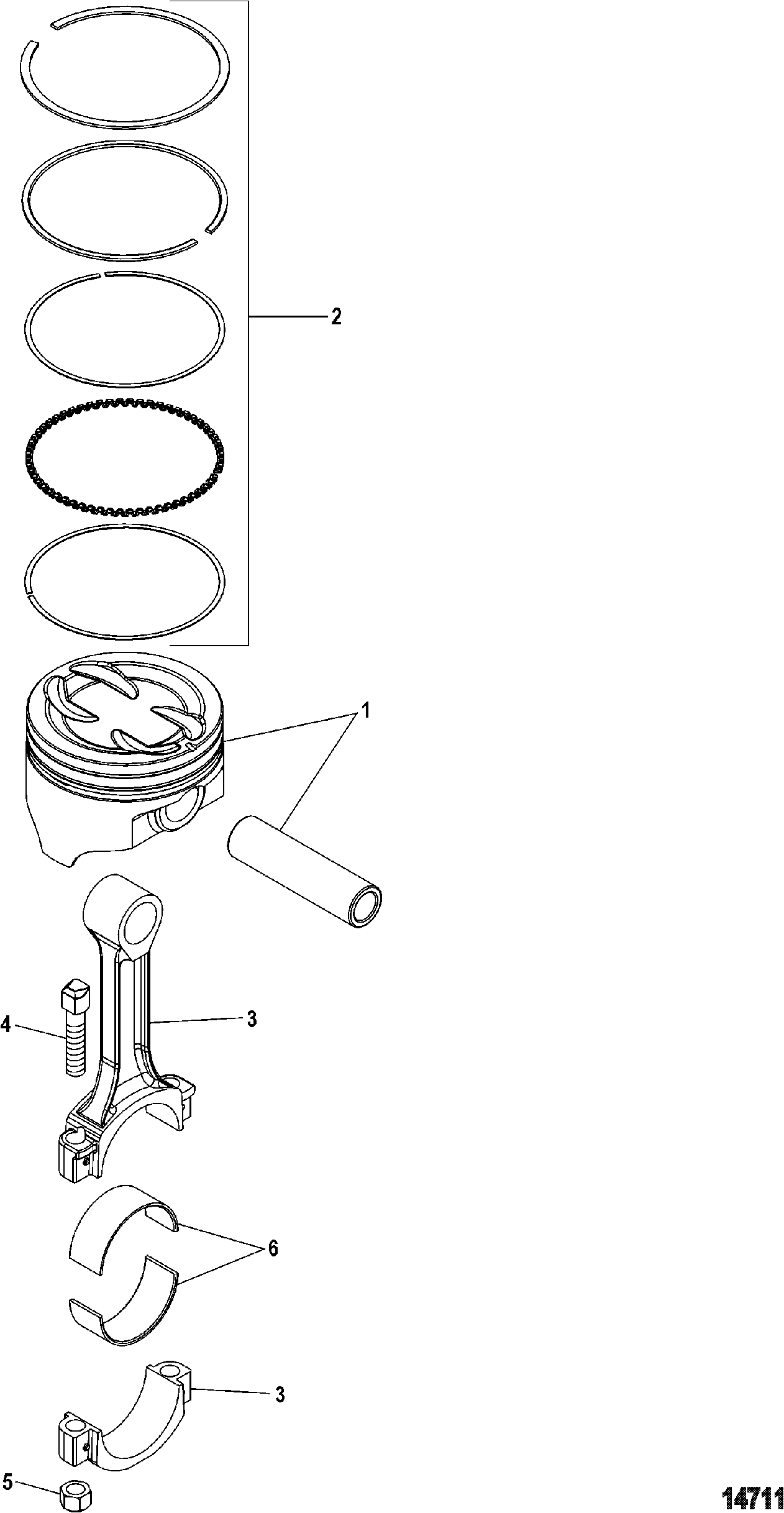

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 735-802557T         PISTON ASSEMBLY, Standard 8
(Standard) (5.0L)
1 735-802558T         PISTON ASSEMBLY, .030 Oversize AR
(.030 Oversize) (5.0L)
1 735-835001T         PISTON ASSEMBLY 8
(Standard) (350) 4
1 735-835002T         PISTON ASSEMBLY AR
(.5MM Oversize) (350)
1 735-879345T91         PISTON ASSEMBLY 8 735-864175A3 (Standard) (6.2L) 1
2 39-802559         RING SET, Piston 8
(Standard) (5.0L) 4
2 39-808570         RING SET, Piston AR 39-802560 (.030 Oversize) (5.0L)
2 39-8018611         RING SET, Piston 8 39-801861T1 (Standard) (350) 4
2 39-835000         RING SET, Piston AR
(.5MM Oversize) (350)
2 39-864176A1         RING SET, Piston 8
(Standard) (6.2L) 1
3 614-8164T         CONNECTING ROD ASSEMBLY 8
(5.0L/350) 4
3 614-862587A3         CONNECTING ROD ASSEMBLY 8
(6.2L)
4 10-85802         SCREW, (.375-24 x Special), Connecting Rod 16   This Part is No Longer Available
5 11-37493         NUT, (.375-24) 16

5 11-862573         NUT (MX-6.2L) 16

6 23-85701         BEARING 8
(Pair-Standard) (5.0L/350) 4
6 23-85702         BEARING AR
(Pair- .001 Undersize) (5.0L/350)
6 23-85703         BEARING AR
(Pair- .002 Undersize) (5.0L/350)
6 23-85704         BEARING AR
(Pair- .010 Undersize) (5.0L/350)
6 23-85705         BEARING AR
(Pair- .020 Undersize) (5.0L/350)
6 849391T         BEARING SET, Standard - 8 Pair 1 31-849391 (6.2L)
6 8M0050745         BEARING SET, (.001 Oversize) 8 Pair 1 31-849392 (6.2L)
6 8M0053548         BEARING SET, (.001 Undersize) 8 Pair 1 31-849393 (6.2L)
