350 Mag MPI Alpha-Bravo - Serial 0L331599 Thru 0M299999 - Electrical Components

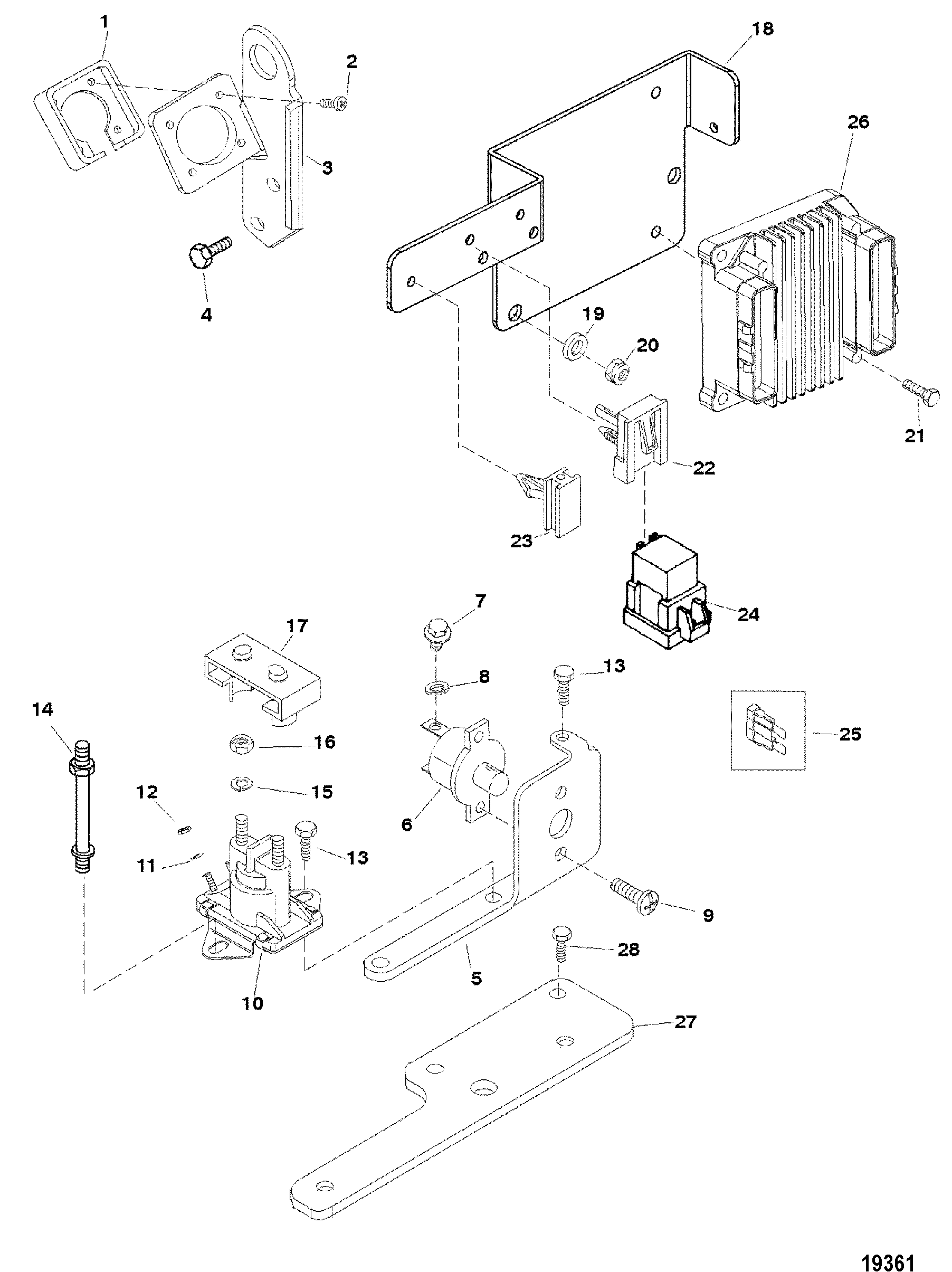

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # SEI # Description Num Req. Superceded From Special Notes
1 26079A2



PLATE KIT, Wire Harness Mount 1

2 10-15001



SCREW, (#8-16 x .875) 4

3 865480T



BRACKET, Harness Mounting/Lifting Eye 1 807453T
4 10-98261



SCREW, (.375-16 x .750) 2

5 899719T01



BRACKET, Electrical 1 805368T
6 88-11178A01



BREAKER, Circuit - 50 Ampere 1 88-806950
7 10-68513



SCREW, (#10-32 x .375) Stainless Steel 2

8 13-26996



LOCKWASHER, (#10) Stainless Steel 2

9 10-57583



SCREW, (#8-32 x .375) 2

10 89-96158T


602-SW101 SOLENOID 1

11 13-26995



LOCKWASHER, (#8) Stainless Steel 2

12 11-26419



NUT, (#8-32) Brass 2

13 10-805564



SCREW, (.250-20 x .750) 2

14 16-805459



STUD, Mercathode Mounting 1

15 13-26992



LOCKWASHER, (.250) Stainless Steel 2

16 11-94330



NUT, (.250-20) Brass 2

17 85-97861



INSULATOR 1

18 861714T



BRACKET, ECU Mounting 1

19 12-35462



WASHER, (.2656 x .625 x .0625) Stainless Steel 3

20 11-64015



NUT, (.250-20) 3

21 10-28636


602-98-102-13 SCREW, (.250-20 x .750) 3

22 86-865205



CLIP 2 54-804351 6
23 54-804352



CLIP 1
6
24 86-865202T



RELAY 2 807057T 6
25 88-83296910



FUSE, Red - 10 Ampere 2 88-804638 6
25 88-83296915



FUSE, Mini - Blue - 15 Ampere 1
6
26 891895A01



ECM, Engine Control Module 1 861927T3
27 861881



BRACKET, Electrical Mounting 1
28 10-73286



SCREW, (.250-20 x .500) Stainless Steel 1
