350 Mag MPI Alpha-Bravo - Serial 0L010019 Thru 0L339999 - Cylinder Head And Rocker Cover

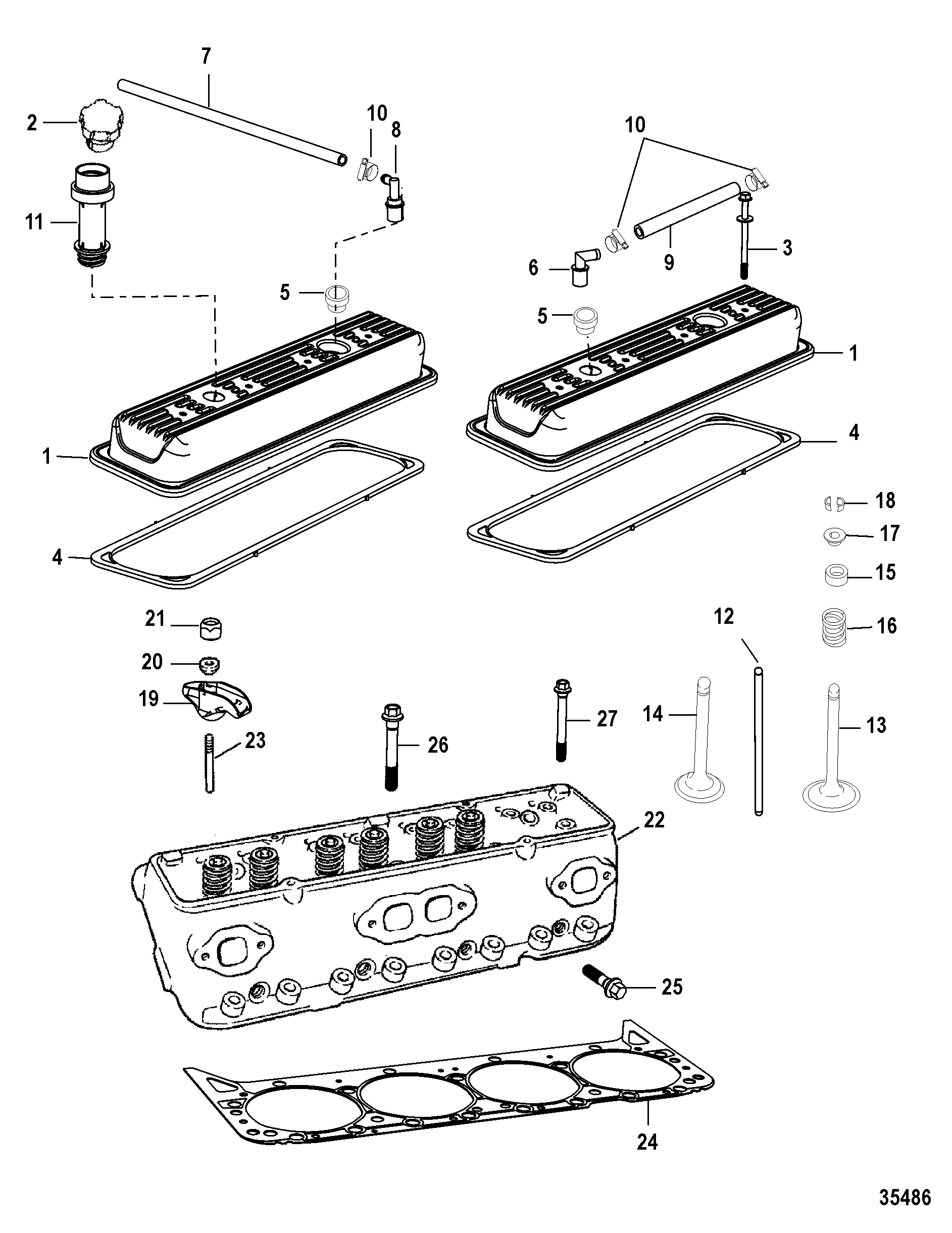

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 809995         COVER, Rocker (W/ OIL FILL HOLE) 1

1 809996         COVER, Rocker (W/O OIL FILL HOLE) 1

2 36-18710002         CAP, Oil Fill 1 36-187101
3 10-17344         SCREW 8

4 27-17467   676-9-61305 700-30357   GASKET, Rocker Cover 2
2
5 25-52188         GROMMET 2

6 97850T         ELBOW, 90 Degree, Breather 1 97850
7 32-8M0062321         HOSE 1 32-80617435
8 8M2017060         VALVE, PCV 1 21-861476
9 32-1589424         HOSE, Breather 1 32-1589418
10 54-815504105         CLAMP, Worm Gear 2

11 807688T         TUBE, Oil Fill 1

12 173391         PUSH ROD 16

13 8243171         VALVE, Exhaust (STANDARD) 8

13 8243181         VALVE, Exhaust (.030 O.S.) AR
3
14 809992         VALVE, Intake (STANDARD) 8

15 26-976641         SEAL (INTAKE AND EXHAUST) 16
2
16 24-483471         SPRING 16

17 483481         CAP 16

18 28-547971         KEY 32

19 35329         ARM KIT, Rocker 16

20 35331         BALL, Rocker Arm 16

21 11-34516         NUT 16

22 938-803860T         CYLINDER HEAD ASSEMBLY 2 938-97181
23 16-34522         STUD (.003 O.S.) AR
3
23 16-34521         STUD (.013 O.S.) AR   This Part is No Longer Available 3
24 75611001         GASKET 2 27-75611 2
25 10-11968         SCREW, (.437-14 x 1.750) 16

26 10-119671         SCREW, (.437-14 x 3.00) 4

27 10-11966         SCREW, (.437-14 x 3.750) 14

28 54-92850         CLAMP 1

29 23-91034         SPACER, (.380 x 1.00 x .530) 1
No longer made, limited availability
30 10-37612         SCREW, (.375-16 x 1.250) 1

- 27-75611A98         GASKET SET, Engine Overhaul 1
