454 Mag Bravo (Gen 5) GM V-8 1995-1996 - Serial 0F305000 Thru 0F801699 - Cylinder Block And Camshaft

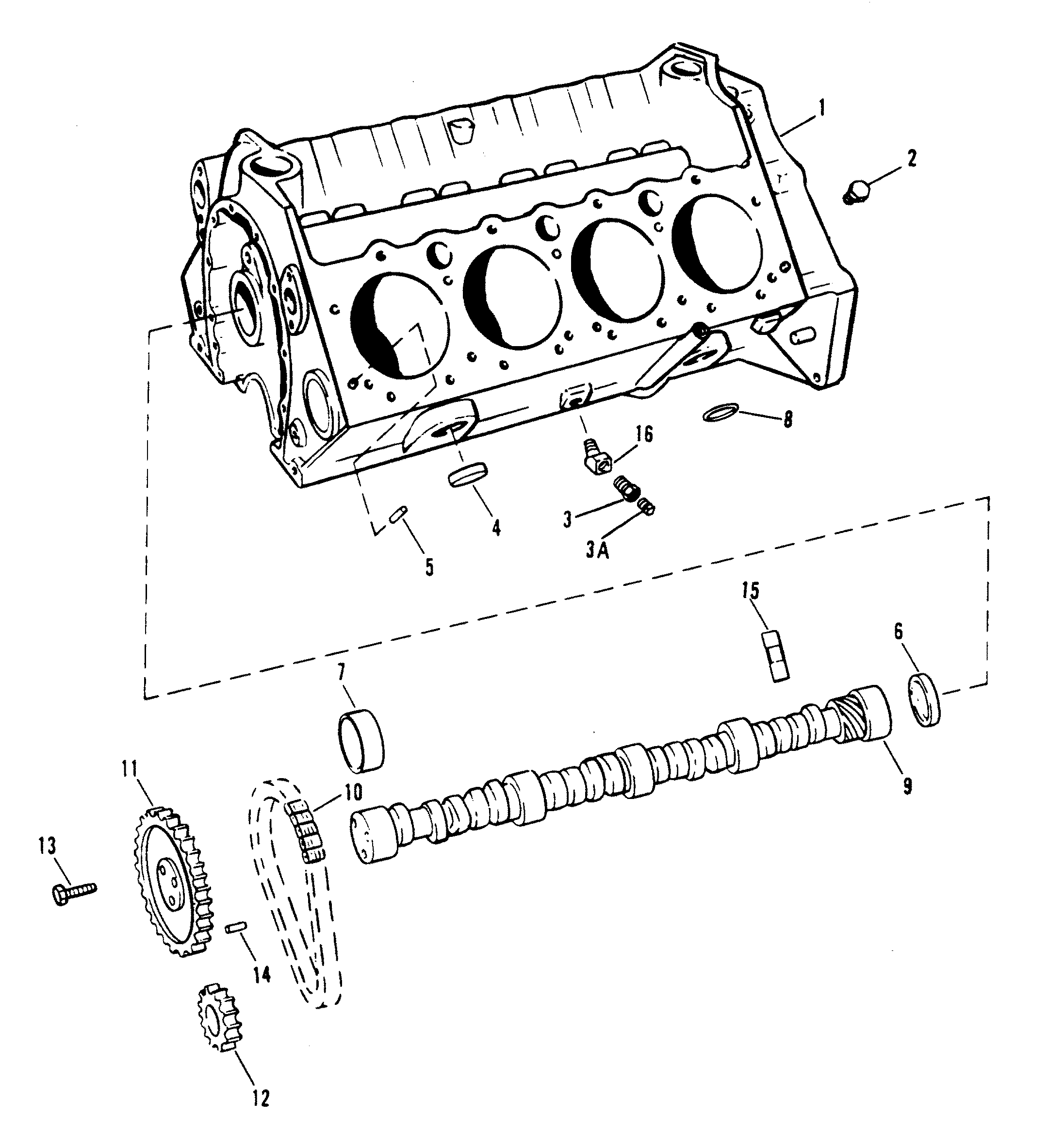

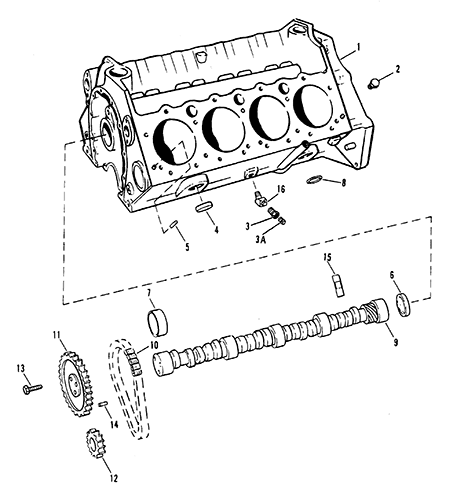

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons, And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust Plate
- Flame Arrestor
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Miscellaneous Parts and Accessories
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Shift Bracket
- Starter And Alternator
- Starter Motor (2 - 7-8" Diameter End Cap)
- Thermostat Housing (Standard Cooling)
- Weber Carburetor
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 842-801999 | CYLINDER BLOCK | 1 | This Part is No Longer Available MARINE LONG BOCK ENGINES INCLUDE INTERNAL PARTS AND CYLINDER HEADS | |||||
| 2 | 22-48340 | PIPE PLUG (1/4") | 4 | 1 = CONTENTS OF GASKET SET [27-811547A94] | |||||
| 2 | 22-48358T | PIPE PLUG (3/8") | 2 | 22-48358 | |||||
| 3 | 22-48556 | BUSHING | 2 | ||||||
| 3A | 22-328022 | PIPE PLUG | 2 | 22-32802 | |||||
| 4 | 19-34270 | EXPANSION PLUG (1-5/8" DIA.) | 8 | ||||||
| 5 | 17-52190 | DOWEL PIN | 4 | ||||||
| 6 | 19-94140 | EXPANSION PLUG | 1 | ||||||
| 7 | 23-85684 | BEARING SET | 1 | ||||||
| 8 | 25-69756 | O-RING (1/2") | 1 | 25-811528 | |||||
| 9 | 431-9830 | CAMSHAFT | 1 | ||||||
| 10 | 845796T | TIMING CHAIN | 1 | 811580 | |||||
| 11 | 43-811578 | CAMSHAFT SPROCKET | 1 | ||||||
| 12 | 43-845794T | CRANKSHAFT SPROCKET | 1 | 43-811579 | |||||
| 13 | 10-845942 | BOLT | 3 | 10-35339 | |||||
| 14 | 17-843378 | DOWEL PIN (1/4" DIA.) | 1 | 17-35312 | |||||
| 15 | 811583 | LIFTER | 16 | ||||||
| 16 | 22-37682 | ELBOW (45 DEGREES) | 1 | ||||||
| - | 806352R5 | MARINE LONG BLOCK ENGINE | 1 | 806352A1 | This Part is No Longer Available | ||||
| - | 27-811547A94 | GASKET SET-OVERHAUL | 1 | This Part is No Longer Available | |||||
| - | 92-809826 | SEALER-RED RTV (WHERE APPLICABLE) | 1 | 92-916011 | |||||
| - | 34227Q02 | PERFECT SEAL (WHERE APPLICABLE) | 1 | 92-342271 |
