454 Mag Bravo (Gen 5) GM V-8 1995-1996 - Serial 0F305000 Thru 0F801699 - Alternator (Mando)

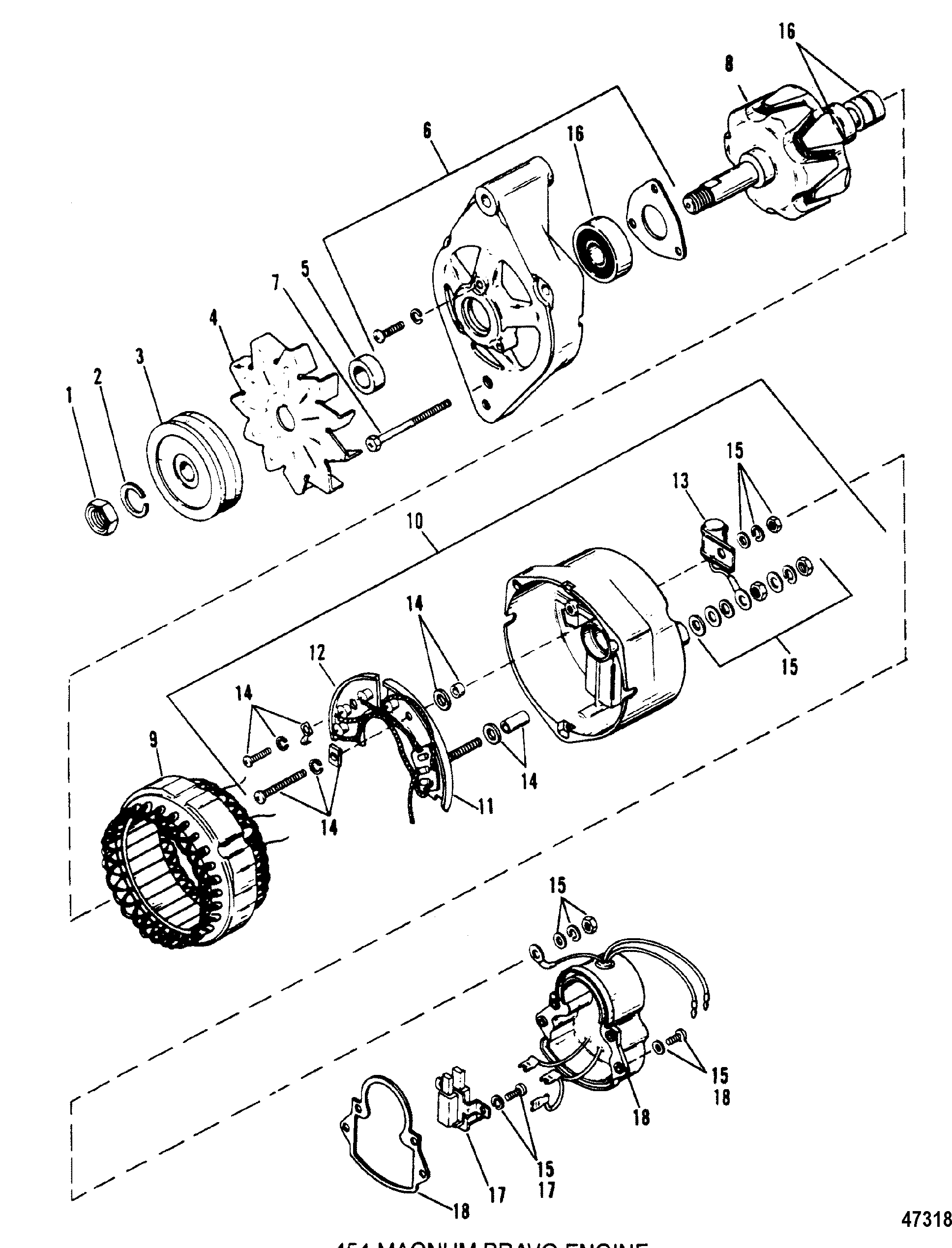

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons, And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust Plate
- Flame Arrestor
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Miscellaneous Parts and Accessories
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Shift Bracket
- Starter And Alternator
- Starter Motor (2 - 7-8" Diameter End Cap)
- Thermostat Housing (Standard Cooling)
- Weber Carburetor
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | SEI # | Description | Num Req. | Superceded From | Special Notes |
| - | 817119A4 | 602-20054 | ALTERNATOR | 1 | |||||
| 1 | 11-809136 | NUT | 1 | 11-42768 | |||||
| 2 | 13-42769 | LOCKWASHER | 1 | ||||||
| 3 | 809134 | PULLEY | 1 | 42770 | |||||
| 4 | 23-811865 | SPACER | 1 | ||||||
| 5 | 811866 | FAN | 1 | This Part is No Longer Available | |||||
| 6 | 23-811867 | SPACER | 1 | This Part is No Longer Available | |||||
| 7 | 811868 | FRONT BRACKET | 1 | ||||||
| 8 | 10-811869 | SCREW | 3 | This Part is No Longer Available | |||||
| 9 | 30-811870 | BALL BEARING | 1 | ||||||
| 10 | 811871 | RETAINER | 1 | This Part is No Longer Available | |||||
| 11 | 811872 | ROTOR | 1 | This Part is No Longer Available | |||||
| 12 | 811873T | STATOR | 1 | 811873 | This Part is No Longer Available | ||||
| 13 | 811874T | REAR BRACKET | 1 | 811874 | |||||
| 14 | 811875T | RECTIFIER | 1 | 811875 | |||||
| 15 | 10-811876 | SCREW | 1 | This Part is No Longer Available | |||||
| 16 | 811877 | MOLD | 1 | This Part is No Longer Available | |||||
| 17 | 11-811878 | NUT | 2 | ||||||
| 18 | 811879 | CONDENSER | 1 | ||||||
| 19 | 811880 | MOLD | 1 | ||||||
| 20 | 11-811881 | NUT | 1 | ||||||
| 21 | 10-42773 | THRU BOLT | 4 | This Part is No Longer Available | |||||
| 22 | 811883T | REGULATOR ASSEMBLY | 1 | 811883 | |||||
| 23 | 811884 | BRUSH | 2 | ||||||
| 24 | 24-811885 | BRUSH SPRING | 2 | This Part is No Longer Available | |||||
| 25 | 10-811886 | SET SCREW | 2 | No longer made, limited availability | |||||
| 26 | 811887 | STRAP | 1 | This Part is No Longer Available | |||||
| 27 | 811888 | COVER | 1 | This Part is No Longer Available | |||||
| 28 | 10-811889 | SET SCREW | 1 | This Part is No Longer Available | |||||
| 29 | 84-811890 | LEAD WIRE | 1 | This Part is No Longer Available | |||||
| 30 | 84-811891 | LEAD WIRE | 1 | This Part is No Longer Available | |||||
| 31 | 11-811878 | NUT | 4 |
