454 Mag Alpha (Gen 4) GM V-8 1986-1988 - Serial 0A631894 Thru 0B785148 - Audio Warning System

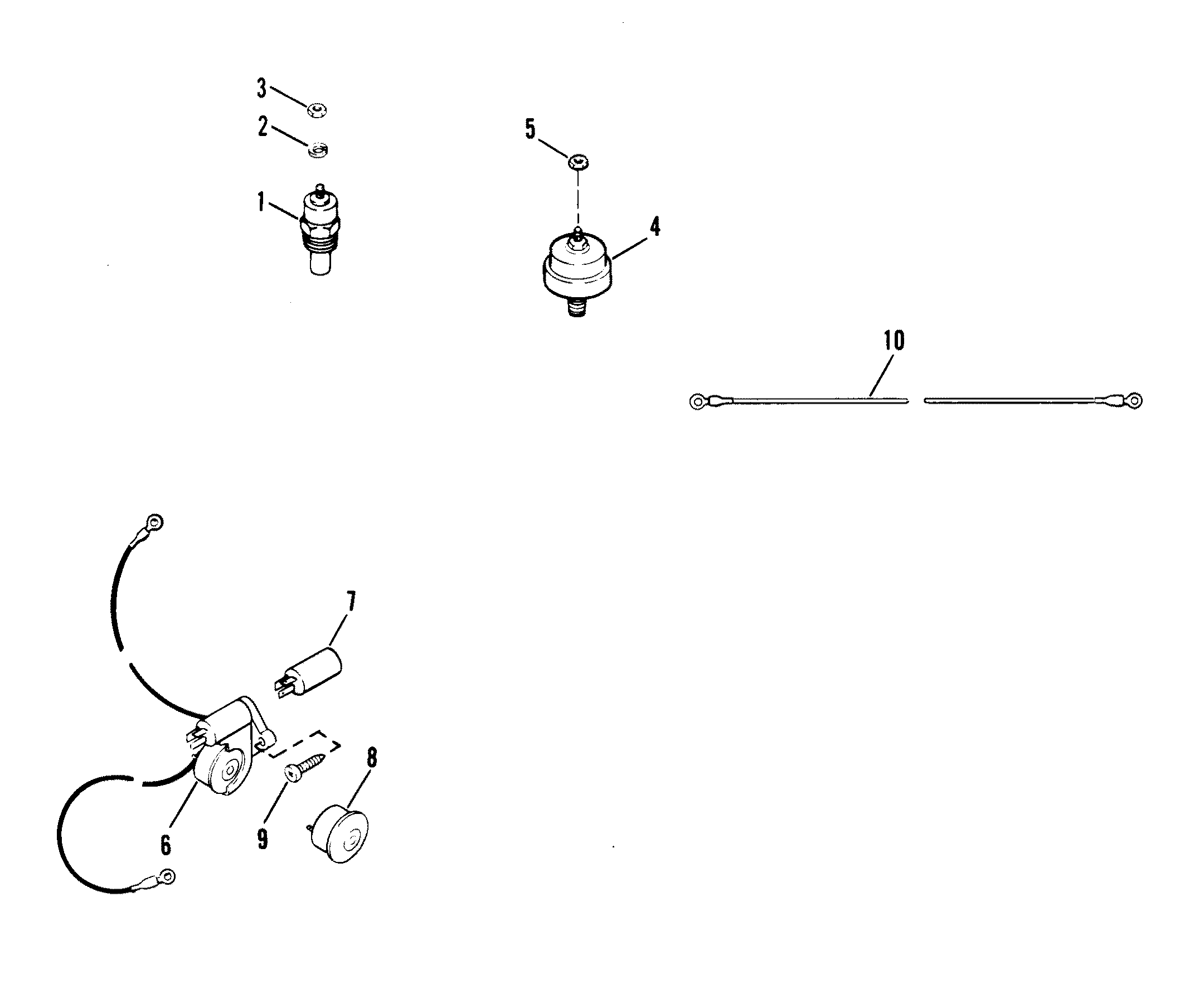

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 48952         SWITCH, WATER TEMPERATURE 1

2 13-26996         LOCKWASHER, TEMPERATURE SWITCH (#10) 1

3 11-45076         NUT, TEMPERATURE SWITCH (10-32) 1

4 87-805605A1         SWITCH PRESSURE 1 38559
5 11-45076         NUT, PRESSURE SWITCH TERMINAL (10-32) 1

6 816492A14         BUZZER HOUSING ASSEMBLY 1 86047A11 Please note - this is the new style buzzer, not horn & timer
7 816492A14         TIMER, TEMPERATURE BUZZER 1 86045 Please note - this is the new style buzzer, not horn & timer
8 68878A6         HORN 1

9 10-69013         SCREW, HORN ATTACHING 2

10 84-86044A4         WIRE ASSEMBLY, TAN/BLUE (36") 1   This Part is No Longer Available
