454 Mag MPI Bravo (Gen 6) GM V-8 1998 - Serial 0L058400 Thru 0M024999 - Sea Water Pump

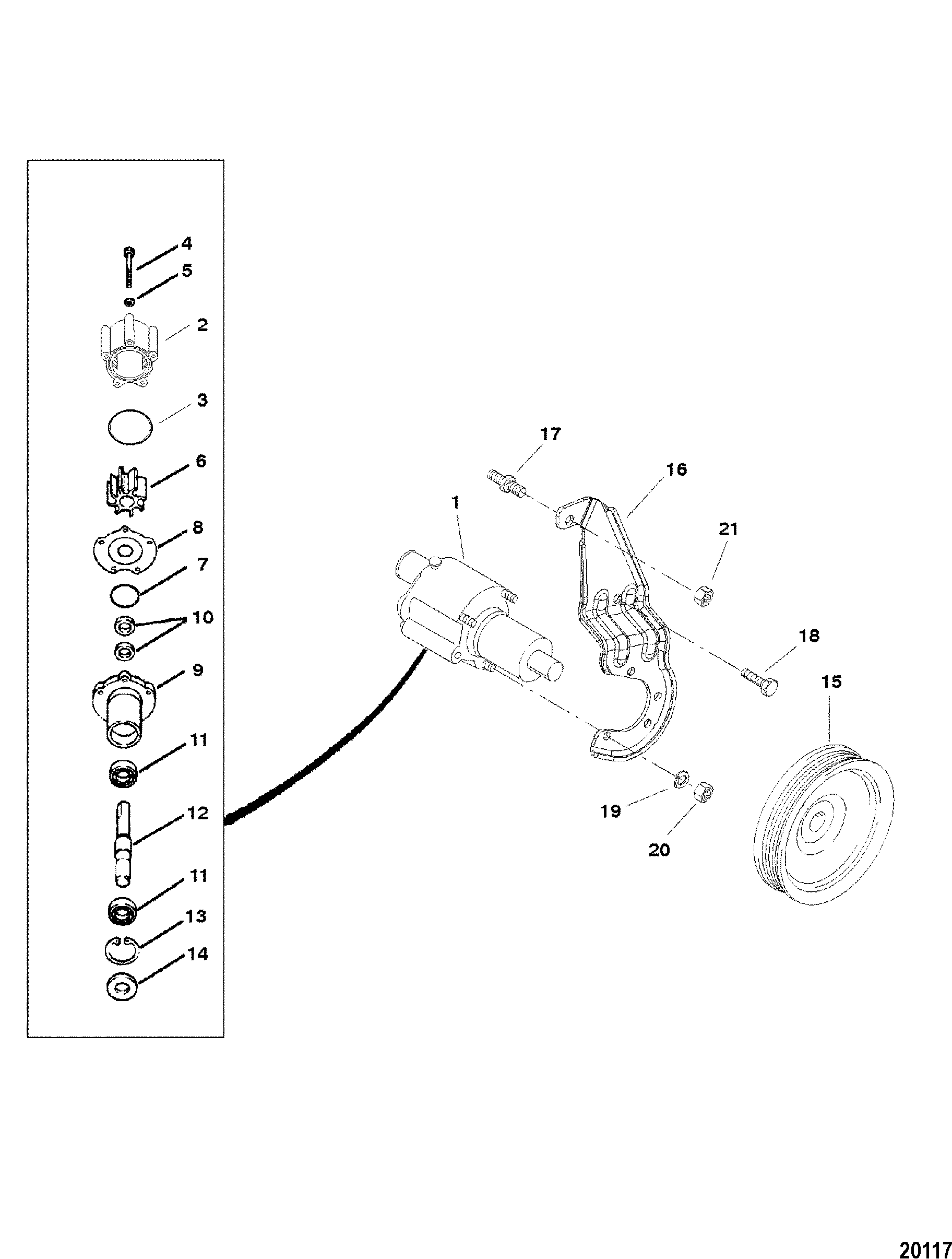

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # SEI # Description Num Req. Superceded From Special Notes
1 46-807151A9



PUMP ASSEMBLY, Sea Water 1
2 46-807151A14



BODY/IMPELLER KIT 1

3 25-33465



O-RING 1
4 10-74191



SCREW, (.312-18 x 3.250) 5

5 12-814806

700-21662
WASHER, (.344 x .688 x .065) Stainless Steel 5
6 47-59362T1 625-4011 676-9-45375 700-89740
IMPELLER 1
7 25-94288



QUAD RING 1
8 94576



WEAR PLATE (INNER) 1
9 46-94913A5



HOUSING ASSEMBLY, Pump 1
10 26-90562
676-9-76107 700-85080 525-26-90562 SEAL, (1.254 x .312) 2
11 30-72961



BEARING, Ball 2
12 59501A1



SHAFT 1
13 53-23720



RING, Retaining 1
14 26-72785



SEAL 1
15 861579



PULLEY 1
16 861087T



BRACKET 1    This part is NLA from Mercruiser.
17 16-806591



STUD, (7/16-14) 1
18 10-17965



SCREW, (.437-14 x .70) 1
19 13-400247



LOCKWASHER, (M8) 3
20 11-21908



NUT, (.312-18) Cad Plated 3
21 11-22024



NUT, (.437-14) 1
