496 Mag HO Model - Serial 0M025000 Thru 0M687143 - Gasket Set Components (27-883231A1), Engine

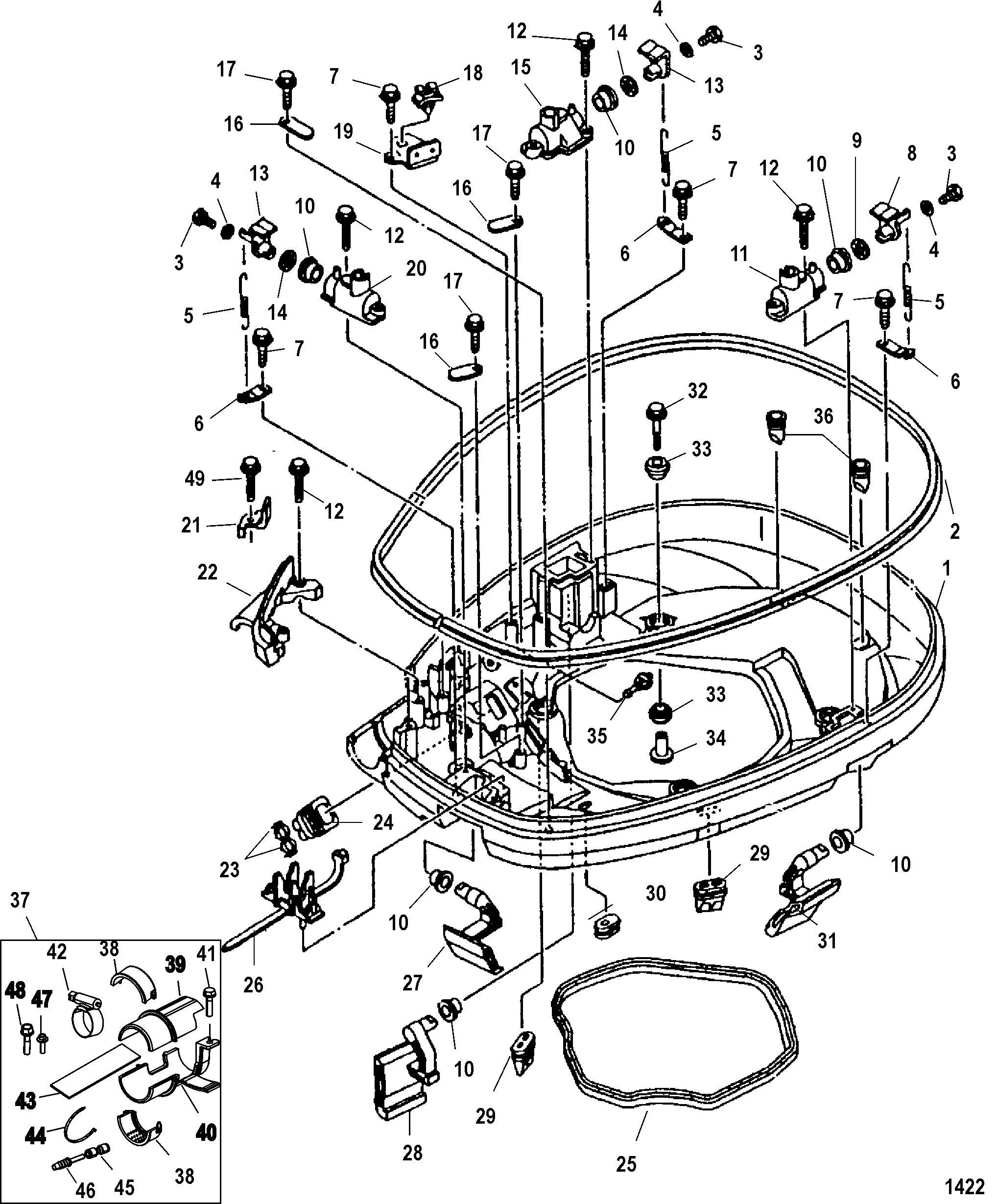

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 27-883231A1



GASKET SET, Engine 1
- 25-32509



O-RING, (.489 x .070) 4

- 25-8071341



SEAL 1
- 26-42077



SEAL 2

- 26-861947



SEAL 1
- 26-865066



SEAL, Heat Exchanger to Crossover 2
- 26-862957



SEAL, Oil Filter Adaptor 1
- 27-49955
676-9-60104 700-30370
GASKET, Drain 2
- 27-863112



GASKET, Idle Air Valve 1
- 27-863215



GASKET, Throttle Body 2
- 27-863285



GASKET, Air Valve 1
- 27-881620001



GASKET, Cylinder Head to Crossover 2
- 27-46820
676-9-61400 700-33760
GASKET, Exhaust Manifold to Cylinder Head 2
