ARP Cylinder Head Stud & Bolt Kits:

Click on the part number to check pricing or place an order.

Cylinder Head Stud & Bolt Kits
High Performance head bolts are available with a reduced wrenching hex or 12-point and wide area flanged head that eliminates the need for valve train removal to facilitate cylinder head re-torquing. All High Performance Series bolts are 170,000 PSI (which is 15% stronger than Grade 8) and kits come complete with hardened parallel-ground washers.







Description HP Series Studs Pro Series Studs HP Series Hex Bolts Pro Series 12-Pt. Bolts

Small Block Chevy

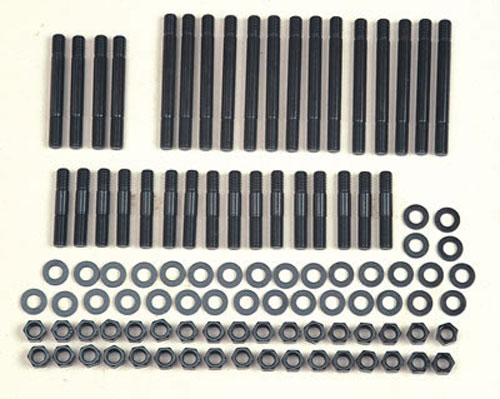

860-134-4001 NA 860-134-3601 860-234-3701

Small Block Chevy
Dart-Buick Heads with undercut studs

NA 860-234-4502 NA 860-234-3702
Big Block Chevy 860-135-4001 NA 860-135-3601 860-235-3701
Big Block Chevy
w/undercut studs
NA 860-235-4401 NA NA
Big Block Chevy Brodix w/undercut NA 860-235-4502 NA 860-235-3702

Big Block Chevy Dart or Merlin Heads
with undercut stems

NA 860-235-4503 NA 860-235-3703

Big Block Chevy Dart or Big Chief 7/17"
undercut (12 pt nuts)

NA

860-235-4712 NA NA
Ford 351W 860-154-4003 NA 860-154-3603 860-254-3708

Ford 429 incl. CJ-SVO Alum.
 and Ford 460 385 Series

860-155-4003 NA NA NA
