ProCharger Supercharger Systems For EFI/MPI Engines
 The ProCharger Advantage
Nothing Else Even Comes Close!
Accessible Technologies was the first to introduce the tremendous benefits of intercooled centrifugal supercharging to the marine market, over 4 years before others, and has become the proven leader in marine supercharging. ProCharger Marine systems offer absolutely unparalleled performance and reliability for the extremely demanding marine environment. As you may know, ProCharger is now available as OEM equipment from many of the leading performance boat manufacturers, and Accessible Technologies now produces more supercharger systems to fit Mercruiser-equipped boats than any other supercharger company.
Click on the part number to check pricing or place an order.
ProCharger

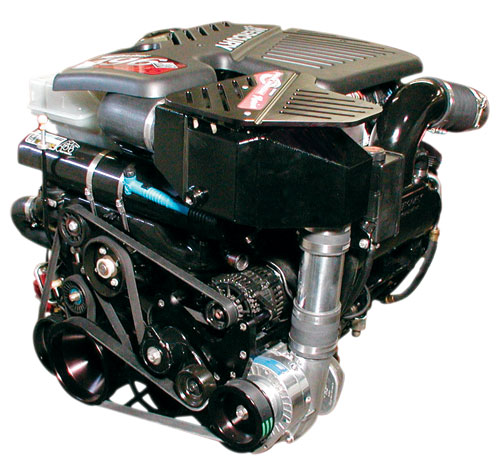

New Intercooled 496 System
|
 |
- Self-contained ProCharger (no oil lines, quiet operation)
- Intercooled for maximum power and engine protection
- 3 year supercharger warranty available
- Installs quickly and easily
|
Part
No. |
Description |
|
524-1MG182-NN |
MerCruiser 496 HO Kit |
|
524-FP001G-15 |
5PSI Injector Air/Fuel Calibrator Upgrade |
|
ProCharger
MerCruiser 350 Mag MPI System
|
 |
Now Also Available For 6.2
- Quick and simple installation
- Intercooler installs neatly on top of motor, no accessory relocation required
- Increases crankshaft power from 330 hp to 490 hp (5 PSI) or 540 hp (7 PSI*)
- 100% Complete; installs quickly with no internal engine modifications
- Includes M-1SCB ProCharger and custom 350 MPI intercooler
- Very compact installation
- Coolest charge air temperatures for maximum performance and engine reliability
ProCharger Exclusives
- Undisputed maximum power gains
- Self-contained M-1SCB is standard equipment
- 3-year warranty available
|
Part
No. |
Description |
|
524-1MF183-NN |
Intercooled 350 MPI, 50-65% Prop HP Gain,
Intake Boost Pressure 5-7 PSI* |
|
524-EC0071-1 |
350 MPI Fuel Delivery Upgrade 6-7 PSI |
|
ProCharger
MerCruiser 7.4 MPI
|
 |
- The low compression of the 7.4 MPI makes it an excellent candidate for modern supercharging technology, producing large percentage power gains with relatively low boost levels.
- Increases crankshaft power form 340 hp to 500 hp (5 PSI) or 560 hp (7 PSI**)
- 100% complete, includes high-performance fuel pump and complete fuel system
- Installs quickly with no internal engine modifications
- 3-year (5 PSI) or 1-year (7 PSI) supercharger warranty
- Features M-1 ProCharger and AW-324 Intercooler
- Coolest charge air temperatures for maximum performance and engine reliability
- 560 hp package (7 PSI) requires installation of larger fuel injectors and fuel pump upgrade
Exclusive 3-year Procharger Warranty
Thanks to the unmatched quality and durability of ProCharger superchargers, ATI is able to offer the best warranty coverage in the industry:
| Application |
Model |
Boost Level |
Warranty |
|
7.4 MPI |
M-1 |
5 PSI |
3 years |
|
7.4 MPI |
M-1 |
7 PSI |
1 years |
For models with a 3-year warranty, the upgrade to SC models requires a $49 payment for 3-year warranty coverage, and includes 6 bottles of ProCharger oil.
** 7 PSI requires purchase of fuel upgrade package **
|
Part
No. |
Description |
|
524-1MD181-NN |
7.4 MPI Intercooled, 50-65% Prop HP Gain,
Intake Boost Pressure 5-7 PSI** |
|
524-FP001G-11 |
7.4 MPI Fuel Injectors and Fuel Pump Upgrade for 6-7 PSI |
|
ProCharger
525/454 EFI / MPI Systems
|
 |
Intercooled M-1 ProCharger System for 502/454 Magnum MPI
- Produces 620 hp at 5 PSI, second only to ATI's own Intercooled M-3 ProCharger system.
- Most compact supercharger system, fits virtually any application
- Exclusive 3 year supercharger warranty (5 PSI)
- Features M-1 ProCharger and AW-324 intercooler
- 100% complete, bolt-on system includes high-performance fuel pump and complete fuel calibration system
- Exclusive self-contained M-1SC ProCharger available as an upgrade
- Extremely cool charge air temperatures, at least 50° cooler than intercooled positive displacement superchargers, and up to 225° cooler than non-intercooled blowers
- Cool charge air temperatures produce more power with less boost
- No need for engine modifications with M-1 or M-3 systems
- Increases cruise fuel economy with prop change
- OEM quality, fit and finish
Intercooled M-3 ProCharger System 645-700hp from Stock 502 EFI/MPI
- The uncontested leader - 645 hp with stock 502 EFI/MPI (700 hp with optional 7 PSI pulley)
- Extremely powerful, durable and efficient M-3 ProCharger
- 3 year warranty (5 PSI) or 1 year (7 PSI) supercharger warranty
- Massive integrated air-to-water intercooler (model AW-504)
- 100% complete, bolt-on system includes high-performance fuel pump and complete calibrated fuel system
Identifying Your Model Year
*Please replace "NN" in part number with the model year of your motor (not your boat, they may be different). 1998-2001 model years can be identified by a serpentine accessory belt, while 1994-97 Magnum MPI/EFI's will have "v-belt" type accessory belts. Additionally, 1997-2001 motors have the "Cool Fuel" system with no mechanical fuel pump, while 1994-96 motors have a mechanical fuel pump in addition to the electric pump.
|
Part
No. |
Description |
|
524-1MB181-NN |
M-1 Intercooled, 40-50% Prop HP Gain, Intake Boost Pressure 5 PSI,
Intercooler Model AW-324, 3 Year Warranty |
|
524-1MB223-NN |
M-3 Intercooled, 55-75% Prop HP Gain, Intake Boost Pressure 5-7 PSI,
Intercooler Model AW-504, 1-3 Year Warranty |
|
ProCharger
MerCruiser HP 500 EFI Systems
|
 |
Intercooled M-3 ProCharger System
- Undisputed largest power gain and coolest charge air temperatures
- 765 hp with stock 500 EFI (5 PSI), 3 year warranty
- Features M-3 ProCharger and AW-504 intercooler
- 100% complete, bolt-on system, includes high-performance fuel pump and complete fuel system
- 830 hp available with injector change
- 8 PSI, 1 year warranty
- Fuel injectors sold separately
|
Part
No. |
Description |
|
524-1ME222-NN |
M-1 Intercooled, 45-50% Prop HP Gain, Intake Boost Pressure 5 PSI, Intercooler Model AW-324, 3 Year Warranty |
|
524-1ME223-NN |
M-3 Intercooled, 55-65% Prop HP Gain, Intake Boost Pressure 5-8 PSI, Intercooler Model AW-504, 1-3 Year Warranty |
|
|
