Trim-A-Just Electric Trim Control
Click on the part number to check pricing or place an order.

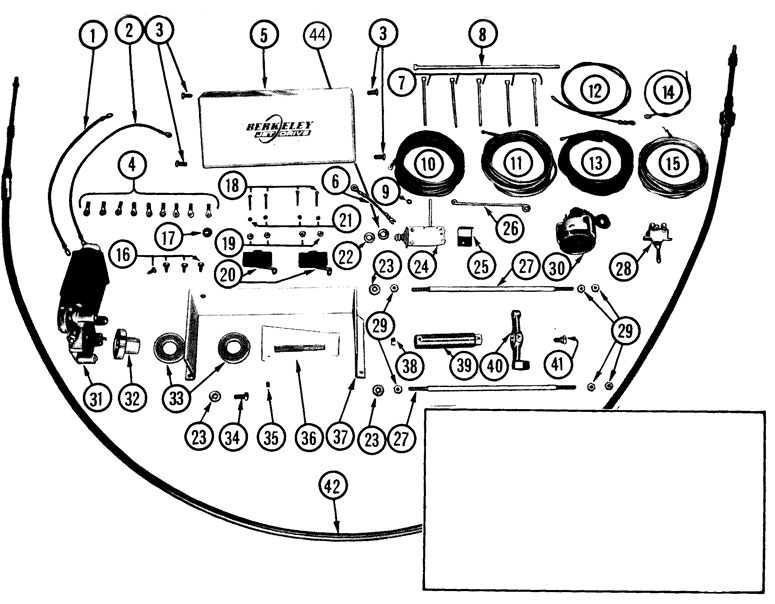

| Sym. | Per Unit | Description | Part No. | Sym. | Qty. Required | Description | Part No. |
| 1 | 1 |
Limit Switch to Motor Wire, Tan | 150-S19186 | 23 | 3 | 1/4" Flat Washer | 150-S23061 |
| 2 | 1 | Limit Switch to Motor Wire, Green | 150-S19185 | 24 | 1 | Sending Unit - No Longer Available | 150-S19183 |
| 3 | 4 | No. 10-32 x 3/8' L . Self-Tapping Screw | 150-S26513 | 25 | 1 | Sending Unit Brace - No Longer Available | 150-SI9266 |
| 4 | 9 | Ring Wire Connector 16 to 14 | 150-S19192 | 26 | 1 | Sending Unit Link | 150-S-19180 |
| 5 | 1 | Housing Cover - No Longer Available | 150-L5291 | 27 | 1 | 1/4" x 11-3/8" Lg. Stud | 150-S19179 |
| 6 | 1 | Sending Unit to Housing Wire, Black | 150-S19348 | 28 | 1 | Control Switch (toggle) | 150-S19182 |
| 7 | 4 | Self-Locking Nylon Tie, Small | 150-S-16171 | 29 | 4 | 1/4-20 Hex Nut | 150-S23481 |
| 8* | 1 | Self-Locking NyIon Tie, Large | 150-S19194 | 30 | 1 | Indicator Gauge | 150-S19184 |
| 9 | 1 | Push-On Retaining Ring | 150-S19202 | 31 | 1 | Drive Motor - No Longer Available | 150-S19174 |
| 10 | 1 | Engine to Control Switch Wire, Red | 150-S19187 | 32 | 1 | Motor Coupling | 150-S19336 |
| 11 | 1 | Control Switch to Limit Switch Wire, Tan | 150-S19189 | 33 | 2 | Thrust Washer | 150-S-19181 |
| 12 | 1 | Housing to Engine Ground Wire, Black | 150-S19188 | 34 | 1 | 1/4"-20 x 1/2" Lg. Hex Cap Screw | 150-S23508 |
| 13 | 1 | Control Switch to Limit Switch Wire, Green | 150-S19190 | 35 | 1 | 1/4-20 x 3/8" Lg. Set Screw | 150-S27426 |
| 14 | 1 | Ignition Switch to Indicator Gage Wire, Violet | 150-S19264 | 36 | 1 | Cable Actuator Collar | 150-S-19335 |
| 15 | 1 | Sending Unit at Indicator Gage Wire, Yellow | 150-S19191 | 37 | 1 | Housing | 150-H03328 |
| 16 | 4 | No. 14 x 1/2" L . Self-Tapping Screw | 150-S26765 | 38 | 1 | 1/4"-28 Hex Nut | 150-S23482 |
| 17 | 1 | Rubber Grommet | 150-S19193 | 39 | 1 | Cable Actuator | 150-S19175 |
| 18 | 4 | No. S32 x 1" Lg. Machine Screw | 150-S24425 | 40 | 1 | Cable Actuator Retainer | 150-S19171 |
| 19 | 4 | No. S32 Hex Nut | 150-S23477 | 41 | 1 | 1/4-20 Shoulder Screw | 150-S-19195 |
| 20 | 2 | Limit Switch | 150-S16759 | 42 | 1 | Control Cable | 150-S19173 |
| 21 | 4 | No. 6 Flat Washer | 150-S23045 | 43 | 1 | 1/4" x 11-3/8" Lg. Stud | 150-S19160 |
| 22 | 1 | Washer, Sending Unit Spacer | 150-S17981 | 44 | 1 | Washer Insulator | 150-S-19461 |
