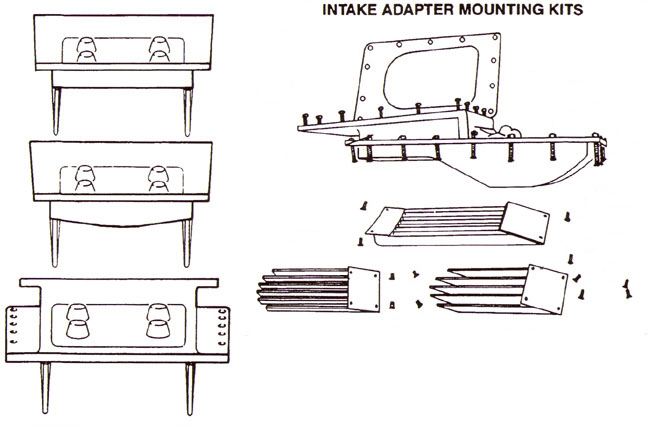

12J Package Intake Adapter Mounting Kits:
Replaces steering assembly on 12JA, 12JB, and 12JG models only. Lowers thrust line for improved performance on some hulls. Includes rudder, reverse bucket and steering extension for Morse, Rideguide or Teleflex. Specify steering extension when ordering.
Fastener Kit For Intake
150-B-05811
Click on the part number to check pricing or place an order.
| Sym. | Description | Part No. | BM-5812 | BM-6309 | BM-6667 |
| 1 | Intake Adapter 12° with Fins | 150-H2155 | 1 | ||
| Intake Adapter, Flat Bottom with Fins | 150-H2481 | 1 | |||
| Intake Adapter, Flat Outside Mt., with Fins - No Longer Available | 150-H2768 | 1 | |||
| 3 | Gasket, Suction to Intake Adapter | 150-L02850 | 1 | 1 | 1 |
| Grate To Intake Adapter Fasteners | |||||
| 4-A | 1/4"-20 Lg. F.H. Phillips Taptile Screws | 150-S26402 | 4 | 4 | 4 |
| Jet Drive To Intake Adapter Fasteners | |||||
| 5 | 5/16"-18 x 1" Lg. Hex HD Machine Screws | 150-S23540 | 14 | 14 | 14 |
| 6 | 5/16" Lock Washer | 150-S23088 | 14 | 14 | 14 |
| Hull To Intake Adapter Fasteners | |||||
| 7-A | 1/4"-20NC x 2" Lg. F.H. Machine Screw | 150-S25672 | 14 | 16 | |
| 7-B | 5/16"-20NC x 2" Lg. F.H. Machine Screw | 150-S25682 | 20 | ||
| 8-A | 1/4"-20NC x 2-1/2" Lg. F.H. Machine Screw | 150-S25674 | 2 | 2 | |
| 9-A | 1/4"-20NC Hex Nuts | 150-S23481 | 16 | 18 | |
| 9-B | 5/16"-18 Hex Nuts | 150-S15981 | 20 | ||
| 10-A | 1/4" Flat Washers | 150-S23061 | 16 | 18 | |
| 10-B | 5/16" Flat Washers | 150-S23062 | 20 | ||
