Steering Wheel Adapters:
We offer a very wide selection of steering wheels and Adapters to fit most popular applications. What you need to know before you purchase your new steering wheel is just what type of steering post or helm that your boat utilizes. The most common styles are a round 3/4" tapered shaft with a keyway or a square style shaft without a keyway. Most of the steering wheels we sell are sold without a mounting provision. That's where billet steering wheel Adapters come in. If your boat currently has a steering wheel that is mounted to a 3-bolt Adapter you would need to purchase the appropriate steering wheel Adapter, which will bolt to the steering wheel then to your flange Adapter. You will need to purchase the appropriate shaft Adapter. These shaft Adapters will attach to your steering post and then provide the 3-bolt flange required to mount your steering wheel and steering wheel Adapter.
 |

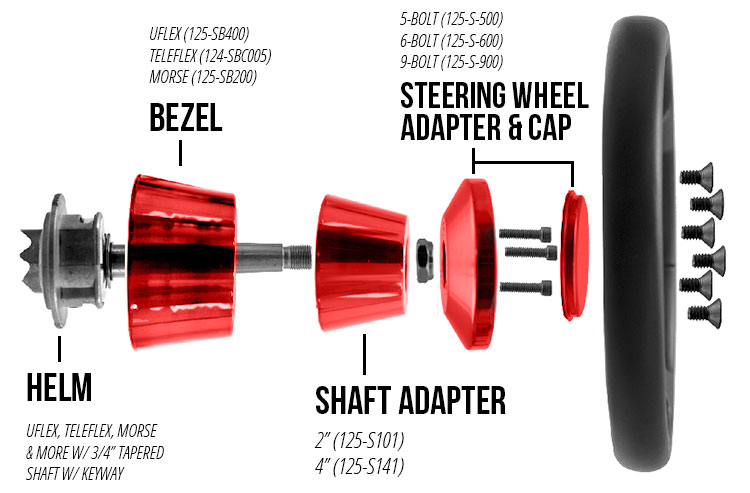

Here is a side view of how a billet steering assembly looks when being assembled. We offer 2", 4" and 6" shaft adapters to accommodate different distances to have the steering wheel from the dash. Steering wheel adapters are available in 5, 5, and 9-bolt patterns. |
Click on the part number to check pricing or place an order.
| Hardin
Marine BIllet Aluminum 9-Bolt Formuling Pattern Steering Wheel Adapter |
|||||||||
|
These popular 9-bolt Formuling pattern adapters are machined from solid
billet aluminum. Each adapter features a 3-bolt mounting base and 9-bolt
steering wheel mount as well as a solid center cap. Stainless hardware is
included. These adapters fit our popular billet steering wheels as as the
Formuling brand.
|
||||||||
| Hardin
Marine BIllet Aluminum 5 And 6-Bolt Steering Wheel Adapters |
|||||||||
|
These popular billet steering wheel adaptors are designed to fit the 5-bolt
Grant steering wheels or 6-bolt Gaffrig or Dino steering wheels. The adaptor features a 3-bolt mounting flange and
5-bolt steering wheel mount. Each adaptor is supplied with stainless steel
hardware.
|
||||||||
| Hardin
Marine BIllet Extended Steering Shaft Adapters |
|||||||||
|
These Adapters are designed to extend your steering wheel out closer to
you and further from the dash. These extended shaft Adapters come in the
popular 3/4" round tapered shaft style with a 3-bolt steering wheel mounting
flange. These adapters are available in both a 4" and 6" version.
|
||||||||
| Hardin
Marine Cast Aluminum Steering Shaft Adapters |
|||||||||
|
These cast aluminum steering shaft Adapters feature a 3-3/4" OD with your choice of a 3/4" round or square shaft provision while providing a popular 3-bolt steering wheel mount. These offer an economical choice for steering wheel mounting and have a low profile.
|
||||||||
| Hardin
Marine Billet 3/4" Low Profile Steering Shaft Adapter |
|||||||||
|
These 2-1/2" OD small diameter low profile steering
shaft Adapters work great on any boat. They accept tall 3/4"
round tapered shafts and provide a 3-bolt steering wheel
mounting flange.
|
||||||||
| Hardin
Marine Aluminum Steering Bezel |
|||||||||
|
If you've ever wondered what to do about that cheap plastic steering bezel that cracks and fades on your Morse steering post or you just want the perfect color matched accessories to go with your new steering wheel and Adapters this is it. These aluminum steering bezels are a direct replacement and are available polished or in your choice of colors.
|
||||||||
