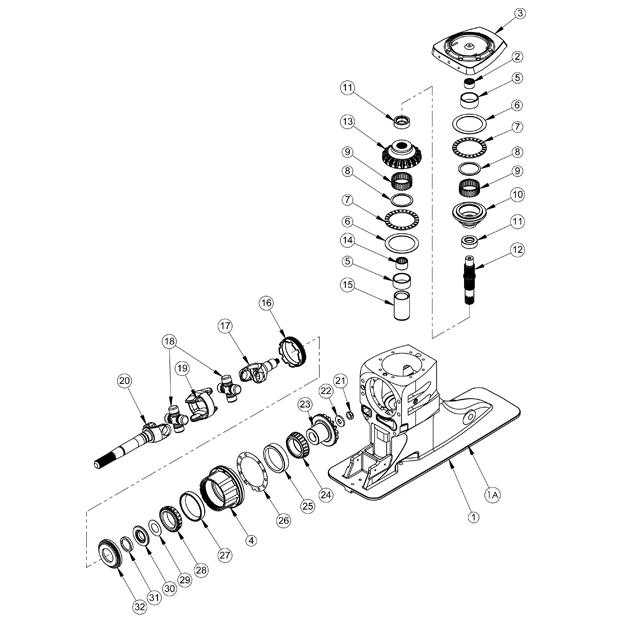

SCXT Upper Gear

Click for Larger Image

ITEM DESCRIPTION QTY PART NUMBER

SCX, SCX4, SCXT Upper Bearing Kit (Contains the items: 2, 5, 6, 7, 9,14 , 24, 25, 27, 28) Kit 421-10-8076

SCX, SCX4, SCXT Upper Bearing Kit (Contains the items: 24, 25, 27, 28) Kit 421-10-8078
1 Upper Case Black 1 421-01-1550
1A Upper Case Silver 1 421-01-1557
2 Roller Bearing (Clutch Shaft Cap) 1 421-10-3042
3 Upper Cap 1 421-01-2555
4 Pinion Hub 1 421-01-2560
5 Tower Race 2 421-10-6041
6 Thrust Race (Specify Thickness) 2 421-10-5045
7 Thrust Bearing (Gear) 2 421-10-4044
8 Spirol Retainer Ring 2 421-01-2055
9 Roller Bearing (Internal Gear) 2 421-10-3046
10 Gear Replacement 1 421-01-4576
11 Vertical Shaft Spacer 2 421-01-9001
12 Vertical Shaft 1 421-01-3562
13 SCXT Forged Gear 1 421-01-4575
14 Roller Bearing (Vertical Shaft Tower) 1 421-10-3043
15 Tower 1 421-01-2561
16 Retainer Nut 1 421-01-2239
17 Yoke Gear End XR 1 421-01-2085
18 Cross & Bearing (Cup dia. 1.218) 2 421-01-2086
19 Center Socket XR 1 421-01-2087
20 Yoke Coupler End XR 1 421-01-2088
21 Nut (5/8-18 Thin Nylock) (Yoke Gear End) 1 421-08-091105002
22 Washer (Yoke Gear End) 1 421-08-121100002
23 Pinion Gear 1 421-01-4538
24 Bearing Cone (Pinion Bearing) 1 421-10-1021
25 Bearing Cup (Pinion Bearing) 1 421-10-2022
26 Pinion Hub Shims Kit 421-01-2548
27 Bearing Cup (Pinion Bearing) 1 421-10-2024
28 Bearing Cone (Pinion Bearing) 1 421-10-1023
29 Yoke Gear End Shims Kit 421-01-2020
30 Pinion Shoulder Washer 1 421-01-2241
31 Yoke Gear End Seal 1 421-11-3029
32 Pinion Seal Carrier 1 421-01-2240
