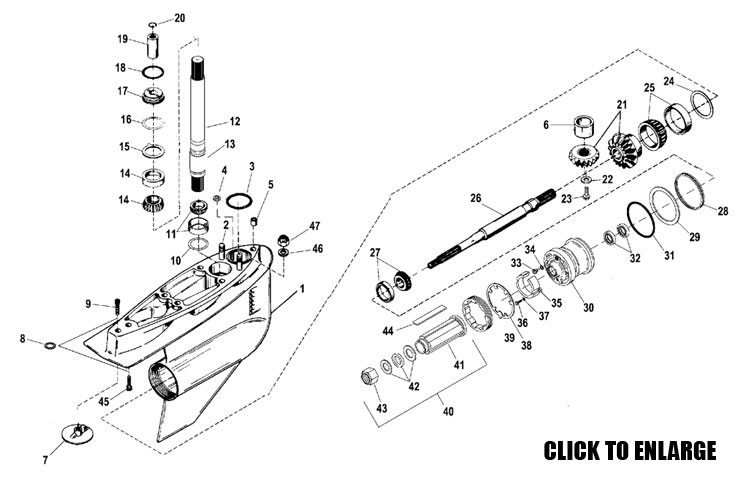

Mercruiser-Bravo One XR Gear Housing

Mercruiser- Bravo One XR Gear Housing

SYM.
DESCRIPTION
QTY.
PART NO. Original P/N
*
Gear Housing Assembly Complete (Bravo One Std)
1
525-1656-8866A60
*
Gear Housing Assembly Complete (Bravo One w/ Low Water Pickup)
1

*
Gear Housing Assembly Complete (Bravo One w/ Dual Water Pickup)
1

1
Gear Housing Assembly (Bravo One Std)
1
525-1656-8866A17
1
Gear Housing Assembly (Bravo One w/ Low Water Pickup)
1

1
Gear Housing Assembly (Bravo One w/ Dual Water Pickup)
1

2
Stud (.437-14/.437-20 x 2.060)
2

3
O-Ring @5
1

4
Seal @3
1

5
Seal (.625 O.D.)
1

6
Roller Bearing Assembly
1

7
Anodic Plate Assembly
1

8
Lockwasher (.437)
1

9
Screw(.437-14 x 1.750)
1

10
Shim Set
AR

11
Tapered Roller Bearing Assembly
1
525-31-66668A1
12
Driveshaft Assembly (16.085 Long)
1

13
Bearing
1

14
Tapered Roller Bearing Assembly
1

15
Tab Washer
1

16
Shim Set
AR

17
Spacer
1
525-23-92916
18
O-Ring (2.230 x .139)
1

19
Coupling Assembly
1

20
Ring-Retaining
1

21
Gear Set (15/19)
1

21
Gear Set-15/17
1

21
Gear Set-17/18
1

22
Washer
1

23
Screw (.375-16 x 1.00)
1

24
Shim Set
AR

25
Tapered Roller Bearing Assembly
1

26
Propeller Shaft
1

27
Tapered Roller Bearing Assembly
1

28
Load Ring
1


29
Thrust Washer (.105” Thick)
1

30
Bearing, Carrier Assembly
1

31
O-Ring @4
1

32
Oil Seal
2

33
Screw Kit @2
1
525-22-67892A1
34
Seal-Blue @15
1
525-12-191832
35
Anode Assembly @2
1
525-806188A1
36
Screw (#10-32 x .625)
2

37
Lockwasher (#10 External)
2

38
Tab Washer, Keyed
1

39
Retainer, Bearing Carrier
1
525-79448
40
Propeller Hub Assembly
1
525-840389A5
41
Propeller Hub
1
NSS

42
Washer/Nut Kit
1
525-12-840383A1
43
Nut Kit, Propeller
1

44
Snubber Strip Kit
1

45
Screw (.437-14 x 1.500)
1

46
Washer (.453 x .750 x .032)
2

47
Nut (.437-20)
2

NS
Seal Kit, Gear Housing
AR
525-26-815565A1
NS
Anode Kit, Aluminum
AR
525-888758A1
NS
Anode Kit, Magnesium
AR
525-888757A1
