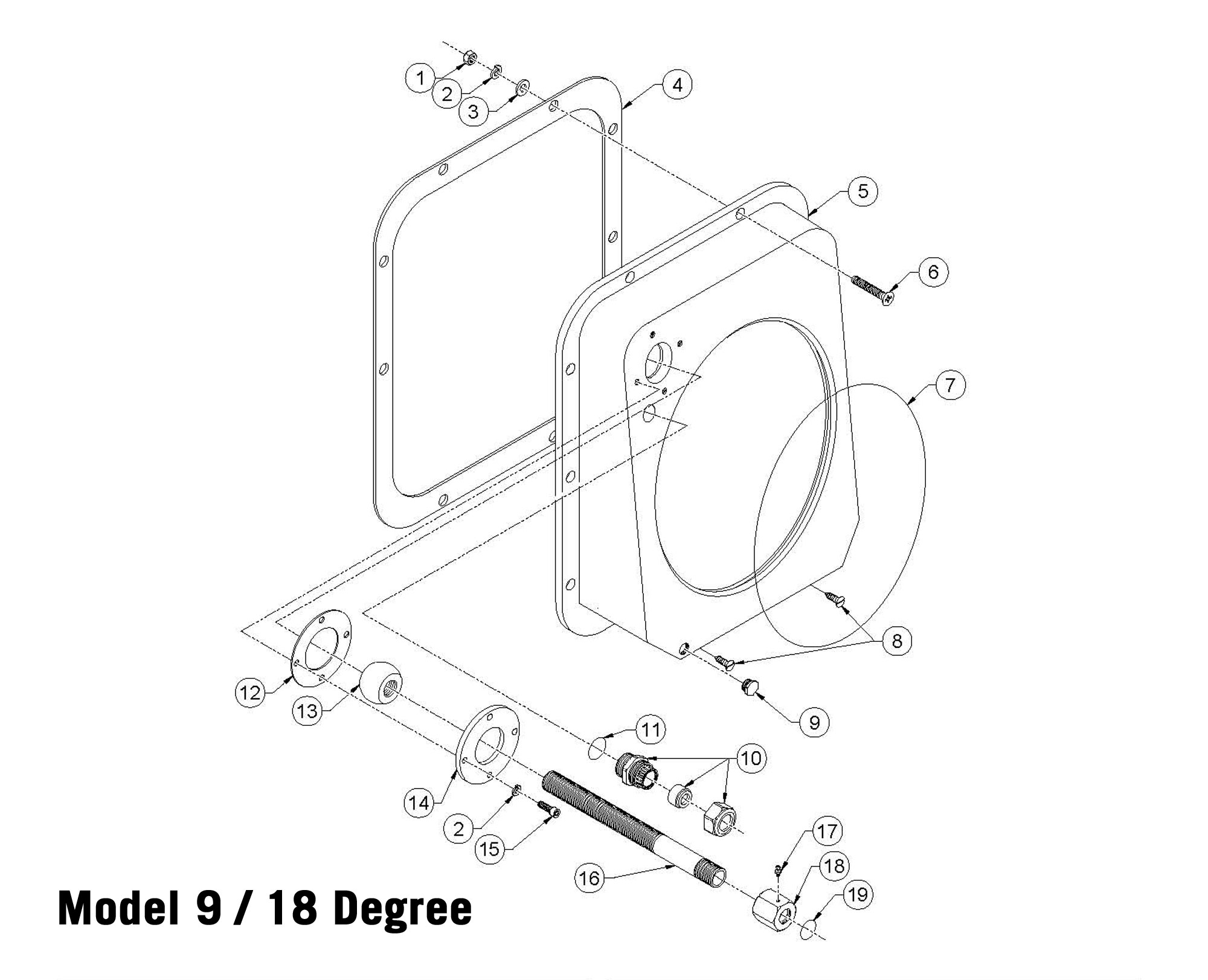

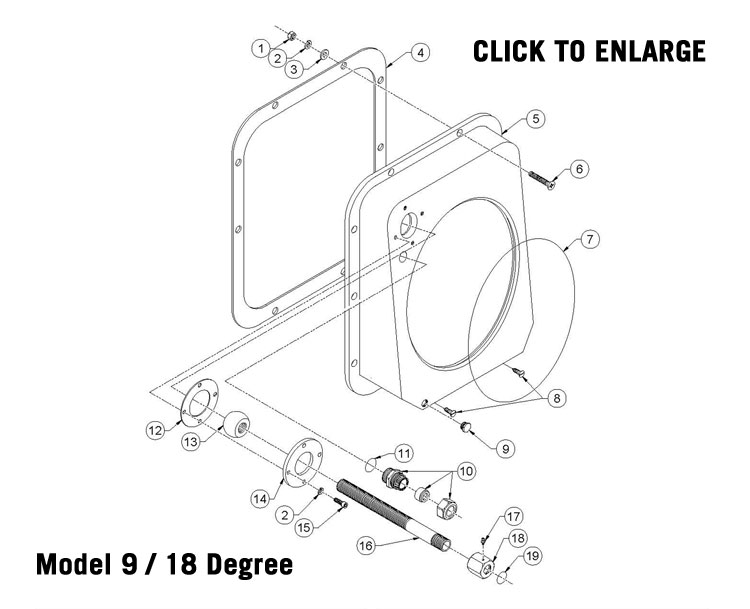

American Turbine Model 9 / 18 Degree Transom Housing

9 / 18 Degree Transom Housing

PART # TK1105

SYM.
DESCRIPTION
QTY.
PART NO.
1
HEXNUT, 1/4-20
8
152-F04 20 HN
2
LOCKWASHER, 1/4
12
152-F04 LW
3
FLAT WASHER, 1/4
8
152-F04 FW
4
TRANSOM GASKET
1
152-G3001
5
TRANSOM HOUSING
1
152-T1105
6
FHMS, 1/4-20 X 2
8
152-F04 20 16 FH
7
O-RING
1
152-O1201
8
WOOD SCREW, #14 X 1
2
152-F04 08 WS
9
BRASS DRAIN PLUG
1
152-T3501
10
REVERSE CABLE PACKER
1
152-T2101
11
O-RING REV CABLE PACKER
1
152-O3001
12
STEERING MOUNT GASKET
1
152-G4001
13
STEERING TUBE BALL
1
152-T2601
14
BALL FLANGE
1
152-T2701
15
SHCS, 1/4-20 X 7/8
4
152-F04 20 07 SH
16
STEERING TUBE
1
152-T3007
17
GREASE ZERK
1
152-M4801
18
STEERING TUBE SEAL
1
152-T3107
19
O-RING, STEERING TUBE SEAL
1
152-O3501
