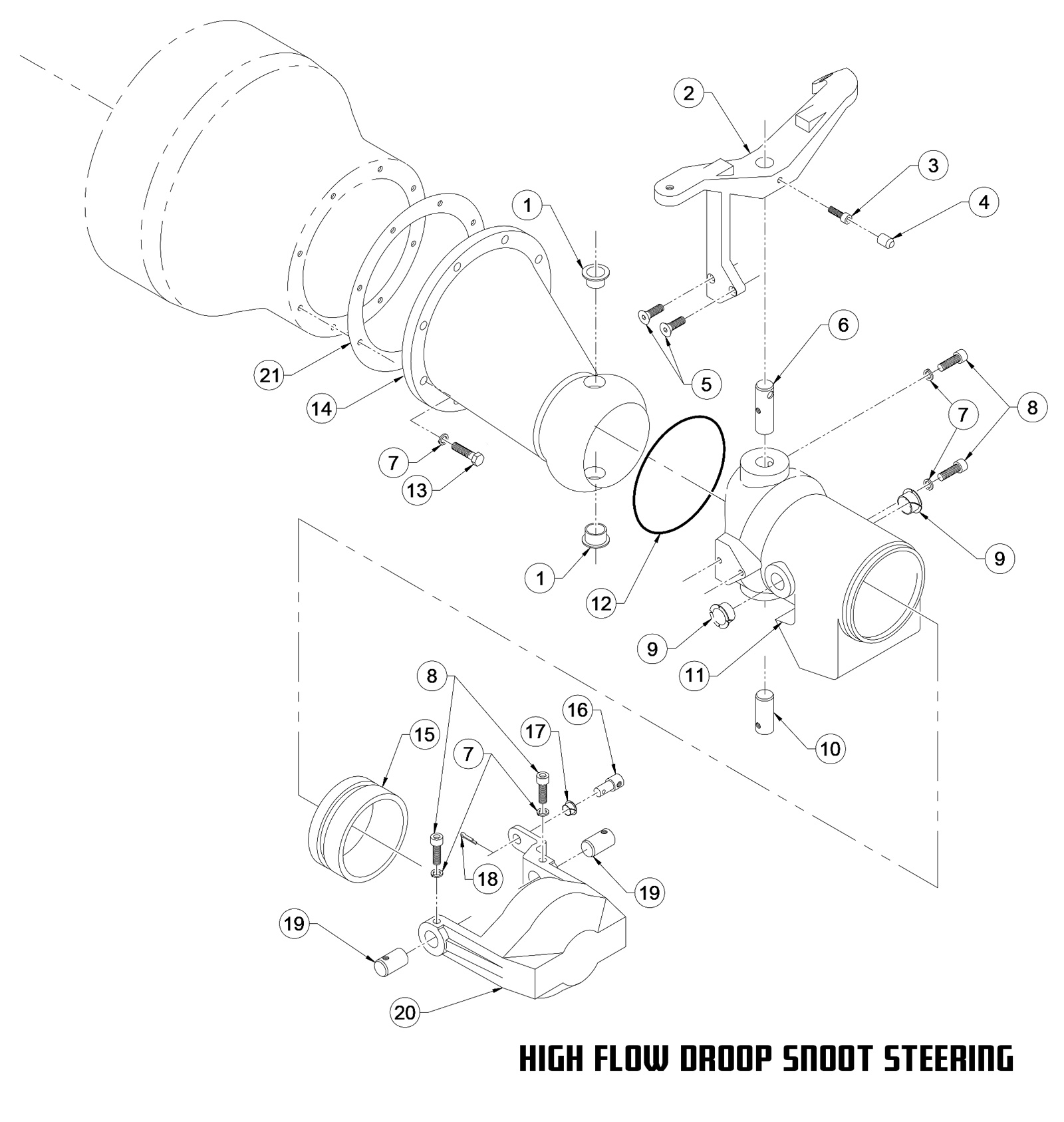

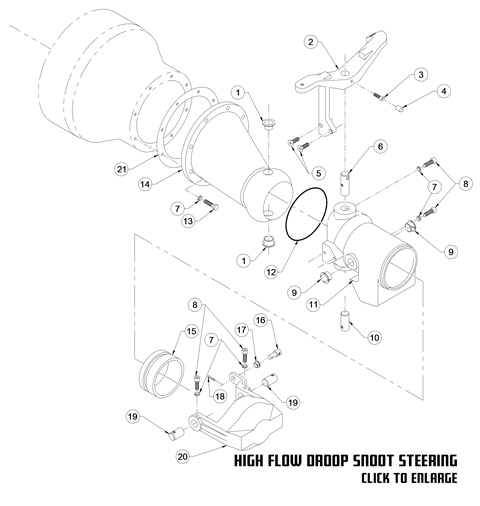

American Turbine Model High Flow Droop Snoot

High Flow Droop Snoot

PART #RA1201

SYM.
DESCRIPTION
QTY.
PART NO.
1
BRASS BUSHING
2
152-B2201
2
TILLER ARM
1
152-R3301
3
SHCS, 5/16-18 X 3/4
1
152-F05 18 06 SH
4
VINYL CAP
1
152-M5001
5
FHMS, 5/16-18 X 1
2
152-F05 18 08 FH
6
UPPER STEERING PIN
1
152-R3601
7
LOCKWASHER, 5/16
12
152-F05 LW
8
SHCS, 5/16-18 X 1
4
152-F05 18 08 FH
9
1/2 NYLINER
2
152-R2101
10
LOWER STEERING PIN
1
152-R3701
11
NOZZLE
1
152-R1201
12
NOZZLE O-RING
1
152-O1401
13
HHCS, 5/16-18 X 1-1/4
8
152-F05 18 10 HH
14
DROOP SNOOT HOUSING
1
152-R6301
15
NOZZLE INSERT
1
152-R710**
16
REVERSE PIVOT PIN
1
152-R5005
17
3/8 NYLINER
1
152-B2I05
18
COTTER PIN, 1/8 X 3/4
1
152-F02 06 CP
19
REVERSE BUCKET PIN
2
152-R3701
20
REVERSE BUCKET
1
152-R2101
21
NOZZLE HOUSING GASKET
1
152-G2507
