American Turbine Model FW-309 Turbine Trim Steering

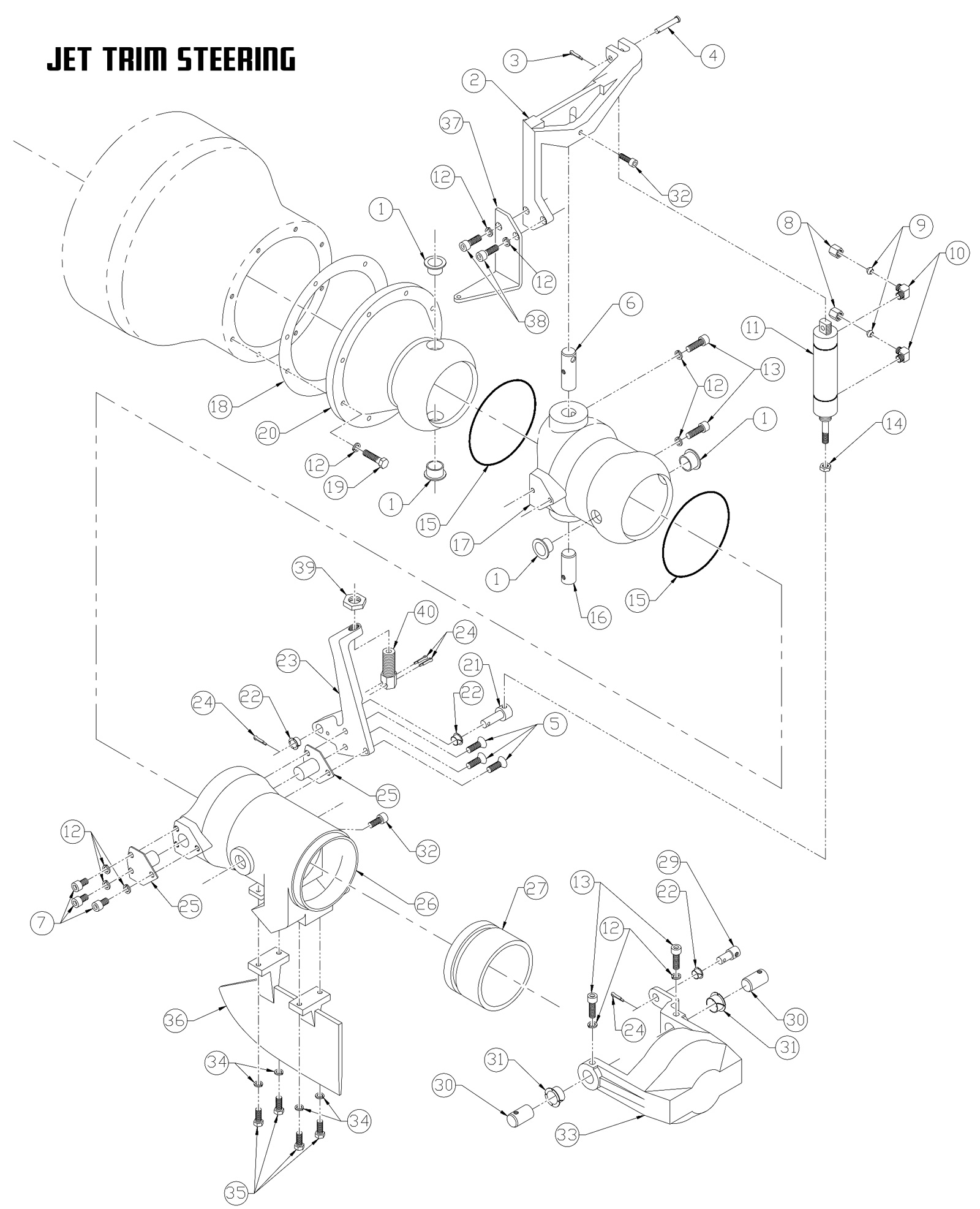

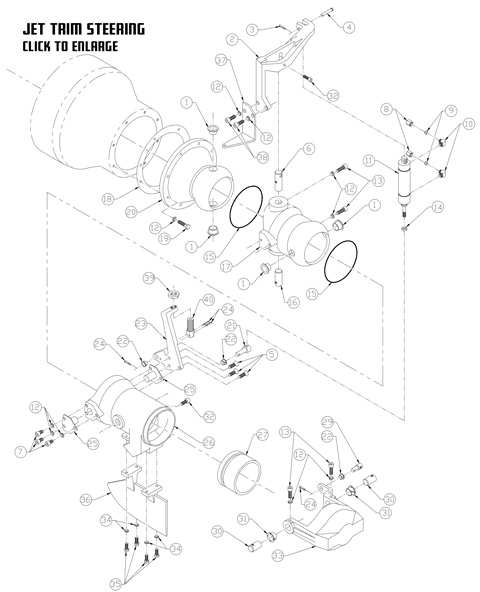

FW-309 Turbine Trim Steering

PART #RA8507

SYM.
DESCRIPTION
QTY.
PART NO.
1
BRASS BUSHING
4
152-B2201
2
TILLER ARM
1
152-R3201
3
COTTER PIN, 1/8 X 3/4
1
152-F02 06 CP
4
CLEVIS PIN, 1/4
1
152-F04 CL
5
FHMS, 5/16-18 X 1
3
152-F05 18 08 FH
6
UPPER TILLER PIN
1
152-R3601
7
SHCS, 5/16-18 X 1/2
3
152-F05 18 04 SH
8
BRASS FITTING
2
152-R8307
9
BRASS FITTING
2
152-R8307
10
BRASS FITTING
2
152-R8307
11
HYDRAULIC CYLINDER
1
152-R7201
12
LOCK WASHER, 5/16
17
152-F05 LW
13
SHCS, 5/16-18 X 1
4
152-F05 18 08 SH
14
5/16-24 JAMB NUT
1
152-F05 24 JN
15
NOZZLE O-RING
2
152-O1401
16
LOWER PIN
1
152-R3701
17
STEERING NOZZLE
1
152-R1401
18
NOZZLE HOUSING GASKET
1
152-G2507
19
HHCS, 5/16-18 X 1-1/4
8
152-F05 18 10 HH
20
SHORT SNOOT
1
152-R6101
21
PIN HYDRAULIC PIVOT
1
152-R5201
22
3/8 NYLINER
3
152-B2105
23
UP /DOWN LEVER
1
152-R3801
24
COTTER PIN, 1/8 X 3/4
2
152-F02 06 CP
25
PIN, UP/DN
2
152-RA4701
26
NOZZLE
1
152-R1901
27
NOZZLE INSERT
1
152-R700**
29
REVERSE PIVOT PIN
1
152-R5108
30
REVERSE BUCKET PIN
2
152-R3701
31
NYLINER BUSHING 1/2
2
152-B2101
32
SHCS, 5/16-18 X 3/4
2
152-F05 18 06 SH
33
REVERSE BUCKET
1
152-R2101
34
LOCKWASHER, 1/4
4
152-F04 LW
35
HHCS, 1/4-20 X 3/4
4
152-F04 20 06 HH
36
RUDDER
1
152-R2505
37
TILLER BRACKET
1
152-R3401
38
SHCS, 5/16-18 X 1-1/4
2
152-F05 18 10 SH
39
JAMB NUT
1
152-F12 16 JN
40
3/4-16 CABLE ADAPTER
1
152-R9208
